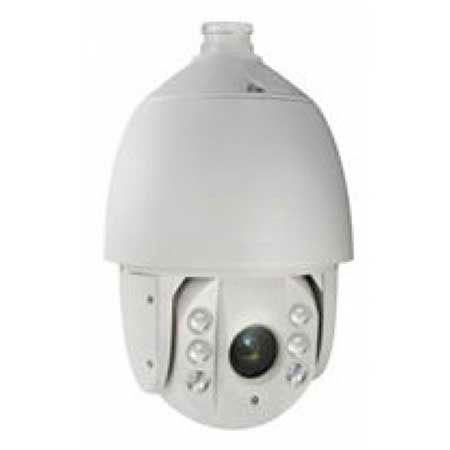

Securitytronix IP-NP302 Outdoor 2MP PTZ IR Dome Camera, 30x Optical Zoom, White
See all Securitytronix items

Securitytronix IP-NP302 Outdoor Day & Night 2MP IP Varifocal PTZ IR Dome Camera, 30x Optical Zoom, 30fps at 60Hz, H.264, MJPEG, High-PoE, White

SKU: STIPNP302I30

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix IP-NP302 Specifications

  • Image Sensor

    1/2.8" Progressive Scan CMOS

  • Effective Pixel

    1920(H)x1080(V)

  • Signal System

    PAL/NTSC

  • Min. Illumination

    Color : 0.05 lux (F1.4, 1/30 sec, 50 IRE, AGC On)
    B/W : 0.01 lux (F1.4, 1/30 sec, 50 IRE, AGC On), 0 lux with IR

  • White Balance

    Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

  • AGC

    Auto/Manual

  • S/N Ratio

    = 52dB

  • BLC

    ON/OFF

  • HLC

    Supported

  • Smart defog

    Supported

  • WDR

    Supported

  • Shutter Speed

    1-1/10,000s

  • Day & Night

    ICR

  • Digital Zoom

    16X

  • Privacy Mask

    2 privacy masks programmable

  • Focus Mode

    Auto / Semi-automatic / Manual

  • Focal Length

    4.3-129mm, 30x

  • Zoom Speed

    Approx.3s(Optical Wide-Tele)

  • Angle of View

    65.1-2.34 degree (Wide-Tele)

  • Min. Working Distance

    10-1,500mm(Wide-Tele)

  • Aperture Range

    F1.6-F5.0

  • Pan range

    360 deg.endless

  • Pan speed

    Pan Manual Speed: 0.1 deg.-160 deg./s

  • Pan Preset Speed

    240 deg./s

  • Tilt range

    -15 deg.-90 deg. (Auto Flip )

  • Tilt speed

    Tilt Manual Speed: 0.1 deg.-120 deg./s

  • Tilt Preset Speed

    200 deg./s

  • Proportional Zoom

    Rotation speed can be adjusted automatically

  • Number of Preset

    300

  • Park action

    Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

  • Patrol

    8 patrols, up to 32 presets per patrol

  • PTZ Position Display

    ON/OFF

  • Freeze Frame

    Supported

  • Alarm

    2 Inputs, 1 output

  • Alarm Actions

    Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage

  • Ethernet

    10Base -T, /100Base-TX, RJ45 Connector

  • Max. Image Resolution

    1920x1080

  • Frame Rate

    50Hz: 25 fps (1920x1080), 25 fps (1280x960) , 25 fps (1280x720)
    60Hz: 30 fps (1920x1080), 30 fps (1280x960)

  • Image Compression

    H.264 / MJPEG

  • ROI encoding

    Supports 2 areas with adjustable levels

  • Audio Compression

    G.711ulaw/G.711alaw/G.726/MP2L2

  • Number of Simultaneous Live View

    Up to 20 users

  • Dual Streams

    Supported

  • Mini SD Memory Card

    Supports up to 128GB Micro SD/SDHC/SDXC card

  • User/Host Level

    Up to 32 users,3 Levels: Administrator, Operator and User

  • Security Measures

    User authentication (ID and PW), host authentication (MAC address)

  • IR Distance

    328' (99.98m), IR irradiation angle adjustable by zoom

  • Power

    24 VAC/Hi-PoE, Power Consumption max. 40W

  • Working Temperature

    -30 to 65 deg. C (-22 to 149 deg. F)

  • Working Humidity

    90% or less (non-condensing)

  • Ingress Protection level

    IP66 standard (outdoor)

  • Dimensions

    8.66 x 13.91" (22.00 x 35.33cm)

  • Weight

    9.92 lbs (4.50kg)

About Securitytronix IP-NP302

• 2MP IP Varifocal PTZ IR Dome Camera
• IP66 weather rating
• ONVIF compatible
• 1/2.8 inch CMOS sensor
• Wide Dynamic Range
• 3D Digital Noise Reduction
• ICR, 30x Optical zoom and 12X digital zoom
• 4.3-129.0mm varifocal len

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix IP-NP302 Outdoor Day & Night 2MP IP Varifocal PTZ IR Dome Camera
  • Power Supply
  • Securitytronix 1 Year Limited Warranty
