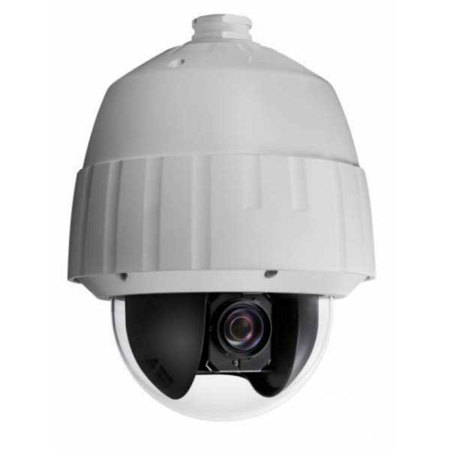

Securitytronix IP-NP302 Outdoor 2MP PTZ Dome Camera, 20x Optical Zoom, White
See all Securitytronix items

Securitytronix IP-NP302 Outdoor Day & Night 2MP IP Varifocal PTZ Dome Camera, 20x Optical Zoom, 30fps at 60Hz, H.264, MJPEG, PoE, White

SKU: STIPNP302OD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix IP-NP302 Specifications

  • Image Sensor

    1/2.8" Progressive Scan CMOS

  • Effective Pixel

    2230K Pixels

  • Min. Illumination

    Color: 0.05Lux at F1.6, AGC On; BW: 0.01Lux at F1.6, AGC On

  • White Balance

    Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

  • AGC

    Auto/Manual

  • S/N Ratio

    >50 dB

  • Digital noise reduction

    3D DNR

  • Backlight compensation

    HLC/BLC

  • Wide Dynamic Range

    Digital WDR

  • Shutter Speed

    1 to 1/100,000 s

  • Day & Night

    IR cut filter

  • Digital Zoom

    16X

  • Privacy Mask

    2 Programmable privacy masks

  • Focus Mode

    Auto/Semiautomatic/Manual

  • Focal Length

    4.7 - 94mm

  • Optical Zoom

    20x

  • Zoom Speed

    Approx 3s (Optical Wide - Tele)

  • Angle of View

    58.3 - 3.2 degree (Wide - Tele)

  • Min. Working Distance

    10 - 1000mm (Wide - Tele)

  • Aperture Range

    F1.6 - F3.5

  • Pan range

    360 deg. endless

  • Pan Manual Speed

    0.1 deg. - 250 deg./s

  • Pan Preset Speed

    300 deg./s

  • Tilt range

    -5 deg. - 90 deg.(Auto Flip)

  • Tilt Manual Speed

    0.1 deg. - 120 deg./s

  • Tilt Preset Speed

    200 deg./s

  • Proportional Zoom

    Rotation speed can be adjusted automatically according to zoom multiples

  • Number of Preset

    256

  • Park action

    Pattern/Pan scan/Tilt scan/Frame scan/ Panorama scan/Random scan

  • Patrol

    8 patrols, up to 32 presets per patrol

  • PTZ position display

    Supported

  • Preset freezing

    Supported

  • Scheduled Task

    Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome reboot/Self-test action/Alarm output

  • Ethernet

    10Base-T / 100Base-TX, RJ45 connector

  • Max. Image Resolution

    1920x1080

  • Main Stream

    50Hz: 25 fps (1920x1080), 25 fps (1280x960)
    60Hz: 30 fps (1920x1080), 30 fps (1280x960)

  • Image Compression

    H.264/MJPEG

  • Audio Compression

    G.711u /G.711a /G.726 /MP2L2

  • Protocols

    IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE

  • Number of Simultaneous Live View

    Up to 6

  • Streams

    Dual streams

  • Mini SD Memory Card

    Micro SD slot, up to 32GB

  • User/Host Level

    Up to 32 users, 3 Levels: Administrator, Operator, User

  • Security Measures

    User authentication (ID & PW), Host authentication (MAC address), IP address filtering

  • RS-485 Protocols

    Pelco-P, Pelco-D, self-adaptive

  • Power

    24 VAC, max. 14W (power supply included)

  • Working Temperature

    -30 to 65 deg. C (-22 to 149 deg. F)

  • Working Humidity

    95% or less (non-condensing)

  • Ingress Protection level

    IP66

  • Dimensions

    8.66 x 12.02" (22.00 x 30.53cm)

  • Weight

    11.02 lbs (5.00kg)

About Securitytronix IP-NP302

• 2MP High Resolution
• 1080p HD Resolution
• 20X Optical zoom, 16X Digital zoom
• True Day/Night
• 3D DNR & DWDR
• IP66 Weather rating
• PoE Compatible
• 3D Intelligent positioning

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix IP-NP302 Outdoor Day & Night 2MP IP Varifocal PTZ Dome Camera
  • Power Supply
  • Securitytronix 1 Year Limited Warranty
