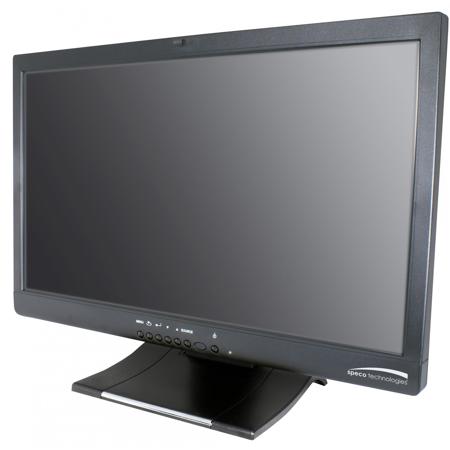

Speco Technologies 19" HD 1080p CCTV LED Monitor
See all Speco Technologies items

Speco Technologies 19" HD 1080p CCTV LED Monitor, 1920 x 1080, HDMI, VGA

SKU: STM19LED
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies 19" Monitor Specifications

  • Screen Size

    19"

  • Composite Out

    1x BNC

  • Composite In

    1x BNC

  • Single Connector

    1x VGA, 2x RCA, 1x PC Audio, 1x HDMI

  • Speaker

    1 + 1W

  • Display Mode

    VGA / BNC / PC / HDMI

  • AC Power

    100 to 240 VAC 50/60Hz

  • Control

    Button: Power / OSD Control / Source

  • Display Resolution

    1920 x 1080

  • Supported Resolutions

    640 x 480 at 60/72/75, 800 x 600 at 56/60/72/75, 1024 x 768 at 60/70/75, 1280 x 1024 at 60/75, 1280 x 720 at 60, 1360 x 768 at 60, 1440 x 900 at 60, 1680 x 1050 at 60, and 1920 x 1080 at 60

  • Display Area (H x V)

    16.13 x 9.07"

  • LCD Panel Type

    TN mode, Normally white

  • Pixel Pitch

    0.24825 (H) x 0.24825 (V)

  • Pixel Format

    1920 x 1080

  • Aspect Ratio

    16:9

  • Color Depth

    16.7 million colors

  • Brightness

    (Central) 290 cd/m2

  • Contrast Ratio

    500:1

  • Viewing Angle

    Left: 85 deg.
    Right: 85 deg.
    Up: 80 deg.
    Down: 80 deg. CR > 10

  • Response Time

    5 ms

  • Input Voltage

    12 VDC

  • Input Signal

    1 Vpp composite video

  • Input Impedance

    75Ohms

  • Output Signal

    1 Vpp +/-0.2 Vpp composite video (auto termination)

  • Scanning System

    NTSC: 525 lines, 60 fps, de-interlace (microprocessor controlled)

  • OSD Control

    HDMI, VGA, Audio, PIP, System

  • OSD Language

    English

  • Picture Adjustment

    Auto

  • Safety

    FCC, CE, RoHS

  • Tilt

    10 to 15 deg.

  • Power Consumption

    20 W (maximum)

  • Operating Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Humidity

    20 to 85%

  • Dimensions (W x H x D)

    17.44 x 13.70 x 2.17" / 442.98 x 347.98 x 55.12mm

  • Weight

    6.2lbs / 2.81kg

  • UPC Code

    030519012843

4 Accessories for Speco Technologies 19" HD 1080p CCTV LED Monitor, 1920 x 1080, HDMI, VGA

  • All Accessories (4)
  • Cables & Adapters (2)
  • Cleaning Accessories (2)
SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
$11.99
Shape 10" Coil SDI Cable with Right Angle BNC 90 Deg. Connectors
Shape 10" Coil SDI Cable with Right Angle BNC 90 Deg. Connectors
$29.92
Giottos Anti-Static Microfiber Cleaning Cloth, 9.8x7.9
Giottos Anti-Static Microfiber Cleaning Cloth, 9.8x7.9
$14.95
Pioneer 88MCC Photo Cleaning Cloth 8 x 8 Microfiber
Pioneer 88MCC Photo Cleaning Cloth 8 x 8 Microfiber
$3.95

About Speco Technologies 19" Monitor

• 19" HD 1080p LED monitor
• Flat-panel LED - backlit LCD
• HDMI, VGA (D-Sub 15 pins) and BNC video inputs
• 1920(H) x 1080(V) HD 1080p resolution
• Built-in speakers
• Convenient front controls for screen programming
• Input signal detection provides easy connection
• 290cd/m2 brightness
• 16:9 display ratio
• 500:1 contrast ratio
• Displays up to 16.7 million colors
• Regulated 12VDC 5.0 amp
• (UL & CSA listed power supply included)
• VESA compatible
• 1 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies 19 " HD 1080p CCTV LED Monitor
  • Power Cord
  • VGA Cord
  • PC Audio Cord
  • Adapter
  • Remote Controller
  • Speco Technologies 1 Year Limited Warranty
