StarTech 3' Mini DisplayPort to DVI Adapter Converter Cable
See all StarTech items

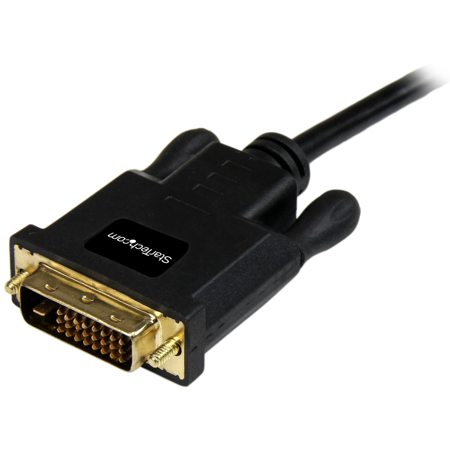

StarTech 3' Mini DisplayPort to DVI Adapter Converter Cable

SKU: STMDP2DVI3B

This item is no longer available.

Recommended Alternatives

StarTech : Picture 1 regular

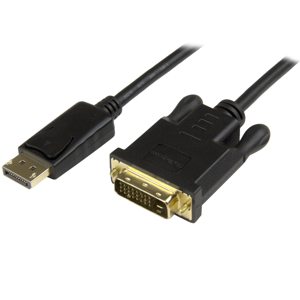

StarTech 3' DisplayPort to DVI Converter Cable
$23.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

StarTech 3' Mini DisplayPort to DVI Adapter Converter Cable Specifications

  • Converter Type

    Passive

  • Adapter Style

    Cable Adapter

  • Chipset ID

    NXP 3361

  • Output Signal

    DVI-D (DVI Digital)

  • Connector A

    1 - Mini-DisplayPort (20 pin) Male

  • Connector B

    1 - DVI-D (25 pin) Male

  • Maximum Cable Length

    3 ' / 0.91m

  • Maximum Digital Resolutions

    1920 x 1200 / 1080p

  • Wide Screen Supported

    Yes

  • System and Cable Requirements

    DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI signal pass-through

  • Operating Temperature

    0 deg.C to 60 deg.C (32 deg.F to 140 deg.F)

  • Storage Temperature

    0 deg.C to 70 deg.C (32 deg.F to 158 deg.F)

  • Humidity

    40%-85%RH

  • Dimensions (L x W x H)

    36.2 x 1.5 x 0.6" / 919.48 x 38.1 x 15.24mm

  • Weight

    2.6oz / 73.71g

  • UPC Code

    065030851527

About StarTech 3' Mini DisplayPort to DVI Adapter Converter Cable

The StarTech 3' Mini DisplayPort to DVI Adapter Converter Cable lets you directly connect your Mini DP video source (Desktop PC, Laptop, Ultrabook, etc.) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor. The adapter cable is 3 feet (1 m) in length and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display device with no additional cabling required. Compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA). It is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

StarTech 3' Mini DisplayPort to DVI Adapter Converter Cable Features

  • Connect a Mini DisplayPort source directly to a DVI monitor or projector, with a single male-male cable
  • Connect your existing DVI display device (monitor, projector) to a Mini DisplayPort output device
  • Ideal for using your DVI monitor as a secondary display
  • 1x Male Mini DisplayPort connector, 1x Male DVI connector
  • Supports resolutions up to 1920x1200 (WUXGA) and HDTV resolutions up to 1080p
  • Compatible with Intel Thunderbolt devices that are capable of outputting a DisplayPort signal

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Connect a Mini DisplayPort source directly to a DVI monitor or projector
  • Connect your existing DVI display device (monitor, projector) to a Mini DisplayPort output device
  • Ideal for using your DVI monitor as a secondary display
  • 1x Male Mini DisplayPort connector, 1x Male DVI connector
  • Supports resolutions up to 1920x1200 (WUXGA) & HDTV resolutions up to 1080p
  • Compatible with Intel Thunderbolt devices that are capable of outputting a DisplayPort signal

What's in the box:

  • StarTech 3' Mini DisplayPort to DVI Adapter Converter Cable
  • StarTech 2 Year Warranty
