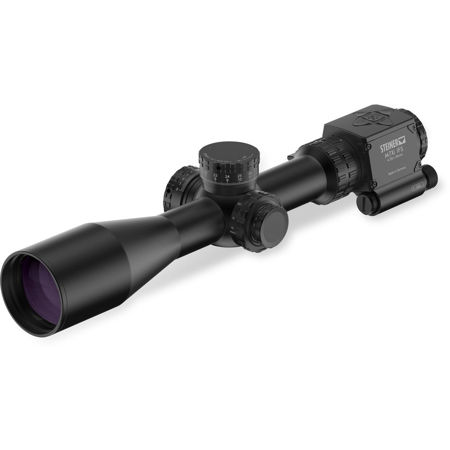

Steiner 4-28x56 M7Xi Series Riflescope, Matte Black with Illuminated First Focal Plane MSR2 Reticle, Parallax Focus, Integrated Ballistics Calculator, 34mm Tube

SKU: STMSR42856 MFR: 8719-MSR2IFS
Earn VIP Reward Points

Key Features

  • Experience unmatched clarity with this Steiner riflescope, featuring a high-definition optical system.
  • Dominate long-range shooting with the M7Xi's 4-28x magnification power for precision targeting.
  • The illuminated MSR2 reticle on this rifle scope ensures rapid target acquisition in any lighting.
  • Built for rugged use, this durable rifle scope is nitrogen-filled and waterproof/fogproof.
  • Achieve pinpoint accuracy with precise windage/elevation adjustments on this top-tier optic.
  • Calculate your shots perfectly with the integrated ballistics calculator on this advanced scope.
See More Product Details
Special Order?Estimated to Ship: 08/28/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-04-19T20:00:00

Rated 1 out of 5

Can't believe I am sending this back 3x

Just beside myself at this point. Nothing I have purchased from Steiner that takes a battery ever works very long. Great glass on this scope but it is now being sent back for the third (or maybe 4th time, I have lost track) for electronics failures. Do yourself a favor and get the version without the IFS. Really anything they make that takes a battery should be avoided. I have sent their pistol TOR Fusion laser/light combos back more than a half a dozen times. Just sent another back last week. Now this. Just unbelievable really. I am at a loss for words at this point.

BDTexas

2022-12-28T19:00:00

Rated 5 out of 5

Intelligent Firing Solution and World Class Optics

I have to two M7Xi iFS 4-28 x 56 scopes with the TREMOR3 reticle. One is mounted in an ERATAC adjustable scope mount and attached to a 50 BMG system. The second is mounted in a SPUHR and attached to a 338LM system. I have used both systems in ELR training and shooting for almost a year now. After my initial outstanding experience with the 50 BMG, I bought the second scope for the 338 LM. I can compare the optical quality directly to European and US top end scopes which I own and use. The optical clarity ranks at the top of the group, period. Edge to edge sharpness and contrast are also at the top, consistent with the pinnacle tier of military scopes. The IFS function has a moderate learning curve, and does take some time to understand all the details - but it is very thorough. The connection applications are not as well documented as I would like, but can be learned very quickly. Some of the functions, such as re-zeroing for traverse are located in the cartridge section - which makes sense once you start to apply offsets for suppressors or different loadings. However, there is no shortcut to ensuring all setup data is accurate and calibrations are performed for the sensors, especially after mounting on a rifle with a canted rail. I have compared the firing solutions to other ballistic solutions and HTI systems - It is FULLY accurate to the ballistic solutions of my other ELR processes. Accurate and precise ballistic solutions require extensive, accurate and verified inputs, again, no shortcuts. I now rely solely on the IFS solution for ELR shooting, along with an external rangefinder and wind measurement. In both scopes, I have the full elevation of 26 - 27 MILS using ~45 MOA of total cant. Once set up, the solutions are very quick to access and execute, much faster than using external ballistic calculator systems. Steiner has brought to market a very unique scope with a very powerful and accurate integrated firing solution. I could not be happier with the scopes. From a military and ELR standpoint, this is really a cutting edge design and implementation. I only wish I had access to the military binoculars to test the bluetooth connection and integration of the laser range finding solution. Very highly recommended.

Volquin

2022-02-10T19:00:00

Rated 5 out of 5

IFS

The Steiner IFS is not for everyone. Like any computer, the info you get out is only as good as what you put in. With accurate inputs the scope works amazing. (Start with the updated 2.53 firmware, get a good zero on the rifle, check your muzzle velocity, get the correct BC for the projectile, shoot one batch of ammo, input data into iPad or phone and sync to scope. I have tested from a 22LR to a 338 Lapua and it's been almost perfect. You dial until the distance on the display matches the actual distance you are shooting to and you are set. Wind is a variable that will never be mastered, but the scope allows you to input a wind direction and speed. (or use zero wind and guess) the elevation component is going to be really accurate. There is an option to add the Kestrel or the 1535 NM binoculars to the system... Hopefully the price will come down over time, so is it worth the extra 8 oz to the scope and the price depends on the customer and their needs. PS. The actual scope functions normally without the IFS and is one of the best in the world. Some of the best light transmission and anti reflective coatings. You can see the the animals in the shade under trees as you look into a setting sun. (Try that with any other brand of scope.) One con besides the added weight is the IFS eats batteries, so bring extra and expect to change them often. Hope this helps.

Texas C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Steiner M7Xi Specifications

  • Magnification

    4-28

  • Reticle

    MSR2 reticle

  • Objective Lens

    56mm

  • Focal Plane

    FFP

  • Tube Diameter

    34mm

  • Field of View at 100 m.

    9-1.42m

  • Eye Relief

    3.54" (90mm)

  • Diopter Adjustment Range

    -2 to +2

  • Wind/Elevation Click Value

    1cm (0.1 mrad)

  • Elevation Range at 100 m.

    250cm/26 mils

  • Wind Range at 100 m.

    60cm

  • Parallax/Focus Range

    50m at low end

  • Nitrogen Filled

    Yes

  • Waterproof/Fogproof

    Yes

  • Battery

    CR2032

  • Length

    15.2" (38.6cm)

  • Weight

    33.5 oz (949.7g)

  • UPC Code

    840229104260

About Steiner M7Xi

FEATURED REVIEWS

IFS

By Texas C.

The Steiner IFS is not for everyone. Like any computer, the info you get out is only as good as what you put in. With accurate inputs the scope works amazing. (Start with the updated 2.53 firmware, get a good zero on the rifle, check your muzzle velocity, get the correct BC for the projectile, shoot one batch of ammo, input data into iPad or phone and sync to scope. I have tested from a 22LR to a 338 Lapua and it's been almost perfect. You dial until the distance on the display matches the ...

View full Review

Intelligent Firing Solution and World Class Optics

By Volquin

I have to two M7Xi iFS 4-28 x 56 scopes with the TREMOR3 reticle. One is mounted in an ERATAC adjustable scope mount and attached to a 50 BMG system. The second is mounted in a SPUHR and attached to a 338LM system. I have used both systems in ELR training and shooting for almost a year now. After my initial outstanding experience with the 50 BMG, I bought the second scope for the 338 LM. I can compare the optical quality directly to European and US top end scopes which I own and use. The op...

View full Review

You can elevate your shooting precision with the M7Xi 4-28x56 Series Riflescope, a top-tier product from Steiner, renowned for its exceptional quality and performance. This riflescope, designed in a sleek matte black finish, is a successor to the globally acclaimed M5Xi, used by Special Forces worldwide.

The M7Xi 4-28x56 is equipped with a 7x zoom and an expansive field of view (1.42-9 m at 100 m), providing a high-resolution view at all distances. This feature, coupled with the riflescope's superior optical quality, ensures a comprehensive overview of your surroundings at all times.

This riflescope is engineered to withstand the harshest conditions, making it a reliable companion for any shooting expedition. Its compact design allows for more rail space for clip-on devices such as thermal imaging or night vision devices, enhancing its operational capabilities. The low-profile turrets contribute to its streamlined design while offering additional mounting options for accessories.

The M7Xi 4-28x56 is built with a one-piece 34mm tube, enhancing its strength and reliability while providing greater elevation and windage adjustments for longer ranges. Its precise windage/elevation adjustment feature ensures repeated accuracy with tactile, click-by-click feedback that you can both hear and feel.

This riflescope comes with an illuminated first focal plane MSR2 reticle, which has been meticulously designed and tested for optimized usability. The MSR2 reticle can be used at very low magnification powers starting from 3...5x for spotting and general observing, and at midrange magnifications from 10...15x for traditional shooting. At magnifications above 25x, the reticle's illuminated center cross, equipped with 0.2mrad deviation hashmarks in the horizontal axis, provides precise aiming at even the smallest and most distant target.

The M7Xi 4-28x56 Series Riflescope is a testament to Steiner's commitment to delivering rugged, reliable, and high-performance optics. Whether you're a professional shooter or a hobbyist, this riflescope is designed to enhance your shooting accuracy and experience.

Steiner M7Xi Features

  • MSR2 IFS Reticle Features
  • Proven MSR look and feel - with more features
  • Optimized functionality out to ultra-long shooting distances
  • Aiming usability starting from the lowest magnification and very close ranges. Heavy bar scaling offer close-range aiming reference
  • Clear traditional feel in midrange 10...15x magnifications. Details needed for finest precision available in 20x and above
  • Numbered bars and hashmarks for general observing down to very lowest magnifications: scale in both horizontal and vertical axis
  • Center cross area optimized to highest magnification powers - center cross hashmarks and dot offer precision without distraction
  • Modern FFP scope large variation of apparent reticle size exploited: a truly functional multipurpose reticle trough whole magnification range

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Experience unmatched clarity with this Steiner riflescope, featuring a high-definition optical system.
  • Dominate long-range shooting with the M7Xi's 4-28x magnification power for precision targeting.
  • The illuminated MSR2 reticle on this rifle scope ensures rapid target acquisition in any lighting.
  • Built for rugged use, this durable rifle scope is nitrogen-filled and waterproof/fogproof.
  • Achieve pinpoint accuracy with precise windage/elevation adjustments on this top-tier optic.
  • Calculate your shots perfectly with the integrated ballistics calculator on this advanced scope.

What's in the box:

  • M7Xi 4-28x56 Riflescope with MSR2 IFS Reticle (Matte Black)
  • Eyepiece Cap
  • Objective Lens Cap
  • AA Battery
  • CR2032 Battery
  • Steiner Lifetime Limited Warranty
