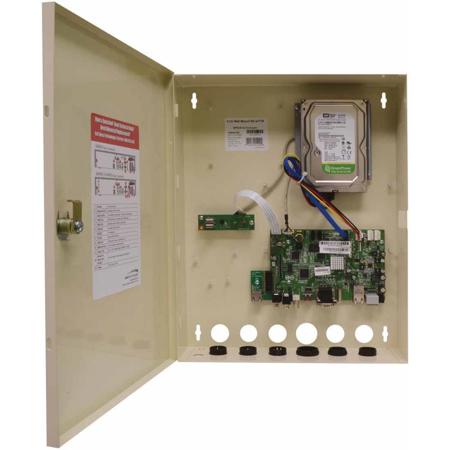

Speco Technologies NS Series 16 Channel H.264 1080p Plug & Play Wall Mount NVR with 3TB HDD, Digital Deterrent

SKU: STN16WNS3TB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Speco Technologies N16WNS Specifications

  • Video: Input IP Channel

    16

  • Video: Video Loss Check

    Yes

  • Video: HDMI Output

    1920x1080, 1280x720

  • Video: VGA Output

    1920x1080, 1280x720

  • Video: CVBS Output

    1x Main

  • Audio: Input

    16 line input, 16 IP input

  • Audio: Output

    1 line output

  • Audio: Codec

    G.711

  • Alarm: Sensor Input

    4 local, 16 IP (NC/NO Selectable)

  • Alarm Output

    1

  • Serial Interface

    1x RS-485
    1x PTZ

  • Recording Compression

    H.264 (baseline, main, high profile)

  • Multi-Operation

    Quadplex (play, record, network, backup)

  • Recording Resolution

    1920x1080: 480fps
    1280x720: 480fps

  • Recording Mode

    Continuous / Schedule / Motion / Sensor / Manual / Continuous + Sensor / Continuous + Motion

  • Motion Detection

    Motion detection configured via IP camera

  • Recording by Channel's Resolution

    Yes

  • Pre-Recording

    Max. 20 minutes

  • Post Recording

    Max. 60 seconds

  • Playback: Multi-Decoding

    1, 4, 9, 16

  • Playback: Search Mode

    EZ Search, Date/Time, Event, Archive and Log

  • Interface Type

    Serial ATA

  • Capacity of 1 HDD

    4TB

  • Internal HDD Number

    3

  • e-SATA

    1

  • Preinstalled HDD

    3TB

  • Backup: USB Flash Drive

    Video & Still Image

  • Backup: USB External HDD

    Video & Still Image

  • Backup: Network

    Video & Still Image

  • USB Port

    3

  • User I/F: Menu Display

    GUI

  • User I/F: Input Method

    IR Mouse, Keyboard Controller

  • Network: Interface

    10/100/1000 base-TX ethernet

  • Network: Streaming

    Depends on profile

  • Network: IP Camera Throughput

    40 Mbps

  • Mobile Viewer

    Live, Search, PTZ, 2-Way Audio

  • PC Web Viewer

    Internet Explorer, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup)

  • PC Client

    SpecoTech Multi-Client Viewer and SecureGuard CMS (Live, Search, Backup, PTZ, Remote Setup)

  • MAC Client

    Speco Client for MAC and SecureGuard CMS (Live, Search, Backup, PTZ, Remote Setup)

  • Digital Deterrent

    Default + up to 8 custom audio files

  • Digital Zoom

    Yes

  • DLS (Daylight Savings)

    Yes

  • EZ Record

    Yes

  • S.M.A.R.T

    Yes

  • Internal Beep

    Yes

  • Multi-Language

    English / French / Spanish

  • Dynamic DNS

    Yes (free Speco DDNS)

  • SW Upgrade

    USB and remote software upgrade

  • NTP (Network Time Protocol)

    Yes

  • PoE Standard

    All ch. 802.3af

  • Total PoE Budget

    8 Ch. 96W

  • Power Supply Voltage

    12VDC, 5A

  • Allowable Operating Temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • Allowable Storage Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Allowable Operating Humidity

    20 - 80% RH

  • Dimensions (W x H x D)

    13.5 x 17 x 3.5" / 342.90 x 431.80 x 88.90mm

  • UPC Code

    030519012706

About Speco Technologies N16WNS

EZ Wizards:
• Camera: quickly discovers and installs IP cameras
• Setup: for quick system setup
• Network: network setup and portforwarding
• Record: quickly setup recording resolutions and recording type

EZ Search:
• Quickly search events from thumbnails

EZ Copy:
• Auto copy what you are playing onto a USB flash drive

• Video Out: 1 HDMI, 1 VGA, 1 CVBS
• 16 channel NVR supports up to 5MP resolution on channel 1
• Plug & play feature with Speco's OnSIP/VIP/ZIP cameras
• ONVIF support
• Dual network ports for isolating IP camera network and remote network traffic
• Supports all H.264 compression profiles (baseline, main and high)
• A patented NVR solution that easily mounts in equipment closets or electrical rooms for covert installations
• Network video recorder with free Speco DDNS server
• Digital Deterrent for triggering audio message via motion detection or sensor
• 2-way audio communication
• Full HD (1920 x 1080) recording and playback
• Supports wireless access point for viewing and configuration
• Built-in S.M.A.R.T. Technology (Self-Monitoring, Analysis and Reporting Technology for HDD)
• Switch between low and high quality stream during simultaneous Continuous + Motion or Continuous + Sensor recording modes for storage optimization
• 16 channel selectable local or IP camera audio recording
• Easy firmware upgrade by USB port or network
• Remote monitoring / recording / playback / configuration / software upgrades and PTZ control via internet
• Supports multiple PC based browsers such as Internet Explorer, Google Chrome, Firefox and Safari
• Network accessible via SpecoTech Multi-Client Software, SecureGuard CMS and Speco Player Mobile Viewer
• PC and MAC compatible
• 3 year warranty

What's in the box:

  • Speco Technologies NS Series 16 Channel H.264 1080p Plug & Play Wall Mount NVR with 3TB HDD
  • IR Remote Control
  • 1.5V Battery (AAA x 2 EA)
  • Quick Setup Guide
  • User Guide
  • Software & Manual CD
  • 2x Rack Mounts
  • 6x Screws
  • Power Adaptor (DC12V 5A)
  • Power Adaptor (DC48V 2A for POE)
  • Power Cable (110V or 220V)
  • Speco Technologies 3 Year Limited Warranty
