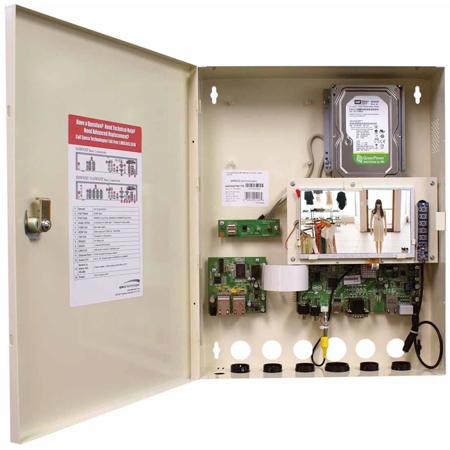

Speco Technologies NS Series 8 Channel H.264 1080p Plug & Play Wall Mount NVR with Built-In Power Supply, Monitor and 6TB HDD, Digital Deterrent

SKU: STN8WNSPM6TB

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Speco Technologies N8WNSPM Specifications

  • Video: Input IPCH

    8

  • Video: Loss Check

    Yes

  • Video: HDMI Output

    1920x1080, 1280x720

  • Video: VGA Output

    1920x1080, 1280x720

  • Video: CVBS Output

    Main

  • Audio: Input

    8 line input, 8 IP input

  • Audio: Output

    1 line output

  • Audio: Codec

    G.711

  • Alarm: Sensor Input (NC/NO Selectable)

    4 local, 8 IP

  • Alarm Output

    1

  • Serial Interface

    1x RS-485
    1x PTZ

  • Recording Compression

    H.264 (baseline, main, high profile)

  • Recording: Multi-Operation

    Quadplex (play, record, network, backup)

  • Recording Resolution

    1920x1080: 240fps
    1280x720: 240fps

  • Recording Mode

    Continuous / Schedule / Motion / Sensor / Manual / Continuous + Sensor / Continuous + Motion

  • Recording Motion Detection

    Motion detection configured via IP camera

  • Recording byCH's Resolution

    Yes

  • Pre-Recording

    Max. 20 minutes

  • Post Recording

    Max. 60 seconds

  • Playback: Multi-Decoding

    1, 4, 8

  • Playback: Search Mode

    EZ Search, Date/Time, Event, Archive and Log

  • Interface Type

    Serial ATA

  • Capacity of 1 HDD

    4TB

  • Internal HDD Number

    3

  • e-SATA

    1

  • Preinstalled HDD

    6TB

  • Backup: USB Flash Drive

    Video & Still Image

  • Backup: USB External HDD

    Video & Still Image

  • Backup: Network

    Video & Still Image

  • USB Port

    3

  • User I/F: Menu Display

    GUI

  • User I/F: Input Method

    IR Mouse, Keyboard Controller

  • Network: Interface

    10/100/1000 base-TX ethernet

  • Network: Streaming

    Depends on profile

  • Network: IP Camera Throughput

    40Mbps

  • Mobile Viewer

    Live, Search, PTZ, 2-Way Audio

  • PC Web Viewer

    Internet Explorer, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup)

  • PC Client

    SpecoTech Multi-Client Viewer and SecureGuard CMS (Live, Search, Backup, PTZ, Remote Setup)

  • MAC Client

    Speco Client for MAC and SecureGuard CMS (Live, Search, Backup, PTZ, Remote Setup)

  • Digital Deterrent

    Default + up to 8 custom audio files

  • Digital Zoom

    Yes

  • DLS (Daylight Savings)

    Yes

  • EZ Record

    Yes

  • S.M.A.R.T

    Yes

  • Internal Beep

    Yes

  • Multi-Language

    English / French / Spanish

  • Dynamic DNS

    Yes (free Speco DDNS)

  • SW Upgrade

    USB and remote software upgrade

  • NTP (Network Time Protocol)

    Yes

  • PoE Standard

    All ch. 802.3af

  • Total PoE Budget

    8 Ch. 96W

  • Power Supply Voltage

    12VDC, 5A/48VDC, 1A

  • Allowable Operating Temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • Allowable Storage Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Allowable Operating Humidity

    20 - 80% RH

  • Dimensions (W x H x D)

    13.5 x 17 x 3.5" / 342.90 x 431.80 x 88.90mm

  • UPC Code

    030519012249

About Speco Technologies N8WNSPM

EZ Wizards:
• Camera: Quickly discovers and installs IP cameras
• Setup: For quick system setup
• Network: Network setup and port forwarding
• Record: Quickly setup recording resolutions and recording type

EZ Search:
Quickly search events from thumbnails

EZ Copy:
Auto copy what you are playing onto a USB flash drive

• Video Out: 1 HDMI, 1 VGA, 1 CVBS
• 8CH NVR supports up to 5MP resolution on CH 1
• Plug & play feature with Speco's OnSIP/VIP/ZIP cameras
• ONVIF support
• Dual network ports for isolating IP camera network and remote network traffic
• Supports all H.264 compression profiles (baseline, main and high)
• A patented NVR solution that easily mounts in equipment closets or electrical rooms for covert installations
• Network video recorder with free Speco DDNS server
• Digital Deterrent for triggering audio message via motion detection or sensor
• 2-way audio communication
• Full HD (1920 x 1080) recording and playback
• Supports wireless access point for viewing and configuration
• Built-in S.M.A.R.T. Technology (Self-Monitoring, Analysis and Reporting Technology for HDD)
• Switch between low and high quality stream during simultaneous Continuous + Motion or Continuous + Sensor recording modes for storage optimization
• 8CH selectable local or IP camera audio recording
• Easy firmware upgrade by USB port or network
• Remote monitoring / recording / playback / configuration / software upgrades and PTZ control via internet
• Supports multiple PC based browsers such as Internet Explorer, Google Chrome, Firefox and Safari
• Network accessible via SpecoTech Multi-Client Software, SecureGuard CMS and Speco Player Mobile Viewer
• PC and MAC compatible
• 3 year warranty

What's in the box:

  • Speco Technologies NS Series 8 Channel H.264 1080p Plug & Play Wall Mount NVR with Built-In Power Supply / Monitor and 6TB HDD
  • Mounting Hardware
  • IR Remote Control
  • Speco Technologies 3 Year Limited Warranty
