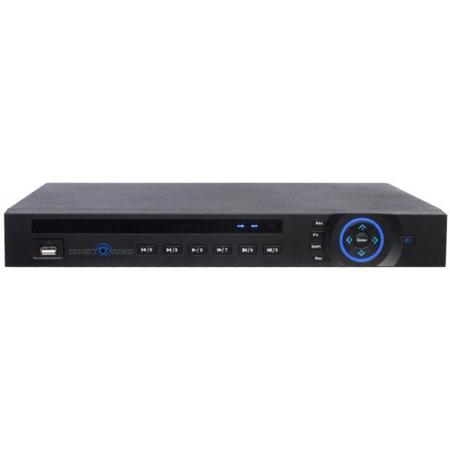

Securitytronix Industry Series 4CH Stand Alone NVR, No HDD
See all Securitytronix items

Securitytronix Industry Series 4CH Stand Alone NVR, Up to 5MP Preview & Playback, Two-Way Talk, H.264, MJPEG, No HDD

SKU: STNVR4CHI

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Securitytronix ST-NVR4CH-I Specifications

  • System Main Processor

    Dual-Core embedded processor

  • Operating System

    Embedded LINUX

  • Video: IP Camera Input

    4 Channel

  • Video: Two-way Talk

    1 Channel Input, 1 Channel Output, RCA

  • Display: Interface

    1 HDMI, 1 VGA

  • Display: Resolution

    1920x1080, 1280x1024, 1280x720, 1024x768

  • Display: Split

    1/4

  • Display: OSD

    Camera title, Time, Video loss, Camera lock, Motion detection, Recording

  • Recording: Compression

    H.264, MJPEG

  • Recording: Resolution

    5Mp(2560x1920)
    3Mp(2048x1536)
    1080P(1920x1080)
    720P(1280x720)
    D1(704x576/704x480)&etc.

  • Recording: Rate

    200Mbps

  • Recording: Bit Rate

    48 to 8192kbps

  • Recording: Mode

    Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

  • Recording: Interval

    1 to 120min (default: 60min)
    Pre-record: 1 to 30sec
    Post-record: 10 to 300sec

  • Trigger Events

    Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips

  • Video Detection

    Motion Detection, MD Zones: 396(22x18), Video Loss & Camera Blank

  • Alarm Input

    4 Channel

  • Relay Output

    2 Channel

  • Sync Playback

    1/4

  • Search Mode

    Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

  • Playback Function

    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

  • Backup Mode

    USB Device/Network/Internal SATA burner

  • Network: Ethernet

    1 RJ-45 port (10/100/1000Mbps)

  • Network: Function

    P2P,HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support IP camera, DVR, NVS and etc.)

  • Network: Max. User Access

    128 Users

  • Network: Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Storage: Internal HDD

    2 SATA ports, up to 8TB, Raid (redundancy)

  • Interface: USB

    2 Ports (1 rear USB3.0, 1 Front USB2.0)

  • Interface: RS232

    1 Port, for PC communication & keyboard

  • Interface: RS485

    1 Port, for PTZ control

  • Power Supply

    DC12V/4A

  • Power Consumption

    20W (without HDD)

  • Working Environment

    14 to 130 deg. F / -10 to 54.44 deg. C
    10 to 90%RH / 86 to 106kpa

  • Rack Height

    1U

  • Dimensions (W x D x H)

    14.75 x 11.25 x 2" / 374.65 x 285.75 x 50.8mm

  • Weight

    4.5lbs / 2.04kg (without HDD)

1 Accessories for Securitytronix Industry Series 4CH Stand Alone NVR, Up to 5MP Preview & Playback, Two-Way Talk, H.264, MJPEG, No HDD

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Securitytronix ST-NVR4CH-I

The Securitytronix ST-NVR4CH-I Industry Series Embedded Digital Video Recorder is an excellent digital surveillance product which adopts H.264 video compression, hard disk recording, TCP/IP transmission and a Linux based OS in addition to some of the more advanced technologies in the information technology industry.

These units enable a stable, reliable and high picture quality while supporting synchronized video and audio recording, playback and monitoring. This series also supports network based system control, as well as excellent network streaming capabilities. The ST-NVR4CH-I series is also P2P enabled, providing easy remote access with just a QR code. P2P Functionality enables a quick and secure remote connection to client devices including PC's smart phones and tablets.

Securitytronix ST-NVR4CH-I Features

  • Up to 4 channels with 1080P realtime live viewing
  • H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 5Mp resolution preview & playback
  • HDMI/VGA simultaneous video output
  • 4/8/16 channel synchronous realtime playback, GRID interface
  • ONVIF Version 2.3 conformance
  • Supports 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)
  • Plug & play connectivity with Securitytronix Eye View Series IP Cameras
  • Utilizes cloud connect for an effortless remote connection to various client devices
  • Compatible with EVS (Eye View Smart) software packages
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS, SPSS

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 4/8/16 channel synchronous realtime playback, GRID interface
  • H.264/MJPEG dual codec decoding
  • HDMI/VGA simultaneous video output
  • Max 200Mbps incoming bandwidth
  • ONVIF Version 2.3 conformance
  • Supports 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)

What's in the box:

  • Securitytronix Industry Series 4CH Stand Alone NVR
  • USB Mouse
  • 12VDC Power Supply
  • Securitytronix 2 Year Limited Warranty
