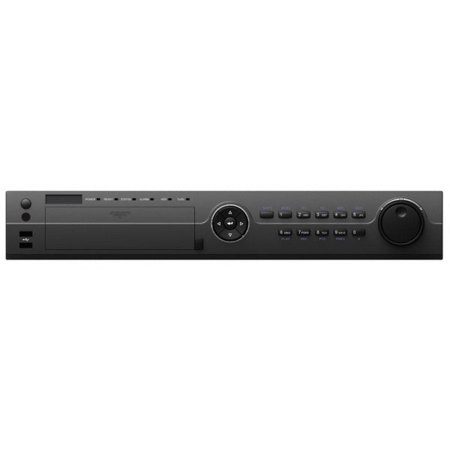

Securitytronix 32 Channel NVR with 16 PoE Ports, No HDD
See all Securitytronix items

Securitytronix 32 Channel NVR with 16 PoE Ports, Up to 12MP Recording Resolution, H.265, H.264, MPEG4, No HDD

SKU: STNVRN51P632

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix NVR-NR51P6 Specifications

  • IP video input

    32-ch, Up to 12 MP resolution

  • Two-way audio

    1 ch, RCA (2.0 Vp p, 1kOhms)

  • Incoming bandwidth

    256 Mbps

  • Outgoing bandwidth

    256 Mbps

  • Remote connection

    128

  • Recording resolution

    12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • HDMI output resolution

    4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/ 30Hz, 1920 x 1080p/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

  • VGA output resolution

    1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

  • Audio output

    1 ch, RCA (Linear, 1 KOhms)

  • Decoding format

    H.265/H.264/MPEG4

  • Live View/Playback Resolution

    12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/ 1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

  • Synchronous playback

    16-ch

  • Capability

    4-ch at 4K, or 16-ch at 1080p

  • SATA 4

    SATA interfaces for 4HDDs

  • eSATA (optional)

    1 eSATA interface

  • Internal HDD

    Up to 24TB HDD total capacity

  • Network interface

    1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

  • Serial interface

    1 RS-485 (half-duplex), 1 RS-232

  • USB interface

    Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0

  • Alarm in/out

    16/4

  • POE Interface

    16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

  • PoE Power

    <=200W

  • PoE Supported standard

    IEEE 802.3 af/at

  • Power supply

    100 to 240 VAC

  • Power

    <=300 W

  • Consumption (without hard disk)

    <=20 W (without enabling PoE)

  • Working Temperature

    -10 to 55 deg. C (14 to 131 deg. F)

  • Working humidity

    10 to 90 %

  • Chassis

    19-inch rack-mounted 1.5U chassis

  • Dimensions (WxDxH)

    17.5 x 11.4 x 1.8" (44.45 x 28.96 x 4.57cm)

  • Weight

    11 lbs (4.99kg) (without HDD)

1 Accessories for Securitytronix 32 Channel NVR with 16 PoE Ports, Up to 12MP Recording Resolution, H.265, H.264, MPEG4, No HDD

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Securitytronix NVR-NR51P6

Professional and Reliable
• Dual-OS design to ensure high reliability of system running
• ANR technology to enhance the storage reliability when the network is disconnected

HD Input
• H.265/H.264/MPEG4 video formats
• Connectable to the third-party network cameras
• Up to 32 IP cameras can be connected
• Recording at up to 12 MP resolution
• Supports live view, storage and playback of the connected camera at up to 12 MP resolution

HD Output
• HDMI and VGA outputs provided
• HDMI Video output at up to 4K (3840 x 2160) resolution

HD Storage
• Up to 4 SATA interfaces connectable for recording and backup
• Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format

HD Transmission
• 1 self-adaptive 10M/100M/1000M network interface
• 16 independent PoE network interfaces are provided

Various Applications
• Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
• Connectable to smart IP cameras and the recording, playing back and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Instant playback for assigned channel during multi-channel display mode
• Smart search for the selected area in the video; and smart playback to improve the playback efficiency
• Supports HDD quota and group modes; different capacity can be assigned to different channels
