Speco Technologies O4D1 4MP Day & Night Outdoor Network IP Dome Camera
See all Speco Technologies items

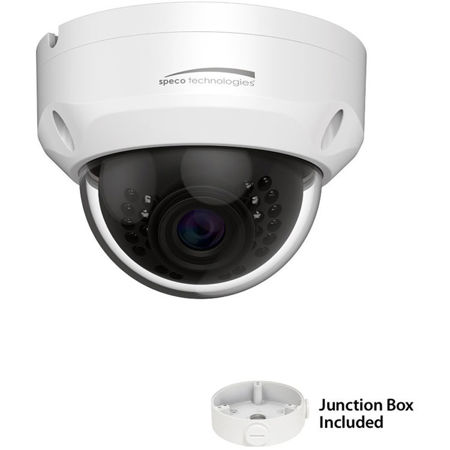

Speco Technologies O4D1 4MP Day & Night Outdoor Network IP Dome Camera with Junction Box, 2.8mm Fixed Lens, 2688x1520 at 30fps, 98' Night Vision, H.264, MJPEG, PoE, IP67, IK10

SKU: STO4D1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies O4D1 Specifications

Camera

Camera

Jump to...

  • Image Sensor

    Progressive scan 1/3" CMOS, 4MP

  • Maximum Resolution

    2688 x 1520

  • Minimum Illumination

    F2.0, 0.08 lux color; 0 lux (IR LED on)

  • IR Range

    98' (29.87m) (depending on scene reflection)

  • White Balance

    Auto / Presets / Manual

  • Compensation

    WDR (120dB)/BLC/HLC

  • Day/Night

    IR cut filter

  • Exposure Control

    Digital slow shutter

  • Electronic Shutter Speed

    1/3 - 1/100000 sec

  • DNR

    3D

Video

Jump to...

  • Supported Resolutions

    2688x1520 / 2560 x 1440 / 1920x1080 / 1280x720 at 30fps

  • Compression

    H.264, MJPEG

  • Bitrate Control

    VBR, CBR

  • Multiple Streaming

    3 streams

Audio

Jump to...

  • Mono Input

    G.711

  • Mono Output

    G.711

External Terminal

Jump to...

  • Ethernet

    10/100 Mbps

  • Alarm

    1 sensor input, 1 relay output

  • Audio

    1 mic in, 1 line out (RCA)

  • Storage

    Micro SD slot (128GB max)

  • Power

    DC jack

Network

Jump to...

  • Protocols

    IPv4, IPv6, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, SMTP, SNMP, UPnP, FTP, DHCP, Bonjour, QoS, 802.1x

  • DDNS support

    Speco DDNS (free of charge)

  • Security

    User ID & Password protection, IP address filtering

  • User Access

    20 simultaneous users (performance may vary depending on resolution and number of connections)

System

Jump to...

  • PoE

    Standard (IEEE 802.3af)

  • Analytics

    Motion detection, audio detection, face detection

  • Alarm Triggers

    Analytics, network loss, sensor input

  • Alarm Events

    FTP video/image file upload, email image upload, micro SD card recording, relay out

  • Video Buffer

    Configurable pre-record & post-record

Client

Jump to...

  • Web Browser Support

    Windows (Internet Explorer 11)

  • PC Application

    SecureGuard

  • Mobile

    SecureGuard Mobile (iPhone and Android)

Operating

Jump to...

  • Power

    PoE, 12VDC (power supply not included)

  • Power Consumption

    5W max

  • Operating Temperature

    -22 to 140 deg. F (-30 to 60 deg. C)

  • Operating Humidity

    0% - 95% RH

General

Jump to...

  • Certifications

    FCC, RoHS, UL

  • Dimensions (HxDia.)

    3.2 x 4.3" (8.13 x 10.92cm)

  • Weight

    1 lbs (0.45kg)

Other

Jump to...

  • UPC Code

    030519021319

About Speco Technologies O4D1

• Supports up to 4MP at 30fps in 16:9 widescreen format
• Built-in standard PoE (IEEE 802.3af)
• Adaptive IR LEDs reduce IR saturation
• IR Range: 98' (depending on scene reflection)
• True Day/Night operation (IR cut filter)
• True WDR (wide dynamic range) operation
• 2-way audio communication
• Micro SD card slot for edge recording (card not included)
• Sensor input and relay output
• IP67 compliant, weather resistant
• IK10 compliant, vandal resistant
• Junction box included
• UL listed
• Conformant with ONVIF Profile S
• 5 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies O4D1 4MP Day & Night Outdoor Network IP Dome Camera
  • O2VLJBD Junction Box
  • Speco Technologies 5 Year Warranty
