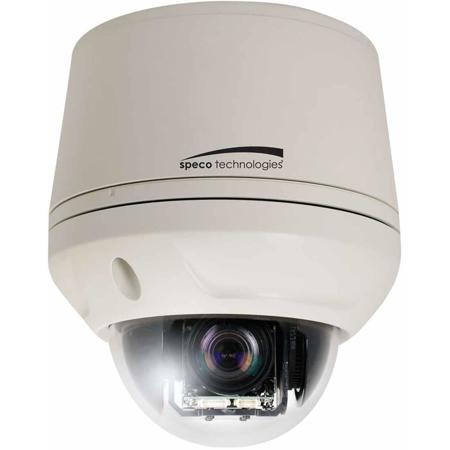

OPTZ33D5W, as a state-of-the-art Speed Dome Network Camera based on integrated Embedded Software technologies such as H.264 & MJPEG, G.726 & PCM Video & Audio Compression, Embedded Web Server, Embedded Streaming Server, various Network Protocols, transmits synchronized video and audio data in real time with D1 resolution at full frame rate through IP Network as well as supports bi-directional audio communication by allowing transmission of audio from Client PC to OPTZ33D5W. OPTZ33D5W, with completed Integration with analog CCTV camera, Digital and network technology, is applicable for various sectors such as Security, Remote Monitoring, Remote Education, Simple Video Conference as well as Internet Broadcasting System
• High Image Quality with outstanding H.264 Video Compression technology
• D1 Resolution at Max 30 FPS(NTSC) and Max 25 FPS(PAL)
• Full D1 Resolution with De-Interlaced Filer
• Simultaneous transmission of 1 Ch Video/Audio Data via 1 Communication Channel
• Intelligent Bit Rate Control against flexible Network Configuration
• Embedded Streaming Server and Embedded Web Server
• RoHS
• Filter Changeable(ICR) for Day(Color) & Night(B/W)
• IP66
• 12x Zoom (12x Optical, 16x Digital)
• 360deg. endless rotation
• Software Controller
• Clear Image with 530TV Lines(B/W:580TV Lines)
• SDNR for clear identification under low illumination
• PAN / TILT Speed with Max 250deg. /Sec
• Various Network Protocol
• 2x Alarm Sensor Inputs / 1x Relay Output
• Remote Administration
• 3.94-46.05mm 12x optical zoom lens
• Supports up to D1 resolution at 30fps
• 2-way audio communication
• ONVIF Profile S listed
• Multiple language support
12x Zoom Mini Speed Dome
12x Optical Zoom with 16x digital zoom.
+/- 0.02deg. dome system accuracy with 1/4 micro step
By adopting 1/4 micro step and twin gear system, the dome camera achieved 0.1deg. rotational accuracy. It provides excellent precision for delicate control such as preset positions.
Preset position compensation
It minimizes the effect of low frequency vibration caused by wind or other impact for maintaining precise positioning. It is useful for outdoor surveillance and traffic monitoring applications.
Polarity Protection of Power (DC12V)
This protection function prevents the power board from being out and trouble when power source falsely connects to the power terminals
Protected RS485 terminals. (Against misconnection of the power line)
RS-485 circuit is protected against false connection of the power source for ensured communication channel.
Filter changeable True Day/Night (ICR Block Filter)
Automatic IR cut filter ensures near-true color video for day time while providing quality B/W video under low illumination. The efficiency of the monitoring can be improved by using this feature used together with DSS (Digital Slow Shutter).
Indoor / Outdoor applications
Aluminum case and PC cover (IP66)
Elegantly designed aluminum body and Poly Carbonated dome cover provide weather proof environment to the internal modules. (IP66 Rated)
Hot Keys
This camera supports various hot key functions for ease of control by other controllers or DVRs.
Various Surveillance Functions
Auto Scan
Continuously repeats movement between two preset positions with various speed and dwell time.
8 Group Tour
Up to 8 Programmable Group tours are supported. Each group can be configured to have up to 60 preset positions with different speed and dwell time.
165 Preset positions
Up to 165 programmable preset positions. Each preset position can be labeled by up to 16 characters.
8 Patterns
Up to 8 user-defined patterns. Each pattern can last up to 60 seconds and can be named with up to 16 characters. Total of 480 second of pattern monitoring is possible.
8 Sectors
Up to 8 user-defined sectors. Each sector can be labeled by up to 16 characters.
4 Privacy Masking Zones
Up to 4 user-defined privacy masking zone. Each zone can be labeled by up to 16 characters
2 Alarm input and 1 relay out
2 alarm inputs and 1 relay outputs that can be matched with preset, tours and patterns for versatile monitoring functions.
High speed Pan & Tilt movement
Maximum speed for the panning and tilting are 350 deg. /sec and 250 deg. /sec, respectively, for preset movement. The high speed will enable quick movement to the spot you want to watch.
150deg. /S - Manual Operation speed
This camera provides up to 150 deg. /sec of manual speed and it's adjustable from 100 deg. /sec to 150 deg. /sec.
1/4" Sony Super HAD CCD
Sony Super HAD CCD for excellent sensitivity and low smear levels.
Intelligent Pan/Tilt Controlling
Pan and tilt speed is adjusted in connection with zoom factor.
