Securitytronix 24VAC 5A 9-Port Camera Power Supply with IEC 3-pin AC Cord, Beige
See all Securitytronix items

Securitytronix 24VAC 5A 9-Port Camera Power Supply with IEC 3-pin AC Cord, Beige

SKU: STP924ACPTC

This item is no longer available.

Recommended Alternatives

Securitytronix Power Distribution Box: Picture 1 regular
Securitytronix 12VDC 10A 18-Port Camera Power Supply with IEC 3-pin Cord, Beige
$70.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix Power Distribution Box Specifications

  • Input Voltage

    100VAC-240VAC, 60Hz or 50Hz

  • Output Voltage

    AC24V at 5A

  • Main Fuse (PTC)

    5A/250VAC PTC

  • 4 Individual Fuses (PTC)

    1.1A/250VAC PTC

  • Input LED - Green Color

    ON = Supply Normal, OFF = Power Failure

  • Input Connector

    IEC 3-pin AC cord

  • Output Connectors

    18 Screw Terminals (2 screws x 9)

  • Finish

    Beige powder coat over steel chassis

  • Dimensions (WxHxD)

    8.25 x 9.75 x 3.5" (20.96 x 24.77 x 8.89cm)

  • Weight

    6.9 lbs (3.13kg)

About Securitytronix Power Distribution Box

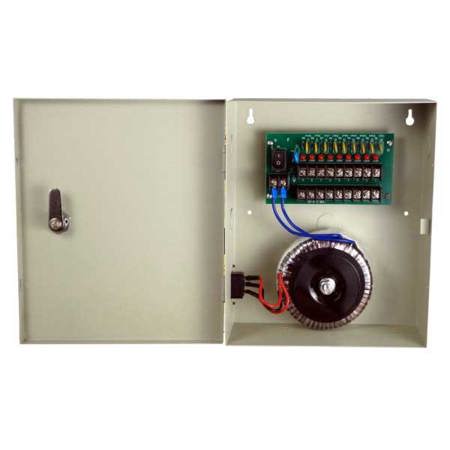

The ST-PBX9-24AC-PTC is a professional grade power distribution box designed to meet the needs of the security industry. The unit provides a total of 24VAC at 5 amps to 9 distribution ports. It includes individual 'power on' status LED per channel, individual port protected PTC-type output fuses and a large, toroidal AC transformer for high efficiency and low temperature operation.

Securitytronix Power Distribution Box Features

  • 9 Camera outputs
  • 9 Individual PTC fuses for protection against over voltage/over current
  • 9 Individual status LEDs
  • Each output is limited to 1.1A Max
  • CE, FCC, RoHs

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix 24VAC 5A 9-Port Camera Power Supply
  • AC Power Cord
  • Accessories Bag with 2x Keys and Wall Mounting Hardware
  • Instruction Manual
  • Securitytronix 1 Year Limited Warranty
