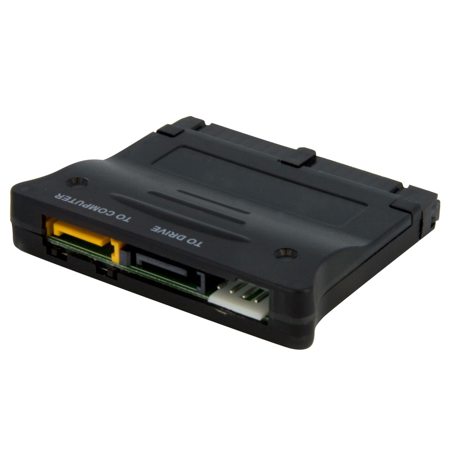

StarTech Bi-Directional SATA IDE Adapter Converter

SKU: STPATA2SATA3 MFR: PATA2SATA3
$34.99
Earn VIP Reward Points

Key Features

  • Easily convert your IDE hard drive to SATA for modern systems, maximizing compatibility.
  • Use this bi-directional adapter to connect a SATA drive to an older IDE interface.
  • Compact & lightweight, this SATA IDE adapter is perfect for on-the-go data transfers.
  • Achieve transfer speeds up to 1.5 Gbps with this SATA I adapter for efficient data access.
  • This hard drive adapter supports both 2.5in & 3.5in drives, offering versatile use.
  • No drivers needed! This adapter ensures OS independent operation for quick setup.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$5.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-01-21T19:00:00

Rated 5 out of 5

Works as advertised.

I was going to recycle my old 20-year-old Asus P4P800 and then remembered I had bought this unit for another reason a number of years ago and never used it. I decided to swap out my old IDE drive for a SATA SSD and voila. Works great. That's it lit up on the IDE port of the MoBo. Not the only product I've bought from StarTech so wasn't surprised it would work.

Wire M.

2023-06-11T20:00:00

Rated 4 out of 5

This works, but the jumper switches are terrible

I have two of these adapters in different PCs to interface SATA drives to IDE and they work well. My only criticism is with the tiny jumper switches. They are too difficult to adjust. StarTech should redesign these jumpers.

Mike D.

2023-06-11T20:00:00

Rated 4 out of 5

This works, but the jumper switches are terrible

I have two of these adapters in different PCs to interface SATA drives to IDE and they work well. My only criticism is with the tiny jumper switches. They are too difficult to adjust. StarTech should redesign these jumpers.

SuperLittleTyke

2021-08-24T20:00:00

Rated 4 out of 5

Finally got it to work

I got it to work after many tries. First of all, all of the ports on the adapter and the hard drive need to be showing, so I finally figured out just to remove the drive and set it on top of the computer. I had no other drives installed. The connections are: adapter to IDE 40-pin, SP4 ("floppy") 4-pin power connector to the adapter, SATA cable from motherboard to adapter "to computer" orange port, SATA power cable to included SATA to LP4 molex cable, and then LP4 to hard drive power input. My drive was so old it could not boot but I was able to boot from DBAN (Darik's Boot and Nuke) on a CD and erase the drive, which is what I was trying to do. Thanks StarTech! I have two drives to do so I will make a profit on this purchase (unless you count my time geeking out here).

DBANrunner

2021-02-16T19:00:00

Rated 1 out of 5

Can't get it to work

IDE2SATA: I worked 4 hours trying to get it to work. I tried everything. My computer won't even get past the BIOS with this device attached. I tried every combo of the switches, even though the tiny print says it doesn't matter. 'Slave' is the only one that allowed me to access BIOS setup, where I saw that both drives were recognized. My hdd is supported too. The LED were blinking away, and the hdd was running.

robert12

2020-04-04T20:00:00

Rated 1 out of 5

Didn't work with Samsung DVD drive

Tried to hook up a Samsung internal dvd drive. It didn't work with any settings. Disappointed

Rick i.

2019-11-04T19:00:00

Rated 1 out of 5

Not quite as good as it appears

Could not get it to work using a 40pin / 80 wire ribbon cable. I bought it to share an existing IDE connection with a SATA disc drive. But it does not work, even with just the SATA disc connected via the ribbon cable and this product. Dip switch settings for Master or Slave make no difference. They appear redundant anyway, as tech support say the product cannot operate with another disc drive connected. Disappointed. I have not tried to use the product to connect a IDE disc drive to a SATA PC port.

CW33514

2019-09-05T20:00:00

Rated 1 out of 5

Moronic installation guide

The guide mentions setting the DIP switch according to a diagram (step 1) The diagram does not exist. In step (4) it instructs the user to connect computer power supply to SATA hard drive but does not say with what or how?????????

I i.

2018-07-13T20:00:00

Rated 1 out of 5

A little misleading

Have not been able to use this as you need a 40 ide male connector to plug it into if you cant plug into the motherboard.

WayneS

2018-06-28T20:00:00

Rated 5 out of 5

Worked fine. Just needed to fix my HDD

I bought this because I had an old IDE hard drive laying around for years that I needed to clean the data out of. Here is something to keep in mind... if you are connecting an old IDE drive up, be sure that the jumpers are set properly (if applicable). For some odd reason, one of my jumpers was in the wrong position, so I thought the adapter wasn't working at first. Once I noticed the jumper and fixed it, everything worked fine.

Andre721

2018-05-29T20:00:00

Rated 1 out of 5

Not workingAs

As previous user stated, everything connected as manual suggests and HD isn't recognized by PC. All in all useless.

Job77844

2017-12-15T19:00:00

Rated 1 out of 5

Wont work in new HP

I bought this adapter to transfer a WD-250GB to a new HP Z240 workstation. It isn't recognized. All cables are connected correctly and the Power Indicator on the Interface is lit. Hard drive spins up, but nothing is recognized by the computer. Not even in the Device Manager. No drivers to update and nothing else to change. I wont give it a Quality rating, since it doesn't work.

Southern G.

2015-09-10T20:00:00

Rated 5 out of 5

Only one that works with newer computers.

Only adapter we found that works with newer model computers. We use it in a classroom environment with removable IDE drives and it works perfectly

William

2014-10-16T20:00:00

Rated 5 out of 5

I bought this adapter to retrieve files from an IDE disk drive that was in an older computer that failed. Not having a system with IDE interface to connect the drive to, I needed the adapter to connect to a system with a SATA drive interface. The adapter worked perfectly. If the system that you intend to use this adapter in does not have a LP4 Molex 4 pin power connector for the IDE drive, you will need a SATA to LP4 Power Cable Adapter - F/M, which is StarTech product ID LP4SATAFM6IN.

Dan M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech Bi-Directional SATA IDE Adapter Converter Specifications

  • Chipset ID

    Sunplus - SPIF223A

  • Drive Size

    2.5in & 3.5in

  • Number of Drives

    1

  • Type and Rate

    SATA I (1.5 Gbps)

  • Connector Type(s)

    1x IDE (40 Pin; EIDE/PATA) Female
    1x SP4 (4 pin; Small Drive Power) Male
    2x SATA (7 pin; Data) Plug

  • OS Compatibility

    OS independent; No software or drivers required

  • LED Indicators

    1x HDD Activity Green
    1x Power Red

  • Humidity

    90% RH

  • Operating Temperature

    0 to 70 deg. C / 32 to 158 deg. F

  • Storage Temperature

    -40 to 150 deg. C / -40 to 302 deg. F

  • Enclosure Type

    Plastic

  • Certifications

    RoHS Compliant
    CE

  • Dimensions (H x L x W)

    0.4 x 2.4 x 2" / 10.16 x 60.96 x 50.8mm

  • Weight

    0.7oz / 19.85g

  • UPC Code

    065030836982

About StarTech Bi-Directional SATA IDE Adapter Converter

FEATURED REVIEWS

By Dan M.

I bought this adapter to retrieve files from an IDE disk drive that was in an older computer that failed. Not having a system with IDE interface to connect the drive to, I needed the adapter to connect to a system with a SATA drive interface. The adapter worked perfectly. If the system that you intend to use this adapter in does not have a LP4 Molex 4 pin power connector for the IDE drive, you will need a SATA to LP4 Power Cable Adapter - F/M, which is StarTech product ID LP4SATAFM6IN.

Only one that works with newer computers.

By William

Only adapter we found that works with newer model computers. We use it in a classroom environment with removable IDE drives and it works perfectly

The PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to alegacy IDE port or an IDE drive to a SATA motherboard port. A cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives, the SATA/IDE adapter eliminates the expense of having to purchase a controller card while saving the expansion slot that would be required for card installation. In addition to SATA hard drive installation, the adapter can be reversed in order to connect older IDE drives to anewer SATA-enabled motherboard, making it easy to retrieve old files from a previous system.

• Bi-Directional support for IDE-to-SATA or SATA-to-IDE communication
• Compatible with PATA (IDE) 100/133 MBps hard devices
• Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) devices
• Supports SATA/IDE ATAPI devices, such as CD/DVD optical drives
• Fully compliant with Serial ATA 1.0a specifications, with transfer rates up to 1.5 Gbps
• Compatible with Master/Slave/Cable Select modes for IDE devices
• No driver or software required

Applications
• Connect newer SATA drives to an older motherboard with only IDE support
• Connect an old IDE drive to a new SATA only motherboard to recover the data
• Technicians who regularly need to work with both types of drives across different types of systems

Advantage
• A single, versatile adapter can be used to connect an IDE device to a SATA motherboard or vice-versa without any drivers or software installation
• Supports not only hard drives, but CD/DVD optical drives as well
• Backed by a StarTech 2-year warranty and free lifetime technical support

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Easily convert your IDE hard drive to SATA for modern systems, maximizing compatibility.
  • Use this bi-directional adapter to connect a SATA drive to an older IDE interface.
  • Compact & lightweight, this SATA IDE adapter is perfect for on-the-go data transfers.
  • Achieve transfer speeds up to 1.5 Gbps with this SATA I adapter for efficient data access.
  • This hard drive adapter supports both 2.5in & 3.5in drives, offering versatile use.
  • No drivers needed! This adapter ensures OS independent operation for quick setup.

What's in the box:

  • StarTech Bi-Directional SATA IDE Adapter Converter
  • SATA Cable
  • SP4 to Dual LP4 Y Power Adapter
  • Instruction Manual
  • StarTech 2 Year Warranty
