Just Reduced

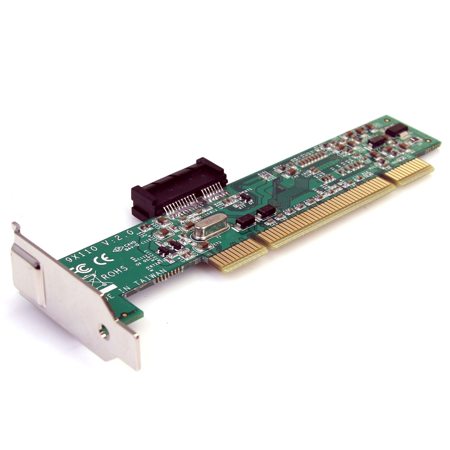

StarTech PCI to PCI Express Adapter Card

SKU: STPCI1PEX1 MFR: PCI1PEX1
$56.99
Earn VIP Reward Points

Key Features

  • Upgrade your system easily: This PCI to PCI Express Adapter Card is OS independent.
  • Expand your PC's capabilities; add a PCI Express card to your existing PCI slot.
  • Utilize the Pericom chipset for reliable PCI Express performance in your system.
  • Get universal compatibility with this PCI / PCI-X adapter, supporting 3.3 & 5V cards.
  • Compact design: At just 0.8 x 5.3 x 2.4", this adapter fits seamlessly into your build.
  • No drivers needed! Simply install this PCI Express adapter for instant functionality.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.99

2 Year

$8.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-11-27T19:00:00

Rated 5 out of 5

Installed in an old W98 machine and it worked!

I needed to extract some data from an old Windows 98 machine and had no IDE drives available. I added this into the system, no drivers needed, and it loaded a MS basic HDD controller driver for the added SATA card. Worked like a champ! Tried this same card in a Windows 10 system that had a spare PCI slot, and no problem. If you have problems, make sure you have the right drivers loaded for your PCI / chipset controllers (AMD or Intel, or others like Nvidia, Via, Realtek, ...). If you only have the basic MS driver loaded, you might not have all of the functionality working in the PCI subsystem. This is a great card for the IT toolkit if you are supporting old machines.

ChasNC

2021-05-09T20:00:00

Rated 1 out of 5

Doesn't work on windows10

I just bought it and it didn't detect it in windows 10, there si no driver for that also.

Harsh

2020-03-25T20:00:00

Rated 1 out of 5

Doesn't work with Windows 10

Ordered one to put USB 3 card to 6 years old Lenovo workstation. I only had free old PCI slot, and there are no USB-3 controllers for PCI available. So I ordered this one. It simply doesn't work. PCI-Z test program, analysing PCI Bus, Stated this: Bridge Pericom Semiconductor PI7C9X111SL PCIe-to-PCI Reversible Bridge PCI bridge This device cannot start. (Code 10) 12D8:E111 0000:0000 Need device installer. Can be rebalanced. ---- So, the card REQUIRES some sort of a driver.

gene007

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech PCI to PCI Express Adapter Card Specifications

  • Bus Type

    PCI / PCI-X (5 / 3.3V)

  • Card Type

    Standard Profile

  • Chipset ID

    Pericom - PI7C9X111SL

  • Interface

    PCI Express

  • Ports

    1

  • Connector Type(s)

    1x PCI / PCI-X (Universal 3.3 & 5V; 32-bit) Male

  • Internal Ports

    1x PCI Express x1 Slot Female

  • OS Compatibility

    OS Independent; No additional drivers or software required

  • Humidity

    0 to 95% RH

  • Operating Temperature

    0 to 85 deg. C / 32 to 185 deg. F

  • Storage Temperature

    -10 to 95 deg. C / 14 to 203 deg. F

  • Certifications

    RoHS Compliant
    CE
    FC

  • Dimensions (H x L x W)

    0.8 x 5.3 x 2.4" / 20.32 x 134.62 x 60.96mm

  • Weight

    1oz / 28.35g

  • UPC Code

    065030837835

About StarTech PCI to PCI Express Adapter Card

FEATURED REVIEWS

Installed in an old W98 machine and it worked!

By ChasNC

I needed to extract some data from an old Windows 98 machine and had no IDE drives available. I added this into the system, no drivers needed, and it loaded a MS basic HDD controller driver for the added SATA card. Worked like a champ! Tried this same card in a Windows 10 system that had a spare PCI slot, and no problem. If you have problems, make sure you have the right drivers loaded for your PCI / chipset controllers (AMD or Intel, or others like Nvidia, Via, Realtek, ...). If you only hav...

View full Review

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card. The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profilePCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.

• Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card
• PCI revision 2.3 compliant with up to 133MBps of available bandwidth
• LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)
• Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2
• No driver or software installation

Applications
• Use newer PCI Express cards on an older PCI-only system
• Install a low profile/half-height, PCI Express card into a full profile PCI system
• Upgrade expansion cards without having to upgrade the system

Advantage
• The unique bracket design allows a low profile/half-height PCI Express card to work seamlessly in a PCI-based expansion slot
• Backed by a StarTech 2-year warranty and free lifetime technical support

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Upgrade your system easily: This PCI to PCI Express Adapter Card is OS independent.
  • Expand your PC's capabilities; add a PCI Express card to your existing PCI slot.
  • Utilize the Pericom chipset for reliable PCI Express performance in your system.
  • Get universal compatibility with this PCI / PCI-X adapter, supporting 3.3 & 5V cards.
  • Compact design: At just 0.8 x 5.3 x 2.4", this adapter fits seamlessly into your build.
  • No drivers needed! Simply install this PCI Express adapter for instant functionality.

What's in the box:

  • StarTech PCI to PCI Express Adapter Card
  • Spare Full Profile Bracket
  • LP4 Power Connector
  • Instruction Manual
  • StarTech 2 Year Warranty
