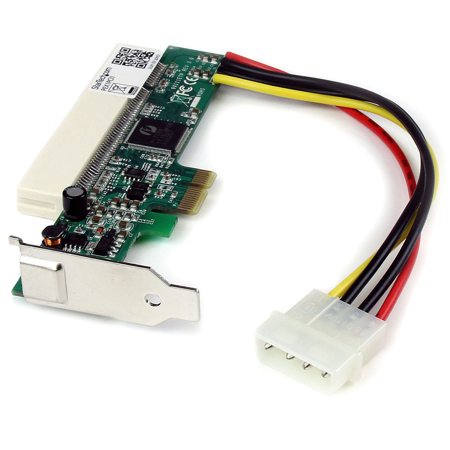

StarTech PCI Express to PCI Adapter Card
StarTech PCI Express to PCI Adapter Card: Picture 1 thumbnail
StarTech PCI Express to PCI Adapter Card: Picture 2 thumbnail
StarTech PCI Express to PCI Adapter Card: Picture 3 thumbnail
StarTech PCI Express to PCI Adapter Card: Picture 4 thumbnail
StarTech PCI Express to PCI Adapter Card: Picture 5 thumbnail
See all StarTech items
Top Rated

StarTech PCI Express to PCI Adapter Card

SKU: STPEX1PCI1 MFR: PEX1PCI1
(2)Ask a Question
$65.99
Earn VIP Reward Points

Key Features

  • Easily adapt PCI cards to your PCI Express system with this reliable adapter card.
  • Achieve broad OS compatibility; no drivers needed for seamless PCI card integration.
  • Use with standard profile card types, ensuring versatile PCI Express to PCI adaptation.
  • This cost-effective PCI Express adapter supports 5V PCI cards for broad device use.
  • Enjoy a 2-year warranty, ensuring your PCI to PCI Express card is protected.
  • Connect via PCI/PCI-X for robust connectivity, expanding your system's capabilities.
See More Product Details
Temporarily On Backorder?Expected Availability: 12/2025Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$5.99
2-Year Adorama Protect$8.99
3-Year Adorama Protect$15.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-02-03T19:00:00

Rated 5 out of 5

It just works!!

Want a new motherboard, but have an old PCI card that you can't, or don't want, to replace? Then this is for you. I have an RME sound card that is relatively expensive, and still works perfectly, so I have no desire to spend more money on a PCIe variant that would give me nothing over what I currently have. Bought this, plugged it in, and that was that. It works flawlessly. Beware of the cheap clones, though, there are many around. This adapter card is a bit pricey, but I did try the clones before buying this, and regretted it. Choppy, broken sound, basically useless. This is is the one to get!!

Dazzer

2021-07-08T20:00:00

Rated 5 out of 5

Really helpful for installing an older PCI device

I purchased this to install an older PCI modem (HiRO H50006) into a newer PCIE motherboard (ASUS B550F). After installing the adapter into the motherboard then installing the modem, the card worked on the first reboot. After testing I found all features worked without an issue. I did have to remove part of my modems faceplate so it would fit properly. This is a very well made adapter and it works quite well, would recommend.

Brute44

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

StarTech PCI Express to PCI Adapter Card Specifications

  • Bus Type

    PCI Express

  • Card Type

    Standard Profile

  • Chipset ID

    Pericom - PI7C9X111SL

  • Interface

    PCI / PCI-X (5 / 3.3V)

  • Connector Type(s)

    1x PCI Express x1 Male

  • Internal Ports

    1x LP4 (4 pin; Molex Large Drive Power) Male
    1x PCI (5V; 32-bit) Slot Female

  • OS Compatibility

    OS Independent; No additional drivers or software required

  • System and Cable Requirements

    The PEX1PCI1 is not compatible with 32-bit 3.3V PCI cards. It is compatible with 5V or universal 3.3V/5V PCI cards only.

  • Operating Temperature

    0 to 85 deg. C / 32 to 185 deg. F

  • Certifications

    RoHS Compliant
    CE

  • Dimensions (H x L x W)

    0.8 x 5.3 x 2.8" / 20.32 x 134.62 x 71.12mm

  • Weight

    1.8oz / 51.03g

  • UPC Code

    065030834629

About StarTech PCI Express to PCI Adapter Card

FEATURED REVIEWS

It just works!!

By Dazzer

Want a new motherboard, but have an old PCI card that you can't, or don't want, to replace? Then this is for you. I have an RME sound card that is relatively expensive, and still works perfectly, so I have no desire to spend more money on a PCIe variant that would give me nothing over what I currently have. Bought this, plugged it in, and that was that. It works flawlessly. Beware of the cheap clones, though, there are many around. This adapter card is a bit pricey, but I did try the clones b...

View full Review

Really helpful for installing an older PCI device

By Brute44

I purchased this to install an older PCI modem (HiRO H50006) into a newer PCIE motherboard (ASUS B550F). After installing the adapter into the motherboard then installing the modem, the card worked on the first reboot. After testing I found all features worked without an issue. I did have to remove part of my modems faceplate so it would fit properly. This is a very well made adapter and it works quite well, would recommend.

Discover the seamless integration of legacy technology with modern systems using the PCI Express to PCI Adapter Card. This innovative device allows you to utilize low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Fully compliant with PCI Express Specification 1.0a and PCI Specification 2.2, this adapter card ensures reliable and efficient performance.

The adapter card connects through a PCIe 1x slot, providing a low profile PCI slot in its place. It includes a spare full-size bracket for PCI Express cards, making it versatile for use in larger desktop or server PCI Express slots. The unique bracket design adapts and secures the existing half-height or low profile bracket of the PCI Card, ensuring a secure and stable connection.

With a PCI Express base spec 1.0a compliance, this adapter card supports up to 250MBps of available bandwidth. It also includes an LP4 Power Connector for Universal Voltage PCI Cards (3.3V/5V), making it compatible with a wide range of devices. Compliant with PCI Express to PCI/PCI-X Bridge spec 1.0, this adapter card requires no driver or software installation, offering a plug-and-play solution.

This versatile adapter card converts PCIe to PCI or PCI-X, and its built-on LP4 power connector links the card to the computer power supply. This allows you to install universal voltage PCI cards (3.3V/5V), extending the usability of older or extra PCI Bus cards in newer PCIe capable systems.

Ideal for use with older PCI-based cards on new PCI Express-enabled computer systems, this adapter card also allows you to install a low profile/half-height PCI card into a full profile PCI Express system. This is particularly useful for industrial and legacy PCI cards that may be hard to find or too costly to replace.

The unique bracket design allows a low profile/half-height PCI card to work seamlessly in a PCI Express-based expansion slot. Backed by a 2-year warranty and free lifetime technical support, this PCI Express to PCI Adapter Card offers a reliable and cost-effective solution for integrating older technology into modern systems.

StarTech PCI Express to PCI Adapter Card Features

  • Versatile adapter card, converting PCIe to PCI or PCI-X for seamless integration of older technology
  • Compliant with PCI Express Specification 1.0a and PCI Specification 2.2 for reliable performance
  • Includes LP4 Power Connector for Universal Voltage PCI Cards (3.3V/5V), ensuring wide compatibility
  • Innovative bracket design adapts & secures half-height/low profile PCI cards in PCI Express slots
  • Supports up to 250MBps of available bandwidth for efficient operation
  • No driver or software installation required, offering a plug-and-play solution for users

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Easily adapt PCI cards to your PCI Express system with this reliable adapter card.
  • Achieve broad OS compatibility; no drivers needed for seamless PCI card integration.
  • Use with standard profile card types, ensuring versatile PCI Express to PCI adaptation.
  • This cost-effective PCI Express adapter supports 5V PCI cards for broad device use.
  • Enjoy a 2-year warranty, ensuring your PCI to PCI Express card is protected.
  • Connect via PCI/PCI-X for robust connectivity, expanding your system's capabilities.

What's in the box:

  • StarTech PCI Express to PCI Adapter Card
  • Spare Full Profile Bracket
  • LP4 Power Connector
  • Instruction Manual
  • StarTech 2 Year Warranty
