StarTech 1 Port PCI Express Low Profile Parallel Adapter Card
See all StarTech items

StarTech 1 Port PCI Express Low Profile Parallel Adapter Card

SKU: STPEX1PLP

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-12-04T19:00:00

Rated 5 out of 5

Brought my legacy application back from the dead!

Bought to bring legacy software back from the dead, worked as advertised :) True to the motto of "hard to find made easy"! you guys are lifesavers!!!! Also bought your PCIe USB adapter for another similar problem, also great piece of hardware.

Sheldon

2021-09-09T20:00:00

Rated 1 out of 5

Is it Compatible with any Windows 10 Compilation?

I havea problem with a parallel pci card installed in my sff Dell Computer because when updated to version 21H1, the drivers of my parallel pci card dont work and I have to downgrade the windows 10 version to 20H2. So I found out that my card is not compatible with that compilation in Windows 10 pro 64 bits. But I want to know if you product is compatible with any compilation of Windows 10 Pro 64 bits and the drivers too. I have written by this way because I dont see how to contact you and the rating (overall and quality) is not real, I did for the system asks for it. I will thank your help and your recommendations.

Evans

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

StarTech 1 Port PCI Express Low Profile Parallel Adapter Card Specifications

  • Bus Type

    PCI Express

  • Card Type

    Low Profile (SP bracket incl.)

  • Chipset ID

    PLX/Oxford - OXPCIe952

  • Interface

    Parallel

  • Port Style

    Integrated on Card

  • Ports

    1

  • Maximum Data Transfer Rate

    Up to 2.5Mbps

  • Connector Type(s)

    1 - PCI Express x1 Male

  • External Ports

    1 - DB-25 (25 pin; D-Sub) Female

  • OS Compatibility

    Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, 95, XP Embedded, CE 6.0 / 5.0
    Windows Server 2012, 2008 R2, 2003, 2000
    Linux 2.4.x / 2.6.x

  • Humidity

    5-85% RH

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Certifications

    RoHS Complaint
    CE
    FC

  • Dimensions (H x L x W)

    4.7 x 0.8 x 4.3" / 11.94 x 2.03 x 10.92cm

  • Weight

    2.3oz / 65.2g

  • UPC Code

    065030840873

About StarTech 1 Port PCI Express Low Profile Parallel Adapter Card

FEATURED REVIEWS

Brought my legacy application back from the dead!

By Sheldon

Bought to bring legacy software back from the dead, worked as advertised :) True to the motto of "hard to find made easy"! you guys are lifesavers!!!! Also bought your PCIe USB adapter for another similar problem, also great piece of hardware.

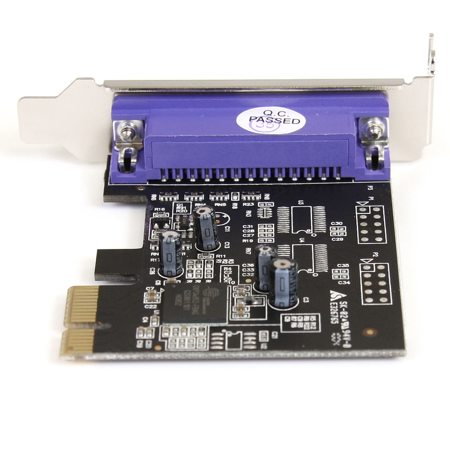

The PEX1PLP PCIe Parallel Adapter card can be installed in a PCI Express (PCIe) x1 slot, allowing you to connect EPP/ECP parallel peripherals to any computer, while relying on a native, single-chip design (Oxford OXPCIe952) that harnesses the capability of true PCI Express - ensuring maximum performance and reliability.

This high performance SPP/EPP/ECP parallel card adds 1 DB25 parallel port, perfect for connecting printers, scanners, CD-R/RW drives, memory card readers, bar code scanners and more. With the added convenience of plug-and-play capability, installing the parallel adapter card is hassle-free! The PCIe Parallel card also includes both standard and half-height/low profile mounting brackets for compatibility with almost any system form factor. Backed by a StarTech 2-year warranty and free lifetime technical support.

• SPP/EPP/ECP Parallel port fully supports existing Centronics interface
• Packaged with low profile/half-height bracket attached, includes full profile bracket
• Compliant with PCI Express Base Specification 1.1a
• Compliant with PCI Power Management 1.2

Advantage
• Native single chip makes installation a simple plug-and-play experience
• Includes the necessary mounting brackets to support both standard and small form factor computers
• Supports all parallel modes (SPP/ EPP/ ECP) for compatibility with your devices

Applications
Connects any parallel-based peripheral to your PC, including printers, scanners, CD-R/RWs, Zip drives and memory card readers

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • StarTech 1 Port PCI Express Low Profile Parallel Adapter Card
  • Full Profile Bracket
  • Driver CD
  • Instruction Manual
  • StarTech 2 Year Warranty
