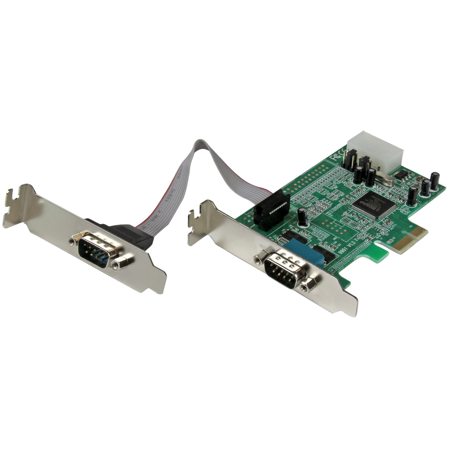

StarTech 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART

SKU: STPEX2S553LP MFR: PEX2S553LP
$52.99
Earn VIP Reward Points

Key Features

  • Add two RS232 serial ports to your desktop with this PCI Express serial card for legacy device support.
  • Experience reliable serial communication with a 16550 UART, ensuring compatibility with older hardware.
  • Enjoy broad OS compatibility, including Windows, Linux, and macOS, for versatile system integration.
  • The low profile design fits in small form factor PCs, making it ideal for space-constrained builds.
  • Achieve fast data transfer rates up to 460.8 Kbps, perfect for connecting serial modems or POS systems.
  • This PCI Express card includes both full and low profile brackets for easy installation in any PC case.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Calculate Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.99

2 Year

$8.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-03-10T20:00:00

Rated 1 out of 5

Does not work with large files transfering

Our application requires large files download (3MB) with baud rate of 115200 and using this model of device we are getting many issues, mainly loss of data and comunication being stopped. We have no issues with other models

GleisonZ1

2017-12-12T19:00:00

Rated 1 out of 5

Does not work in Window 10 Enterprise IoT LTSB. Com Numbers are duplicated to the onboard COMs. There is no way to modify COM numbers.

Jh_SupplyPro

2017-02-21T19:00:00

Rated 5 out of 5

Works perfectly

We use these cards for all our PCs that connect to scientific instruments (Agilent etc). No problems getting the drivers installed or the instruments to communicate. Solid cards that just work. Can't recommend them enough.

ZEUS_GB

2016-12-06T19:00:00

Rated 5 out of 5

Great support

Purchased this product, couldn't get the driver installed. Spoke with support via chat and they remotely connected and fixed the problem. A+ very impressed. Thank you!

James

2014-09-29T20:00:00

Rated 3 out of 5

Suggestion for documentation

An arrow showing where pin 1 is for the parallel cable would've been helpful. The stock photo provided on Amazon, CDW, and shown on the box contradicts what is show on the front of the manual.

Rob12345

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech Serial Card Specifications

  • Bus Type

    PCI Express

  • Card Type

    Low Profile (SP bracket incl.)

  • Chipset ID

    ASIX/MosChip - MCS9922CV-AA

  • Interface

    Serial

  • Port Style

    Integrated on Card

  • Ports

    2

  • FIFO

    128 Bytes

  • Maximum Baud Rate

    460.8 Kbps

  • Serial Protocol

    RS-232

  • Connector Type

    1x PCI Express x1 Male

  • External Ports

    2x DB-9 (9 pin; D-Sub) Male

  • Internal Ports

    1x LP4 (4 pin; Molex Large Drive Power) Male

  • Microsoft WHQL Certified

    Yes

  • OS Compatibility

    Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
    Windows Server 2012, 2008 R2, 2003
    Mac OS 10.4 and later (tested up to 10.10)
    Linux kernel 2.6.x

  • Humidity

    5 to 85% RH

  • Operating Temperature

    -10 to 80 deg. C / 14 to 176 deg. F

  • Storage Temperature

    -20 to 100 deg. C / -4 to 212 deg. F

  • Certifications

    RoHS Complaint
    CE
    FC

  • Dimensions (H x L x W)

    0.8 x 4.1 x 3.1" / 20.32 x 104.14 x 78.74mm

  • Weight

    2.2oz / 62.37g

  • UPC Code

    065030841757

About StarTech Serial Card

FEATURED REVIEWS

Works perfectly

By ZEUS_GB

We use these cards for all our PCs that connect to scientific instruments (Agilent etc). No problems getting the drivers installed or the instruments to communicate. Solid cards that just work. Can't recommend them enough.

Great support

By James

Purchased this product, couldn't get the driver installed. Spoke with support via chat and they remotely connected and fixed the problem. A+ very impressed. Thank you!

An innovative solution for expanding your computer's connectivity, the PEX2S553LP Low Profile Native RS232 PCI Express Serial Card transforms a single PCI Express slot into two robust RS232 (DB9) serial connections. This high-performance card is engineered with a native single-chip design, allowing you to leverage the full potential of PCI Express (PCIe) technology. This design significantly reduces the CPU load by up to 48% compared to conventional bridge chip serial cards, enhancing your system's performance and reliability.

This PCI Express Serial Card features one high-speed RS232 serial port, capable of data transfer rates up to 460.8 Kbps. It comes pre-configured with a half-height/low profile mounting bracket, making it an ideal choice for both standard and low-profile systems. An optional standard profile bracket is also included for added versatility.

The card's advanced features include selectable power output on pin 9 for the serial port, automated out-of-band flow control using CTS/RTS and DSR/DTR, and automated in-band software flow control using programmable Xon/Xoff in both directions. It also boasts a 128-byte deep FIFO per transmitter and receiver, ensuring smooth and efficient data transmission.

The PCI Express RS232 Serial Adapter Card is compatible with a wide range of operating systems, including Windows 2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32 and 64-bit), and Linux Kernel 2.6.11 and up. This makes it a versatile solution for various applications, from self-service automated machines and kiosks to POS retail systems and ATM machines.

Whether you need to control serial devices like scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers, or surveillance cameras, this PCI Express Serial Card offers a reliable and efficient solution. This product serves as a suitable replacement for the StarTech PEX2S552LP card.

Experience the advantage of the native single-chip, single-lane PCI Express technology, and enjoy reduced CPU load and enhanced performance with the PEX2S553LP Low Profile Native RS232 PCI Express Serial Card. Its easy installation and user-friendly instructions save you time and hassle, making it an invaluable addition to your computer system.

StarTech Serial Card Features

  • Native single-chip design for optimal utilization of PCI Express (PCIe) technology
  • Reduces CPU load by up to 48%, enhancing system performance and reliability
  • High-speed RS232 serial port with data transfer rates up to 460.8 Kbps
  • Versatile compatibility with a wide range of operating systems, including Windows and Linux
  • Pre-configured with a half-height mounting bracket, includes an optional standard profile bracket for added versatility
  • Ideal for controlling a variety of serial devices in diverse applications, from POS systems to surveillance cameras

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Add two RS232 serial ports to your desktop with this PCI Express serial card for legacy device support.
  • Experience reliable serial communication with a 16550 UART, ensuring compatibility with older hardware.
  • Enjoy broad OS compatibility, including Windows, Linux, and macOS, for versatile system integration.
  • The low profile design fits in small form factor PCs, making it ideal for space-constrained builds.
  • Achieve fast data transfer rates up to 460.8 Kbps, perfect for connecting serial modems or POS systems.
  • This PCI Express card includes both full and low profile brackets for easy installation in any PC case.

What's in the box:

  • StarTech 2 Port Low Profile Native RS232 PCI Express Serial Card
  • DB9 Ribbon Cable
  • Full Profile Bracket
  • Low Profile Bracket
  • Driver CD
  • Instruction Manual
  • StarTech 2 Year Warranty
