StarTech LCD Console Specifications

  • Audio

    No

  • Display Size

    17"

  • Key Lock

    Yes

  • KVM Ports

    1

  • Multi-Monitor

    No

  • Panel Type

    Active Matrix TFT LCD

  • PC Interface

    USB and PS/2

  • PC Video Type

    VGA

  • Rack-Mountable

    Yes

  • U Height

    1U

  • Aspect Ratio

    Standard (4:3)

  • Brightness

    250 cd/m2

  • Color Depth

    24-bit, 16.7M colors (Truecolor)

  • Contrast Ratio

    1000:1

  • IP Control

    No

  • Maximum Analog Resolutions

    1280x1024 at 60Hz

  • MTBF

    60000 Hours

  • Pixel Pitch Support

    0.264 x 0.264 mm

  • Port Selection Support

    Hotkeys and OSD (On Screen Display)

  • Response Time

    5ms

  • Sync

    45-80KHZ

  • Viewing Angle

    170 deg. (H), 160 deg. (V)

  • Console Interfaces

    1x USB A (4 pin) Female
    1x VGA (15 pin; High Density D-Sub) Female
    2x PS/2 (6 pin; Mini-DIN) Female

  • OS Compatibility

    OS independent; No software or drivers required

  • Input Voltage

    115 -230 AC

  • Power Consumption

    16 -10.41W for Panel

  • Enclosure Type

    Heavy Duty Steel

  • Power Source

    AC Adapter Included

  • Certifications

    RoHS Compliant
    CE
    FC
    UL

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Maximum Mounting Depth

    31.5" / 800.10mm

  • Minimum Mounting Depth

    21.7" / 551.18mm

  • Dimensions (H x L x W)

    1.8 x 20.9 x 18.9" / 45.72 x 530.86 x 480.06mm

  • Weight

    26.5lbs / 12.02kg

  • UPC Code

    065030822794

About StarTech LCD Console

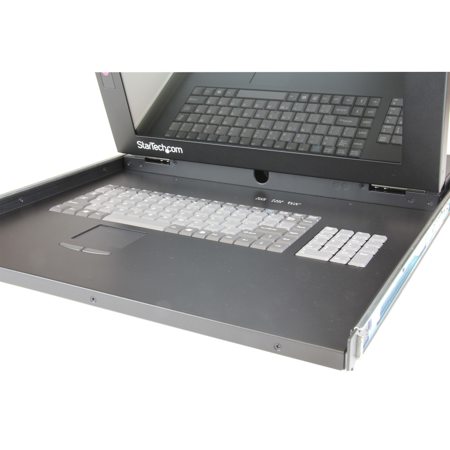

The RACKCONS1701 1U 17" Rack Mount LCD Console provides a complete keyboard, video and mouse control point, integrated neatly into only 1U of rack/cabinet space - providing complete KVM control right from a server rack. Offering a durable, compactable 1U design, when the rack console is not in use it's as simple as folding the display like a laptop computer and sliding it back into the server rack on the sturdy mounting rails (included). The included key lock provides an added security layer, helping to reduce unauthorized access to connected computers.

• Bright Active Matrix TFT Display
• Durable design
• OSD function (On Screen Display) for LCD display
• Security features, including port locking and auto scan
• Supports both USB and PS/2 connected servers or KVMs

Offering consolidated control from a convenient location, the KVM rack console can be connected to virtually any multiport KVM switch, for control of multiple servers/computers, providing a scalable KVM control solution that lets you determine the type of KVM switch to use based on function and budget. Backed by a StarTech 2-year warranty and free lifetime technical support.

Advantage
• Compact 1U design requires 90% less space than a standard cabinet mounted keyboard, monitor and mouse
• Sturdy steel construction and high quality sliding rails ensure a long maintenance free life and dependable control of your equipment
• A key lock prevents access to the keypad or LCD tray to provide a secure server management solution preventing unauthorized users from accessing your critical equipment

Applications
• Centralized control of dozens of PCs and servers if used with optional KVM
• Managing cabinet mounted servers
• Improving the internal space efficiency of existing cabinets

What's in the box:

  • StarTech 17 " 1U Folding Rackmount LCD Console
  • Mounting Rails
  • Console Cable Kit
  • Power Cord
  • StarTech 2 Year Warranty
