Speco Technologies 4 Channel Color Duplex Multiplexer
See all Speco Technologies items

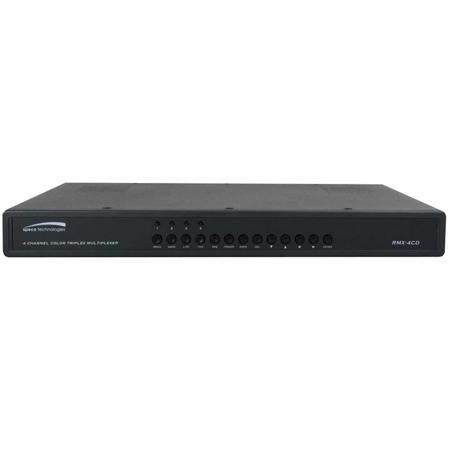

Speco Technologies 4 Channel Color Duplex Multiplexer

SKU: STRMX4CD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Speco Technologies Duplex Multiplexer Specifications

  • Camera Inputs

    BNC, 4, composite video 1.0Vp-p 75Ohms

  • Adjustable Program Recording

    2-999 hours-accepts trigger pulses from VCRs & DVRs

  • Alarm Functions

    Video loss alert and alarm detection with up to 100 record

  • Alarm Inputs

    4 (TTL level)

  • Alarm Output

    1, Normally open or closed (relay output) contacts with shared common

  • Compatibility

    Compatible with all standard and time lapse VCRs and most DVRs

  • Looping Camera Outputs

    BNC, 4, composite video 1.0Vp-p 75Ohms

  • Maximum Image Sources

    4 on one screen

  • Monitor Output

    BNC, 1, composite video 1.0Vp-p 75Ohms

  • Other function

    Built-in time and date generator with 8 character camera title function

  • Playback Input

    BNC, 1, composite video 1.0Vp-p 75Ohms

  • Power Consumption

    Maximum 9 watts

  • Power Source

    12VDC, 1.2 amp included

  • Recovery Output

    1 (TTL active low)

  • RS-232 Interface

    D-SUB 25 pin female connector

  • Switch Input

    BNC, 1 (TTL level)

  • VCR Output

    BNC, 1, composite video 1.0Vp-p 75Ohms

  • VCR Input

    BNC, 1, composite video 1.0Vp-p 75Ohms

  • Viewing Options

    Full screen, multi-screen or sequential switching with adjustable dwell time

  • Dimensions (H x W x D)

    1.75 x 17 x 9.75" / 4.45 x 43.18 x 24.77cm

  • Weight

    5lbs / 2.27kg

  • UPC Code

    030519670227

About Speco Technologies Duplex Multiplexer

• View up to 4 image sources on one screen while simultaneously recording full screen images on a DVR or VCR
• Full-screen and multi-screen viewing options are available during VCR playback
• Uniquely programmable for recording between 2 - 999 hours
• Built-in time/date generator
• 8 Character camera title function
• Video loss alert and alarm detection are structured
• Compatible with all standard time lapse VCRs and most DVRs

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies 4 Channel Color Duplex Multiplexer
  • Power Supply
  • Speco Technologies 1 Year Limited Warranty
