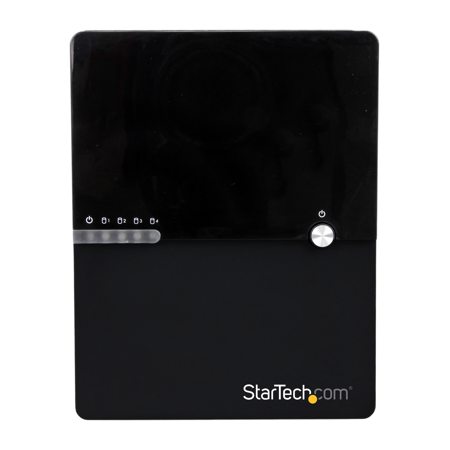

StarTech USB 3.0/eSATA 4-Bay 3.5" SATA III Hard Drive Enclosure with Built-In HDD Fan and UASP, 6Gbps Maximum Data Transfer Rate

SKU: STS3540BU33E MFR: S3540BU33E
Earn VIP Reward Points

Key Features

  • Maximize storage with this 4-bay enclosure, supporting multiple 3.5" SATA III hard drives.
  • Experience fast data transfers up to 6Gbps with eSATA, perfect for large file backups.
  • Utilize USB 3.0 for convenient connectivity and up to 5Gbps transfer speeds on your computer.
  • Keep your drives cool with the built-in HDD fan, ensuring optimal performance and longevity.
  • Supports UASP for enhanced transfer speeds when used with compatible USB 3.0 host controllers.
  • Broad compatibility: works with Windows, macOS, Linux, and Chrome OS for seamless integration.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$53.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-09-14T20:00:00

Rated 5 out of 5

very reliable storage solution

despite 1 replacement this has been very reliable, have used it with 4 3tb disks in raid 5 and it's been faultless

paddyc

2021-10-18T20:00:00

Rated 4 out of 5

Very impressive enclosure (mostly)

Bought this about 2.5 years ago, it was initially problematic but I was able to demonstrate to the startech technical support that it was defective and they shipped me a new one which works flawlessly. I did have to stop the disks spinning down though as it caused USB bus disconnects and as I'm using it as a raid 5 array I need it to be 100%. I am definitely very please with it as it's way cheaper than a NAS, I have it mounted on a Raspberry PI4B with UAS enabled and it's really fast, I have measured 30mb /sec write speeds on my 4 Toshiba P300 3TB array.

paddy

2021-09-12T20:00:00

Rated 1 out of 5

Constant disconnects

This constantly disconnects whether connected via eSata, USB 2.0 or USB 3.0. Is there a firmware update available? It is populated with two identical WD Enterprise class 4.0 TB drives model # WD4000F9YZ. I've tried all of the above connectivity options and the problem remains. I've tried locating the drives on different 'shelves' inside the drive and using only a single drive in the enclosure and the disconnect problem remains. Any help would be sincerely appreciates as this has been a long-term issue making the enclosure unacceptably unreliable. The O/S is Windows 10 Pro 64-bit version 21H1 O/S build 19043.1165 with all the latest patches as of this date 09/13/21. Please help!

sbaker51

2021-07-17T20:00:00

Rated 1 out of 5

Turn it on, nothing happens.

Turn it off and back on, maybe it will detect, turn it off try again. 1 - 3 tries, every time. It also disconnects, and won't reconnect, so I am constantly turning it off and on. It has 4 identical WD RED NAS drives in perfect shape. Works great when it decides to connect.

gibletoid

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech USB 3.0/eSATA 4-Bay 3.5" SATA III Hard Drive Enclosure Specifications

  • Bus Type

    USB 3.0

  • Interface

    USB 3.0 & eSATA

  • Number of Drives

    4

  • Drive Size

    3.5" / 88.9mm

  • Compatible Drive Types (Type and Rate)

    SATA

  • Drive Installation

    Fixed

  • Number of internal 3.5 inch bays

    4

  • Fans

    Yes (1 to 80mm / 0.04 to 3.15")

  • Chipset ID

    JMicron JMS567 + JMB575

  • Drive Connectors

    4x SATA Data & Power Combo (7+15 pin) Receptacle

  • Host Connectors

    eSATA (7 pin; Data) Female

  • Maximum Data Transfer Rate

    6 Gbps (eSATA)
    5 Gbps (USB 3.0)

  • UASP Support

    Yes

  • Type and Rate

    SATA III (6 Gbps)
    USB 3.0 - 5 Gbit/s

  • Port Multiplier

    Yes

  • Max Drive Capacity

    Currently tested with up to 6TB 7200 RPM hard drives

  • HDD Support

    Supports 2.5" / 63.5mm Solid State Drives (SSD) and Hard Drives (HDD) using a 2.5 to 3.5" (63.5 to 88.9mm) drive adapter such as 25SAT35HDD and 25SATSAS35

  • OS Compatibility

    Windows 8/8.1 (32/64bit), 7 (32/64bit), Server 2008 (32/64), Vista(32/64), Server 2003 (32/64) XP(32/64), 2000
    Apple Mavericks (10.9) OSX Mountain Lion (10.8), Lion (10.7), Snow Leopard (10.6)
    Linux
    Google Chrome OS

  • LED Indicators

    Power LED
    4x HDD Activity LEDs

  • Power Source

    AC Adapter Included

  • Input Voltage

    100 - 240 AC

  • Input Current

    2.5 A

  • Output Voltage

    12 DC

  • Output Current

    6.5 A

  • Operating Temperature

    5 to 35 deg. C (41 to 95 deg. F)

  • Storage Temperature

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Humidity

    20%RH - 80%RH

  • Dimensions (L x W x H)

    7.9 x 4.5 x 5.6" / 200.66 x 114.3 x 142.24mm

  • Weight

    36.7oz / 1040.43g

  • UPC Code

    065030858045

About StarTech USB 3.0/eSATA 4-Bay 3.5" SATA III Hard Drive Enclosure

FEATURED REVIEWS

very reliable storage solution

By paddyc

despite 1 replacement this has been very reliable, have used it with 4 3tb disks in raid 5 and it's been faultless

After extensive research and development, StarTech presents the 4-Bay HDD Enclosure, a high-performance solution for your data storage and transfer needs. This robust enclosure is designed to accommodate four 3.5" SATA hard drives, transforming them into an external storage powerhouse that connects seamlessly to your computer via USB 3.0 or eSATA.

Engineered for speed and efficiency, this enclosure supports SATA III transfer speeds, reaching up to a blistering 6 Gbps when connected through eSATA. This ensures rapid access and transfer of your important data, making it an ideal choice for professionals who demand high-speed performance.

The versatility of this enclosure extends to its connectivity options. It can be connected via USB 3.0, with the added advantage of UASP support. When paired with a UASP-enabled host controller, this enclosure performs up to 70% faster than conventional USB 3.0, significantly reducing data transfer times and enhancing your productivity.

The StarTech 4-Bay HDD Enclosure is designed with broad compatibility in mind. It supports all leading operating systems, including Microsoft Windows (8/7/Vista/XP/Server 2008/Server 2003), Apple OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS. UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux, ensuring optimal performance across a wide range of systems.

In rigorous testing, this enclosure demonstrated a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance. This makes the StarTech 4-Bay HDD Enclosure a reliable and high-performance choice for your data storage and transfer needs. Experience the difference in speed, efficiency, and versatility with this advanced HDD enclosure.

StarTech USB 3.0/eSATA 4-Bay 3.5" SATA III Hard Drive Enclosure Features

  • Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
  • Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
  • Versatile connectivity options, through either USB or eSATA
  • Maximize performance, with file transfer speeds up to 6Gbps using eSATA
  • Keep your drives running cooler, with a built-in fan
  • Use external hard drives for high-performance applications such video editing or photography
  • Create an external backup of important data
  • Build an external software RAID array
  • Expand the storage capacity of your desktop or laptop computer, through an external eSATA connection

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Maximize storage with this 4-bay enclosure, supporting multiple 3.5" SATA III hard drives.
  • Experience fast data transfers up to 6Gbps with eSATA, perfect for large file backups.
  • Utilize USB 3.0 for convenient connectivity and up to 5Gbps transfer speeds on your computer.
  • Keep your drives cool with the built-in HDD fan, ensuring optimal performance and longevity.
  • Supports UASP for enhanced transfer speeds when used with compatible USB 3.0 host controllers.
  • Broad compatibility: works with Windows, macOS, Linux, and Chrome OS for seamless integration.

What's in the box:

  • StarTech USB 3.0/eSATA 4-Bay 3.5 " SATA III Hard Drive Enclosure
  • eSATA Cable
  • USB 3.0 Cable
  • Universal Power Adapter
  • Instruction Manual
  • StarTech 2 Year Warranty
