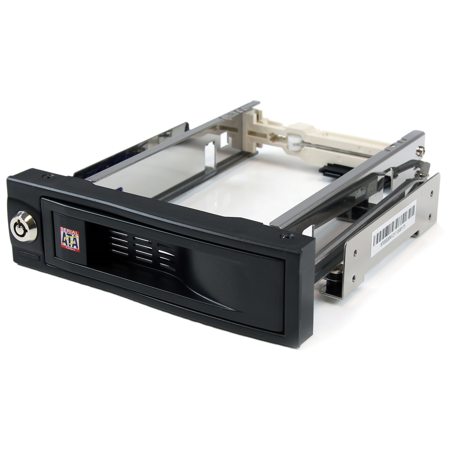

StarTech 5.25" Trayless Hot Swap Mobile Rack for 3.5" Hard Drive

SKU: STSB100SATBK MFR: HSB100SATBK
$33.99
Earn VIP Reward Points

Key Features

  • Easily swap 3.5" SATA drives with this trayless hot swap mobile rack, no tools required!
  • Protect your valuable data with the built-in key lock for enhanced hard drive security.
  • Enjoy broad compatibility; this mobile rack works with any OS, no drivers needed.
  • This 5.25" mobile rack supports 50,000+ insertion cycles for long-lasting drive use.
  • Keep your drive cool; the aluminum enclosure promotes efficient heat dissipation.
  • Quickly access your data with hot-swap capability; no need to power down your system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-12-30T19:00:00

Rated 1 out of 5

Fails on large transfers.

I disagree that this product cannot cause problems for HDD. I had one that repeatedly locked up while trying to transfer a 2.7TB data set to an 8TB and 12TB HDD. The result of the lockup is remapped sectors reported in SMART statistics. This happened with both drives, both of which performed the same operation on another system without difficulty. Further, if I bypass the tray and connect directly to the HDD (same SATA cable and power connector) the operation completes without difficulty. OK for small file transfers but bad news for large transfers.

HankB

2018-05-22T20:00:00

Rated 4 out of 5

Drive lite Connection

The product is as defined, it works great with any of the various brands of SATA HDD's. I have it installed in an older HP 6000 Pro Core 2 Duo, E7600, however I can not determine where to connect the Tray lite. Unfortunately, the bezel lite on the case is module that does not match the tray cable.

R2D2

2018-05-11T20:00:00

Rated 2 out of 5

Broke attempting to eject SSD

This device is designed for 11mm drives and probably works well with them. However when attempting to put thinner drives in as all modern drives are, the mechanism jams up and drive gets wedged inside. Attempting to remove the drive involves damaging the enclosure ( not the SSD fortunately ) beyond repair. This drive thickness limitation was not made clear in the sales information.

barry47

2017-04-01T20:00:00

Rated 5 out of 5

Great product

I have been using this rack for well over a year and it has worked great for me. Easy to install and use, I have built computers and RAID for a few years now and I have 2 of these and plan on getting more. I am a electrical contractor and I do not give high praise alot but I do on this one. If you have any trouble with this I would say check other components first. I use a lot of startech products and I have No problem with any.

Mikie

2015-11-28T19:00:00

Rated 1 out of 5

Works fine for few weeks...

This is very low quality product, I bought 4 units, two simply stop working and the other two work erratically. And it seems these are damaging the harddisks

mekkano

2015-05-17T20:00:00

Rated 5 out of 5

Great Item ! Fast delivery

As a reseller, I am concerned mainly by two things, the first is to receive a good quality items corresponding exactly to the description and the second to receive them fast !

Mourad K.

2015-01-22T19:00:00

Rated 4 out of 5

Can't be beat!

Just installed and using it in minutes. It's standard StarTech construction, which is better than most generic equipment but down a grade from a factory HP or Dell item. Only beef is that the insertion rating is listed at 50,000 on the website but only 10,000 in the manual. At one insertion per week that's a difference of 700 years, I'm not happy!

Limey

2014-01-06T19:00:00

Rated 5 out of 5

Drive Bay SATA Tryless

Very good and easy to use. We used it for backup of virtual machines. Excelent Performance.

Rehan

StarTech Mobile Rack Specifications

  • Compatible Drive Types (Type and Rate)

    SATA

  • Drive Size

    3.5" / 88.90mm

  • Key Lock

    Yes

  • Number of Drives

    1

  • Hot Swap Capability

    Yes

  • Insertion Rating

    50,000+ Cycles

  • Temperature Alarm

    No

  • Drive Connectors

    1x SATA (7 pin; Data) Receptacle
    1x SATA Power (15 pin) Receptacle

  • Host Connectors

    1x SATA (7 pin; Data) Plug
    1x SATA Power (15 pin) Plug

  • OS Compatibility

    OS independent; No software or drivers required

  • LED Indicators

    1x Drive Power/Activity

  • Humidity

    Operating - 5 to 85% RH Non-condensing
    Storage - 5 to 95%

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Enclosure Type

    Aluminum and Plastic

  • Certifications

    RoHS Compliant
    CE
    FC

  • Dimensions (H x L x W)

    1.7 x 7.2 x 5.9" / 43.18 x 182.88 x 149.86mm

  • Weight

    10.8oz / 306.18g

  • UPC Code

    065030821360

Models
StarTech 5.25" Trayless Hot Swap Mobile Rack for 3.5" Hard Drive
$33.99

Ships from Manufacturer

Usually ships within 1-2 Days

StarTech Mounting Bracket with 4x 2.5" SSD/HDD and Cooling Fan
$42.99

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

StarTech 2.5" SATA Removable Hard Drive Bay for PC Expansion Slot
$47.99

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Accessory TypeDrive Docking & StorageDrive Docking & StorageDrive Docking & Storage

About StarTech Mobile Rack

FEATURED REVIEWS

Drive Bay SATA Tryless

By Rehan

Very good and easy to use. We used it for backup of virtual machines. Excelent Performance.

Great product

By Mikie

I have been using this rack for well over a year and it has worked great for me. Easy to install and use, I have built computers and RAID for a few years now and I have 2 of these and plan on getting more. I am a electrical contractor and I do not give high praise alot but I do on this one. If you have any trouble with this I would say check other components first. I use a lot of startech products and I have No problem with any.

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes. The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process or integration into rackmount systems or industrial environments.

• Holds a 3.5" SATA drive in a front accessible 5.25" bay
• Trayless design: drives are not mounted into separate trays/enclosures
• Lockable drive bay
• Internal rubber shock absorbers
• 50,000+ insertion rating
• Power and Activity LED indicator
• Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
• Supports 3.5" form factor SATA hard drives
• Plug-and-Play and Hot-Swap compatible

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications. Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech's 2-year warranty.

Applications
• Add additional hot-swap bays to a server or workstation computer
• Replace or upgrade old IDE backplane with a SATA backplane
• System builders who need to image drives quickly and efficiently
• Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
• Be able to replace/remove individual drives from a storage array with minimal or no system down time

Advantage
• Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller
• Quickly and easily install or remove hard drives without having to open the chassis with the innovative trayless design
• Rubber shock absorbers, a solid aluminum construction and 50,000+ insertion rating ensures longevity from both the drives and bay

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Easily swap 3.5" SATA drives with this trayless hot swap mobile rack, no tools required!
  • Protect your valuable data with the built-in key lock for enhanced hard drive security.
  • Enjoy broad compatibility; this mobile rack works with any OS, no drivers needed.
  • This 5.25" mobile rack supports 50,000+ insertion cycles for long-lasting drive use.
  • Keep your drive cool; the aluminum enclosure promotes efficient heat dissipation.
  • Quickly access your data with hot-swap capability; no need to power down your system.

What's in the box:

  • StarTech 5.25 " Trayless Hot Swap Mobile Rack
  • 2x Key
  • Screw Kit
  • Instruction Manual
  • StarTech 2 Year Warranty
