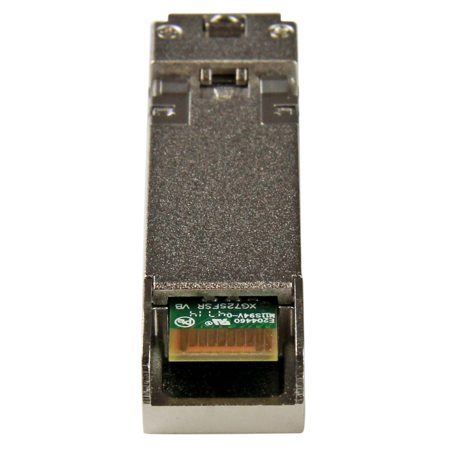

StarTech Cisco Compatible 10GBase-SR Fiber MM LC SFP+ Transceiver Module
See all StarTech items

StarTech 300m / 984.24' 850nm Cisco Compatible 10GBase-SR Fiber MM LC SFP+ Transceiver Module with DDM

SKU: STSFP10GSRST
(2)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2018-09-19T20:00:00

Rated 5 out of 5

1.25Gbps LC Fiber SFP Transceiver

Simple and it works. Just plug it into your switch. Plug your LC Multi Mode Fiber cable into the Transceiver and it works.

Starr

2015-11-23T19:00:00

Rated 1 out of 5

Does not work with Cisco 2911

This product was purchased to work with a Cisco 2911 Router and does not work in that router. It shows up as: NAME: "1000BASE-SX SFP", DESCR: "1000BASE-SX SFP" PID: unknown , VID: 1.0, SN: H309712 I contacted Startech.com and they said that it may not be supported by that model. Cisco end of lifed the GLC-SX-MM= adapter and replaced it with the GLC-SX-MMD adapter. Be sure to get something compatible with that to be supported by the Cisco 2911 Router. This product claims to be compatible with the GLC-SX-MM= adapter, but that adapter is supported by the 2911 Router. This one was not. This was my first experience buying a 3rd party GBIC. I have bought other Startech products and have been happy with them. I will continue to buy Startech products.

Josh

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

StarTech Transceiver Module Specifications

  • Industry Standards

    IEEE 802.3ae 10GBASE-SR

  • WDM

    No

  • Compatible Networks

    10 Gbps

  • DDM

    Yes

  • Fiber Operating Mode

    Full-Duplex

  • Fiber Type

    Multi Mode

  • Max Transfer Distance

    300m / 984.24'

  • Maximum Data Transfer Rate

    11.1 Gbps

  • Wavelength

    850nm

  • Local Unit Connectors

    1x Fiber Optic LC Duplex Female

  • System and Cable Requirements

    MSA or Cisco compliant SFP+ port

  • Humidity

    30 to 70% RH

  • Operating Temperature

    0 to 70 deg. C / 32 to 158 deg. F

  • Storage Temperature

    -40 to 85 deg. C / -40 to 185 deg. F

  • Certifications

    RoHS Compliant
    CE
    FC
    UL

  • Dimensions (H x L x W)

    0.4 x 2.4 x 0.5" / 10.16 x 60.96 x 12.7mm

  • Weight

    0.6oz / 17.01g

About StarTech Transceiver Module

The SFP10GSRST Cisco Compatible 10GBase-SR SFP+ Fiber Transceiver Module 850nm MM LC w/DDM - 300m (984ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a 10Gb SFP+ Multimode LC port on your fiber networking equipment or fiber media converter. Supporting data rates up to 11.1 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP+/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant 10GbE SFP+ port.

• Maximum data rates up to 11.1Gbps
• Supports distances up to 300m (984ft)
• Complies with SFP Multi-Source Agreements standards (MSA)
• Compatible with Cisco equipment
• LC Fiber connector
• Fully Hot Pluggable

Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot. This 850nm multi-mode SFP+ module is compatible with the Cisco SFP-10G-SR transceiver. Backed by a StarTech lifetime warranty and free lifetime technical support.

Applications
• Replacing defective or damaged SFP+ modules in 10Gb MSA compliant or Cisco equipment
• Expand your network to remote segments

Advantage
• Cost-effective replacement for MSA or Cisco compliant equipment
• Extend network connectivity up to 300m

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • StarTech 300m / 984.24' 850nm Cisco Compatible 10GBase-SR Fiber MM LC SFP+ Transceiver Module with D
  • StarTech Lifetime Warranty
