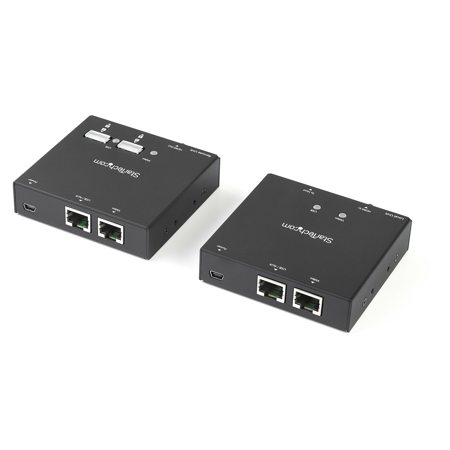

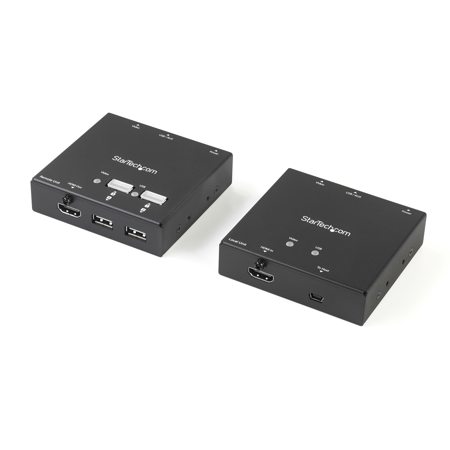

StarTech 50m / 164.04' HDMI over CAT6 Extender with 4-Port USB Hub

SKU: STST121USBHD MFR: ST121USBHD
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 164ft with this HDMI over CAT6 extender, perfect for home or office use.
  • Enjoy crystal-clear 1080p video at 60Hz with this high-performance HDMI extender kit.
  • Features a 4-port USB hub, ideal for connecting peripherals remotely via this KVM extender.
  • Bi-directional IR control lets you manage your source device from a distance with this HDMI KVM.
  • This HDMI to CAT6 converter supports Dolby TrueHD & DTS-HD MA audio for an immersive experience.
  • Durable metal housing ensures reliable performance and longevity for this HDMI over CAT6 solution.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$53.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-06-08T20:00:00

Rated 1 out of 5

This product is dreadful

Bought two sets of these devices to use for hiding cables in two new meeting rooms (Projector on one side of the room, USB port on the other). Ran 2 x 20m CAT6 cables from a floor box in the room up a service conduit to the ceiling mounted receiver, a 2m HDMI from the receiver to the ceiling mounted projector and a 5m active USB extender to a port on the wall. Neither worked. Using an HMDI EDID adaptor, I managed to get a display on the projector after a lot of messing around but no amount of tinkering with the USB would make it work. Ran brand new CAT7 cables to the Startech device and a new USB extender. New USB extender worked, display would no longer work. Replaced the startech device with a new HDMI extender - worked fine. Steer clear of this product at all costs lest you end up tearing your hair out like me.

MattMcKeown86

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech HDMI Extender Specifications

  • Audio

    Yes
    Supports Dolby TrueHD, DTS-HD MA

  • Cabling

    Cat 5 UTP or better

  • Daisy-Chain

    No

  • Ports

    1

  • IR Interface

    Bi-directional
    38Khz / +/-10 deg. / 5M

  • Max Distance

    164.04' (50m)

  • Maximum Data Transfer Rate

    HDMI - 3.4Gbps
    RS232 - 115200bps baud

  • Maximum Digital Resolutions

    1080p at 60Hz, 48-bit

  • Wide Screen Supported

    Yes

  • Connector A

    1x HDMI (19 pin) Female Input
    2x USB Mini-B (5 pin) Female

  • Connector B

    1x HDMI (19 pin) Female Output
    4x USB A (4 pin) Female
    1x USB Mini-B (5 pin) Female

  • Output Current

    1 A

  • Output Voltage

    5 DC

  • Plug Type

    N

  • Humidity

    0% - 80 % RH (non-condensing)

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    14 to 140 deg. F (-10 to 60 deg. C)

  • Certifications

    RoHS Compliant
    CE
    FC

  • Dimensions (H x L x W)

    0.8 x 3.2 x 3.2" (20.32 x 81.28 x 81.28mm)

  • Weight

    8.1 oz (229.64g)

  • UPC Code

    065030862363

About StarTech HDMI Extender

Let the 50m / 164.04' HDMI over CAT6 Extender with 4-Port USB Hub revolutionize your audio-visual experience. This high-quality HDMI extender kit is designed to transmit your 1080p HD video source to a remote HDMI display at a distance of up to 165 feet (50m) using shielded CAT6 cabling.

Experience crystal-clear picture quality with support for uncompressed 1920x1200 or 1080p HD video extension. This HDMI extender maintains the quality of your high-definition video signal along with the accompanying 7.1 digital audio, even at 165 feet away from your source device. It's the perfect solution for enhancing your audience's experience in remote digital-signage applications in hospitals, shopping centers, or tradeshows.

The extender also features a built-in 4-port USB 2.0 hub, allowing you to connect, access, or control up to four remote USB peripheral devices at your display location. This is ideal for flash drives, printers, scanners, external hard drives, and I/O devices. The remote USB extension also enables you to remotely control your source device, making it perfect for adding touchscreen interfaces at your display in market or POS kiosks.

For a hassle-free setup, this HDMI extender offers easy plug-and-play installation with no additional software or drivers required. The extender passes the EDID information included in your HDMI signal and automatically adjusts video equalization, ensuring you won't have to configure it manually. Included mounting hardware ensures a tidy and professional installation.

Whether you're looking to place your display in a convenient viewing area, operate servers from a remote location, or control your PC in an area where fan or hard drive noise is unacceptable, this HDMI extender is the reliable and efficient solution you need. Please note, to maximize performance this extender requires shielded CAT6 cable. When using unshielded CAT6 cable the maximum distance is reduced to 30m. When using CAT5 cable the maximum distance is reduced to 15m.

StarTech HDMI Extender Features

  • Extend HDMI signal up to 165 feet with 1080p HD video quality over CAT6 cable
  • Built-in 4-port USB 2.0 hub for connecting multiple remote devices
  • Supports high-resolution video up to 1920x1200 for professional displays
  • Easy plug-and-play installation with no additional software required
  • Mounting hardware included for a clean and professional setup
  • Compatible with shielded CAT6 cabling for optimal performance

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend your HDMI signal up to 164ft with this HDMI over CAT6 extender, perfect for home or office use.
  • Enjoy crystal-clear 1080p video at 60Hz with this high-performance HDMI extender kit.
  • Features a 4-port USB hub, ideal for connecting peripherals remotely via this KVM extender.
  • Bi-directional IR control lets you manage your source device from a distance with this HDMI KVM.
  • This HDMI to CAT6 converter supports Dolby TrueHD & DTS-HD MA audio for an immersive experience.
  • Durable metal housing ensures reliable performance and longevity for this HDMI over CAT6 solution.

What's in the box:

  • StarTech HDMI over CAT6 Transmitter
  • HDMI over CAT6 Receiver
  • 2x Ethernet Cable
  • 2x USB to Mini-USB Cable
  • Universal Power Adapter (NA/EU/UK/AU)
  • Mounting Kit
  • Quick Install Guide
  • StarTech 2 Year Warranty
