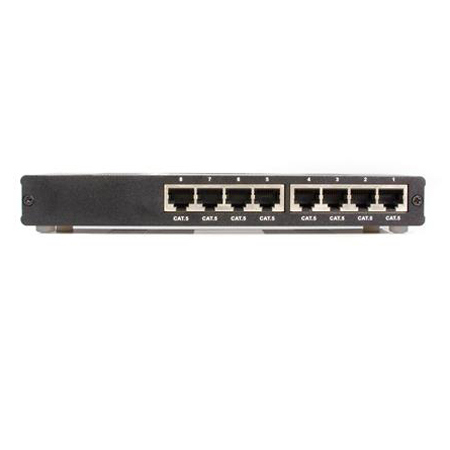

StarTech 8 Port VGA Video Extender Over Cat 5

The ST128UTPE 8 Port VGA Video Extender over Cat 5 (UTPE Series) allows up to 9 (1 local and 8 remote) monitors to be connected to a single VGA source. The video signal is carried to the remote monitors over standard 4 pair Category 5 and Category 6 UTP cable using RJ45 connectors and supports distances of up to 300m / 950ft. At each remote monitor an STUTPRXL receiver is required. The receiver unit converts the signal from the UTP cable back into VGA video for the monitor. Backed by a StarTech 2-year warranty and free lifetime technical support.

• Simultaneously displays the same image on 8 monitors
• Supports a maximum resolution of 1280 x 1024 @ 60 Hz refresh rate
• Monitor receivers are sold separately (See STUTPRXL)
• Monitors can be up to 300m / 950ft away
• Cascadable up to three levels

Applications
• Ideal for digital signage applications in financial, educational and business sectors
• Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
• Use digital signage to catch the attention of your audience and deliver up to date content the way you want it to be seen and heard

Advantage
• Works with the STUTPRXL receiver or the STUTPRXWAL (wall-plate receiver) for flexibility in your setup
• Extends the connection distance of VGA displays by up to 950 feet (300 meters) offering flexibility in the placement of your equipment
• Cat5 extension design allows you to make use of existing Cat 5 or better wiring infrastructure
