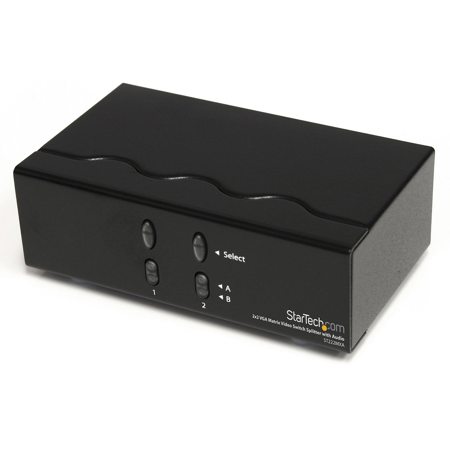

StarTech 2x2 VGA Matrix Video Switch Splitter with Audio

SKU: STST222MXA MFR: ST222MXA
$121.99
Earn VIP Reward Points

Key Features

  • Easily switch VGA video and audio with this 2x2 matrix, perfect for presentations.
  • Enjoy high-resolution video up to 1920x1440 at 85Hz with reliable performance.
  • Connect multiple devices using this VGA video switch splitter with audio support.
  • This video switch offers easy setup and operation, no complicated software needed!
  • Use this matrix switcher for clear video distribution with a 250MHz bandwidth.
  • Compact steel enclosure ensures durability; backed by a StarTech 2-year warranty.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$9.99

2 Year

$14.99

3 Year

$23.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech 2x2 VGA Matrix Video Switch Splitter with Audio Specifications

  • Audio

    Yes

  • Industry Standards

    DDC, DDC2, DDC2B

  • Ports

    2

  • Bandwidth

    250MHz

  • Frequency Range

    Audio: 20Hz~20KHz

  • Maximum Analog Resolutions

    1920x1440 at 85Hz

  • Maximum Cable Length

    213.2' / 64.98m

  • Connector A

    2 - 3.5 mm Mini-Jack (3 Position) Female
    2 - VGA (15 pin; High Density D-Sub) Female

  • Connector B

    2 - 3.5 mm Mini-Jack (3 Position) Female
    2 - VGA (15 pin; High Density D-Sub) Female

  • LED Indicators

    4 - Port/Source selection indicators (2 sets of 2). Green = Source A, Red = Source B

  • Center Tip Polarity

    Positive

  • Input Current

    0.6 A

  • Input Voltage

    110 ~ 240 AC

  • Output Current

    1.25 A

  • Output Voltage

    12 DC

  • Plug Type

    M

  • Power Source

    AC Adapter Included

  • Humidity

    0 to 95%

  • Operating Temperature

    0 to 70 deg. C / 32 to 158 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Enclosure Type

    Steel

  • Dimensions (H x L x W)

    1.6 x 5.1 x 3.1" / 4.06 x 12.95 x 7.87cm

  • Weight

    16.3oz / 462.10g

  • UPC Code

    065030841825

About StarTech 2x2 VGA Matrix Video Switch Splitter with Audio

Enhance your audio-visual experience with the ST222MXA 2x2 VGA Matrix Video Switch Splitter with Audio. This advanced device allows you to distribute two distinct VGA inputs, along with their corresponding audio sources, across two independent displays or projectors.

Equipped with convenient push-button control, this VGA Matrix Switcher/Splitter enables individual switching of each VGA signal and its associated audio. This means you can display a different source on each screen or the same source on both, providing you with maximum flexibility and control over your visual content.

The ST222MXA VGA Matrix Switch features a built-in signal booster, ensuring optimal VGA distribution and signal management over extended distances. This feature allows for the installation of displays up to 213-feet (65 meters) away from the source device, while maintaining impeccable signal integrity.

This VGA Matrix Video Switch Splitter supports a maximum resolution of up to 1920 x 1440 @ 85Hz and a video bandwidth of 250 MHz. It also accommodates 3.5mm stereo audio connections and an audio frequency response of 20Hz~20KHz. The device supports DDC, DDC2, DDC2B, and Multi-Sync video types including RGBHV, RGsB, RGBS.

The matrix switching capability of the ST222MXA allows you to use the device as a video splitter or switch, with the ability to toggle on/off signals for complete control of screen content. The built-in signal amplifier enables you to extend your connection by up to 210 feet.

This VGA Matrix Video Switch Splitter is perfect for a variety of applications. It allows you to take full control of your sources and displays/projectors, making it ideal for multimedia presentations in business conference rooms or at trade-shows. It's also perfect for connecting/switching multiple sources in Test Bench Facilities, Data Centers, Help Desks, and Video Broadcasting Facilities. For retail environments requiring more than one media player or PC to be connected, it's an ideal solution for digital signage applications. It also allows trainees/students to view what is on your display and then switch back to their own display after the demonstration completes.

StarTech 2x2 VGA Matrix Video Switch Splitter with Audio Features

  • Advanced 2x2 VGA Matrix Video Switch Splitter with Audio for versatile display control
  • Convenient push-button control for individual switching of VGA signals and audio
  • Built-in signal booster for optimal VGA distribution over extended distances up to 213 feet
  • Supports maximum resolution of 1920 x 1440 @ 85Hz and video bandwidth of 250 MHz
  • Matrix switching capability for use as a video splitter or switch with on/off signal control
  • Ideal for multimedia presentations, digital signage applications, and educational demonstrations

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Easily switch VGA video and audio with this 2x2 matrix, perfect for presentations.
  • Enjoy high-resolution video up to 1920x1440 at 85Hz with reliable performance.
  • Connect multiple devices using this VGA video switch splitter with audio support.
  • This video switch offers easy setup and operation, no complicated software needed!
  • Use this matrix switcher for clear video distribution with a 250MHz bandwidth.
  • Compact steel enclosure ensures durability; backed by a StarTech 2-year warranty.

What's in the box:

  • StarTech 2x2 VGA Matrix Video Switch Splitter with Audio
  • Power Adapter
  • Instruction Manual
  • StarTech 2 Year Warranty
