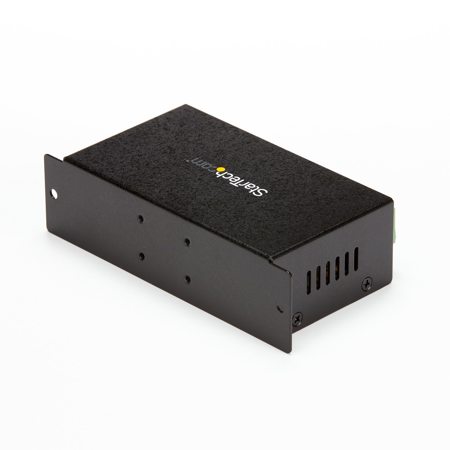

StarTech 7 Port Mountable Rugged Industrial USB Hub

SKU: STST7200USBM MFR: ST7200USBM
$109.99
Earn VIP Reward Points

Key Features

  • Expand your connectivity with this 7-Port Industrial USB Hub, perfect for rugged environments.
  • Achieve reliable performance with a robust USB hub, featuring 350W surge protection per port.
  • Maximize uptime; this industrial USB hub boasts an MTBF of 170,227 hours for dependable use.
  • Easily mount this steel enclosure USB hub with included DIN rail brackets for secure placement.
  • Enjoy flexible power options with a 7-24V DC terminal block, ideal for various setups.
  • Transfer data efficiently at up to 480Mbps with this USB 2.0 hub, OS independent design.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CAREY M : We have used it in the past and it seems to work pretty well. No Problems.

Reviews about this item

Review Summary

2019-01-02T07:31:51

Rated 5 out of 5

Used for robotics platform

Works well and is robust. We have used several of these in some robotics projects to handle sensors and devices attached to the controller (Nvidia Jetson).

Colin U.

StarTech USB Hub Specifications

  • Industry Standards

    USB 2.0

  • Interface

    USB 2.0

  • Ports

    7

  • Maximum Data Transfer Rate

    Up to 480Mbps

  • MTBF

    170,227 Hours

  • Surge Protection

    350W per port

  • External Ports

    1x Terminal Block (2 Wire)
    1x USB B (4 pin) Female
    7x USB A (4 pin) Female

  • OS Compatibility

    OS independent; No software or drivers required

  • System and Cable Requirements

    Any computer with a USB 2.0 port

  • LED Indicators

    1x Power

  • Input Voltage

    7 to 24 DC

  • Power Source

    Terminal Block

  • Humidity

    5 to 95% RH

  • Operating Temperature

    0 to 55 deg. C / 32 to 131 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Enclosure Type

    Steel

  • Certifications

    RoHS Compliant
    CE
    FC

  • Dimensions (H x L x W)

    1.4 x 5.2 x 2.4" / 35.56 x 132.08 x 60.96mm

  • Weight

    17.6oz / 498.96g

  • UPC Code

    065030837910

About StarTech USB Hub

FEATURED REVIEWS

Used for robotics platform

By Colin U.

Works well and is robust. We have used several of these in some robotics projects to handle sensors and devices attached to the controller (Nvidia Jetson).

Enhance your connectivity capabilities with the 7 Port Mountable Rugged Industrial USB Hub, designed to withstand the demanding conditions of a work area, server room, or any industrial environment. This robust USB 2.0 hub offers the convenience of wall mounting or installation onto a DIN rail, ensuring easy access to its seven female USB 2.0 ports.

Crafted for optimal performance, the hub supports Hi-Speed USB 2.0 data transfer rates of up to 480 Mbps, making it an efficient solution for managing multiple connections. Its backward compatibility with USB 1.1 specifications ensures a broad range of device connectivity options.

For versatile power options, this compact and lightweight hub can be USB bus powered or externally powered through a three-wire terminal block connector, accepting a 7-24VDC input. The all-metal enclosure is not only industrial strength but also offers a sleek design that can be seamlessly integrated into any setup.

Each of the seven USB ports is fortified with 350W surge protection, safeguarding your connected devices from power fluctuations. The hub's plug-and-play and hot-swap compatibility enhance user convenience, allowing for effortless addition and removal of devices without the need to power down the system.

Included with the hub is a 2-meter screw-locking USB cable, ensuring secure connections and uninterrupted service. Whether you're looking to add additional USB ports to rack-mounted equipment or require a secure, surface-mounted hub for an array of industrial applications, this USB hub is engineered to meet your needs.

The 7 Port Mountable Rugged Industrial USB Hub is not only a testament to durability but also to flexibility, with surface and DIN mounting options and terminal block power input catering to a wide range of industrial applications. With a high user satisfaction rating of 5 out of 5 stars and the ability to connect multiple devices simultaneously, this hub stands out as a top-tier choice for professionals seeking reliable USB expansion.

SEO-optimized and factual, this product description is designed to provide all the necessary information while also improving visibility in search engine results, ensuring that those in need of a durable, high-performance USB hub will find this exceptional product with ease.

StarTech USB Hub Features

  • Rugged 7-port USB 2.0 hub for industrial & server room environments
  • High-speed data transfer with rates up to 480 Mbps & backward compatibility
  • Wall mountable & DIN rail installation options for versatile setup
  • Durable all-metal enclosure with 350W surge protection per port
  • Dual power input: USB bus powered or external terminal block (7-24VDC)
  • Plug-and-Play with hot-swap functionality & included screw-locking USB cable

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Expand your connectivity with this 7-Port Industrial USB Hub, perfect for rugged environments.
  • Achieve reliable performance with a robust USB hub, featuring 350W surge protection per port.
  • Maximize uptime; this industrial USB hub boasts an MTBF of 170,227 hours for dependable use.
  • Easily mount this steel enclosure USB hub with included DIN rail brackets for secure placement.
  • Enjoy flexible power options with a 7-24V DC terminal block, ideal for various setups.
  • Transfer data efficiently at up to 480Mbps with this USB 2.0 hub, OS independent design.

What's in the box:

  • StarTech 7 Port Mountable Rugged Industrial USB Hub
  • 2x DIN Rail Mounting Bracket
  • Locking USB Cable
  • Screw Kit
  • Instruction Manual
  • StarTech 2 Year Warranty
