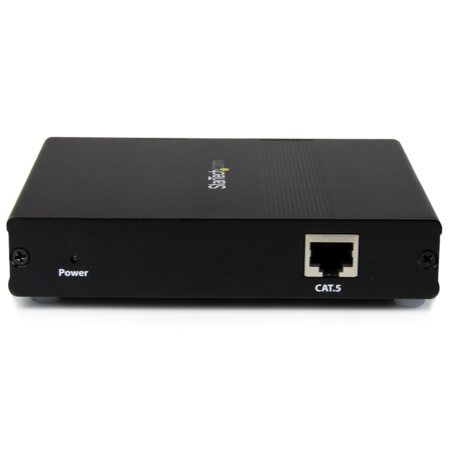

StarTech VGA Video Extender over Cat 5 Remote Receiver with Audio

SKU: STSTUTPEALR MFR: STUTPEALR
Earn VIP Reward Points

Key Features

  • Extend VGA video & audio up to 950ft with this reliable Cat5 video extender receiver.
  • Enjoy stable performance with resolutions up to 1920x1200 using this video format converter.
  • This easy-to-use VGA extender supports daisy-chaining for flexible setup options.
  • Real-time conversion ensures your video and audio signals are transmitted without delay.
  • Wide screen supported! Perfect for presentations or digital signage applications.
  • Affordable price for a high-quality VGA video extender with audio support.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$19.99

2 Year

$29.99

3 Year

$39.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2017-07-26T20:00:00

Rated 1 out of 5

Not worth the money

Picture starts to loose quality at 75' and completely goes out at 100'. They advertise that is should go 950'? What a waste of money.

Jqg73

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech Receiver Specifications

  • Audio

    Yes

  • Cabling

    Cat 5 UTP or better

  • Daisy-Chain

    Yes

  • Ports

    1

  • Max Distance

    300 m / 950 ft

  • Supported Resolutions

    1920x1200 at 75m(250ft)
    1440x900 at 150m(500ft)
    1024x768 at 300m(950ft)

  • Wide Screen Supported

    Yes

  • Remote Unit Connectors

    1 - 3.5 mm Mini-Jack (3 Position) Female
    1 - RJ-45 Female
    1 - VGA (15 pin; High Density D-Sub) Female

  • Center Tip Polarity

    Positive

  • Output Current

    0.6A

  • Output Voltage

    12 DC

  • Power Source

    AC Adapter Included

  • Humidity

    5~90% RH

  • Operating Temperature

    0 deg.C to 50 deg.C (32 deg.F to 122 deg.F)

  • Storage Temperature

    -20 deg.C to 70 deg.C (-4 deg.F to 158 deg.F)

  • Enclosure Type

    Aluminum

  • Dimensions (H x L x W)

    1 x 5.1 x 4.4" / 25.40 x 129.54 x 111.76mm

  • Weight

    9.5oz / 269.32g

  • UPC Code

    065030830379

About StarTech Receiver

After careful design and engineering, the STUTPEALR VGA Video Extender over Cat 5 Remote Receiver with Audio emerges as a key component of the STUTPEA VGA and Audio over Cat 5 extension series. This innovative video distribution system is designed to streamline the execution of digital signage solutions, enabling a single VGA source and its corresponding audio to be broadcasted to multiple displays, reaching distances of up to 300m (950ft).

The system is composed of one receiver unit per display and either a ST124UTPEA 4 port VGA & Audio extender or ST128UTPEA 8 port VGA & Audio extender unit. This allows the VGA and Audio extension series to transmit a single VGA output and corresponding audio to four or eight displays/receivers over standard Cat 5 or better UTP cable.

For added versatility, the system offers the option to increase the number of remote displays by integrating the STUTPEA4X VGA & Audio over Cat 5 Line Splitter. This allows your VGA and accompanying audio signal to be broadcasted to up to a total of 16 displays.

The STUTPEALR VGA Video Extender over Cat 5 Remote Receiver with Audio sends video and audio over Cat5 or better cabling to remote displays. Monitors can be positioned up to 300m / 950ft away at a resolution of 1280x1024 / 720p. It supports maximum resolutions of up to 1920x1080 / 1080p @ 75m / 250ft.

This system is purely hardware-based, requiring no software or drivers for implementation. It also features adjustable EQ and Gain Advantage, extending the connection distance of a VGA signal by up to 950 feet (300 meters). This offers flexibility in the placement of your equipment.

The Cat5 extension design allows you to utilize existing Cat 5 or better wiring infrastructure. This makes it ideal for digital signage applications in financial, educational, and business sectors, extending your display across harsh environment industrial sites. It's perfect for video conferencing solutions in boardrooms and office settings, and optimizes the placement of your demo stations at trade-shows and in auditoriums.

StarTech Receiver Features

  • Streamlines digital signage solutions with single VGA source and corresponding audio broadcasting
  • Enables connection up to 300m / 950ft away at a resolution of 1280x1024 / 720p
  • Supports maximum resolutions of up to 1920x1080 / 1080p @ 75m / 250ft
  • Pure hardware design, no software or drivers required for implementation
  • Adjustable EQ and Gain Advantage for enhanced audio-visual experience
  • Cat5 extension design, perfect for utilizing existing Cat 5 or better wiring infrastructure

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend VGA video & audio up to 950ft with this reliable Cat5 video extender receiver.
  • Enjoy stable performance with resolutions up to 1920x1200 using this video format converter.
  • This easy-to-use VGA extender supports daisy-chaining for flexible setup options.
  • Real-time conversion ensures your video and audio signals are transmitted without delay.
  • Wide screen supported! Perfect for presentations or digital signage applications.
  • Affordable price for a high-quality VGA video extender with audio support.

What's in the box:

  • StarTech VGA Video Extender over Cat 5 Remote Receiver with Audio
  • Power Adapter
  • Instruction Manual
  • StarTech 2 Year Warranty
