Speco Technologies 220 VAC Video and Power Surge Protector
See all Speco Technologies items

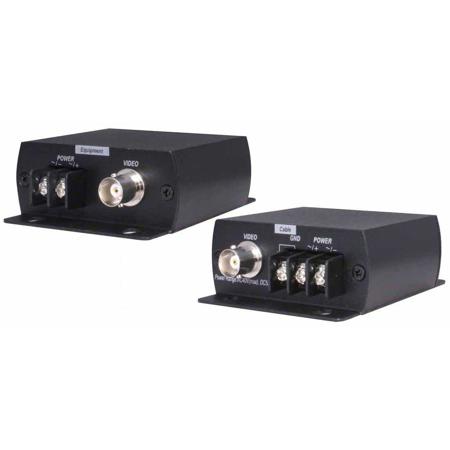

Speco Technologies 220 VAC Video and Power Surge Protector

SKU: STSTVP
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies Surge Protector Specifications

  • Protection

    Under 1ns-90V, over 10ns-12V

  • Applications

    CCTV/CATV system, television antennas, FM receivers, video cameras, monitors, multiplexers & Quad processors, VCRS

  • Surge Protection Attack Time

    1ns

  • Maximum Surge Current

    4kV

  • Surge Life

    300 surges of 100A

  • Band Pass

    0-1GHz

  • Power Passing Capability

    130VAC/DC 65Vrms at 10A

  • Insertion Loss

    Less than 0.2dB

  • Return Loss

    16dB (75 ohms)

  • Connector

    2-pin terminal+ BNC male to 2-pin terminal + BNC female

  • Power Input

    AC40V (max), DC56V (max)

  • Dimensions

    3.44 x 2.44 x 1" / 8.74 x 6.20 x 2.54cm

  • UPC Code

    030519001540

About Speco Technologies Surge Protector

• Two-stage protection
• 2-pin terminal+ BNC male to 2-pin terminal + BNC female
• Max power input: AC 40V Max, DC 56V Max
• Max current up to 2 Amp

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies 220 VAC Video and Power Surge Protector
  • Speco Technologies 1 Year Limited Warranty
