StarTech 200m / 656.16' USB Dual VGA over Cat5 KVM Console Extender

SKU: STSV565DUTPU MFR: SV565DUTPU
Earn VIP Reward Points

Key Features

  • Extend your dual VGA KVM console up to 656 feet with this reliable extender kit.
  • Enjoy compatibility across operating systems; no drivers needed for this KVM extender.
  • Experience seamless dual VGA video at up to 1920x1200 resolution with this KVM solution.
  • This durable steel KVM extender supports a wide operating temperature range for reliability.
  • Connect your USB devices remotely, enhancing ergonomics and workflow with this KVM.
  • This cost-effective KVM solution includes all necessary cables and a universal power adapter.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech KVM Extender Specifications

  • Audio

    No

  • Cables Included

    Yes

  • KVM Ports

    2

  • Multi-Monitor

    Yes

  • PC Interface

    USB

  • PC Video Type

    VGA

  • Rack-Mountable

    No

  • IP Control

    No

  • Max Transfer Distance

    200m / 656.16'

  • Maximum Analog Resolutions

    1920x1200

  • Supported Resolutions

    1920x1200 at 650' (200m)

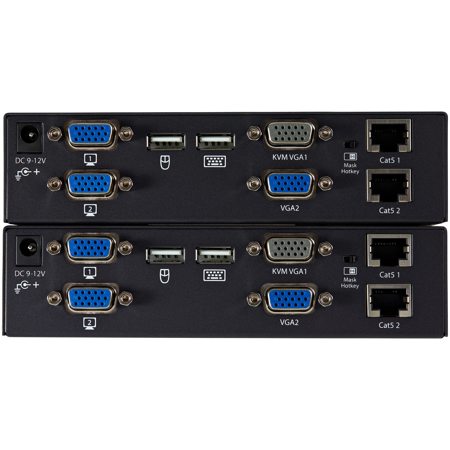

  • Console Interface

    2x USB A (4 pin) Female
    2x VGA (15 pin; High Density D-Sub) Female

  • Host Connectors

    2x VGA (15 pin; High Density D-Sub) Female

  • Other Interface

    2x RJ-45 Female

  • OS Compatibility

    OS independent; No software or drivers required

  • Center Tip Polarity

    Positive

  • Input Current

    0.2A

  • Input Voltage

    110 to 240 AC

  • Output Current

    0.6A

  • Output Voltage

    9 DC

  • Plug Type

    M

  • Humidity

    0 to 80% RH

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -10 to 60 deg. C / 14 to 140 deg. F

  • Enclosure Type

    Steel

  • Certifications

    RoHS Compliant
    CE
    FC

  • Dimensions (H x L x W)

    1.6 x 6.1 x 3.1" / 40.64 x 154.94 x 78.74mm

  • Weight

    18.9oz / 535.82g

  • UPC Code

    065030848237

About StarTech KVM Extender

For professionals seeking a reliable and high-quality solution for remote access and control of their devices, the SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP is an innovative choice. This durable extender allows you to operate a Dual VGA PC or KVM switch from a distance of up to 650ft (200m), as if it was installed locally, delivering high-definition visuals at a 1920x1200 resolution.

This user-friendly device comes with included PC connection cables for a ready-to-use solution, making it a versatile option for both individual computers and existing KVM switches. The dual VGA cat5 KVM extender supports intuitive hot-key and push-button commands, allowing seamless switching between local and remote connected systems.

With console connections available at both ends of your setup, you can easily access all connected systems from either location. This extender supports most combo keyboard and mouse sets, including wireless configurations, offering broad compatibility for your convenience.

The hot-key commands also provide video adjustment controls, optimizing picture quality over varying distances. This extender operates over two standard Cat 5 (or better) cables, leveraging your existing infrastructure wiring to achieve remote access to your server or KVM switch.

Ideal for controlling a PC in noise-sensitive areas like television broadcast studios, or monitoring a remote server from harsh environments where the PC would not function properly due to heat or dust, this extender can also act as a thin client for power users controlling powerful rack-mounted servers as their desktop machines.

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP is a cost-effective way to convert existing dual VGA KVM units or individual servers into remotely accessible hardware, extending your hardware's capabilities while maintaining network security with long-distance local access.

StarTech KVM Extender Features

  • Dual VGA KVM console extender with high-definition 1920x1200 resolution
  • Extends control up to 650ft (200m) using Cat5 UTP for long-distance reach
  • Includes PC connection cables for immediate, hassle-free setup
  • Hot-key and push-button commands for effortless switching between systems
  • Compatible with most USB keyboards and mice, including wireless sets
  • Ideal for noise-sensitive environments and harsh conditions

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your dual VGA KVM console up to 656 feet with this reliable extender kit.
  • Enjoy compatibility across operating systems; no drivers needed for this KVM extender.
  • Experience seamless dual VGA video at up to 1920x1200 resolution with this KVM solution.
  • This durable steel KVM extender supports a wide operating temperature range for reliability.
  • Connect your USB devices remotely, enhancing ergonomics and workflow with this KVM.
  • This cost-effective KVM solution includes all necessary cables and a universal power adapter.

What's in the box:

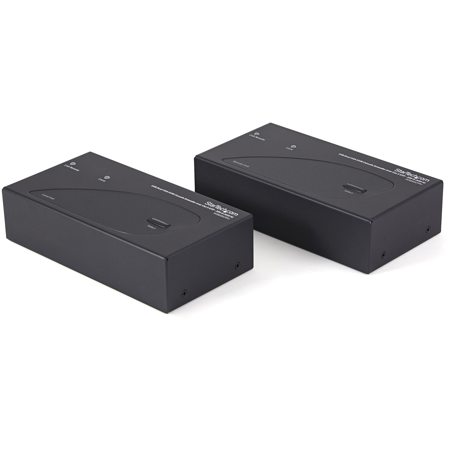

  • StarTech Local Unit
  • Remote Unit
  • 2x 6' 2-In-1 USB VGA KVM Cable
  • Universal Power Adapter (NA/EU/UK/AU)
  • 8x Rubber Feet
  • Instruction Manual
  • StarTech 3 Year Warranty
