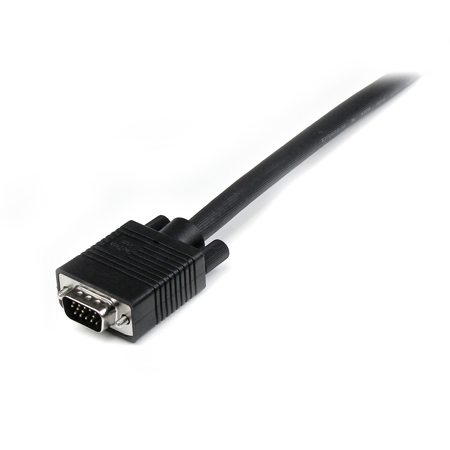

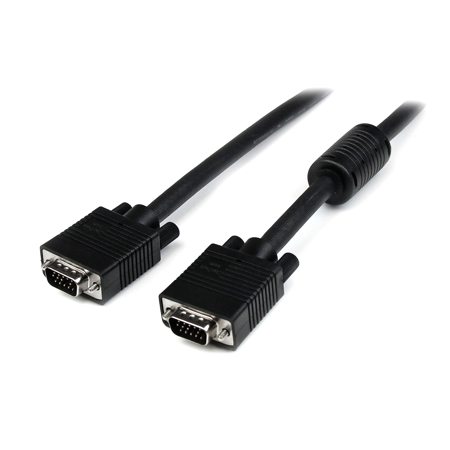

StarTech 10' Coax High Resolution Monitor VGA Cable with 15 Pin High Density D-Sub Male Connectors, 28 AWG

SKU: STT101MMHQ10 MFR: MXT101MMHQ10
$15.99
Earn VIP Reward Points

Key Features

  • Experience crystal-clear video with this 10ft VGA cable, perfect for high-resolution monitors.
  • Enjoy a reliable connection with our shielded VGA cable, preventing signal loss and interference.
  • This high-quality VGA cable supports resolutions up to 1920x1200 for crisp, detailed images.
  • Connect your older devices easily using this male to male VGA cable, a versatile solution.
  • Built to last, this durable VGA cable features nickel connectors and a flexible PVC jacket.
  • Upgrade your display setup with this 10-foot VGA cable, providing ample reach and flexibility.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

StarTech 10' Coax High Resolution Monitor VGA Cable Specifications

  • Cable Jacket Type

    PVC - Polyvinyl Chloride

  • Cable Shield Type

    Aluminum-Mylar Foil with Braid

  • Connector Plating

    Nickel

  • Fire Rating

    CMG Rated (General Purpose)

  • Number of Conductors

    14

  • Number of Ferrites

    1

  • Impedance

    75Ohms

  • Connector A

    1x VGA (15 pin; High Density D-Sub) Male

  • Connector B

    1x VGA (15 pin; High Density D-Sub) Male

  • Humidity

    0 - 80 %RH

  • Cable Length

    10' / 3.05m

  • Wire Gauge

    28 AWG

  • Operating Temperature

    0 to 60 deg. C / 32 to 140 deg. F

  • Storage Temperature

    -20 to 80 deg. C / -4 to 176 deg. F

  • Regulatory Approvals

    UL2919

  • RoHS Complaint

    Yes

  • Maximum Connector Dimension

    1.3" / 33.02mm

  • Dimensions (H x W)

    0.8 x 1.3" / 20.32 x 33.02mm

  • Weight

    0.9lbs / 0.41kg

  • UPC Code

    065030812122

About StarTech 10' Coax High Resolution Monitor VGA Cable

Make your high-resolution visual experiences seamless with the MXT101MMHQ10 High Resolution VGA Cable. This 10-foot VGA cable is meticulously designed to deliver the highest video quality through VGA, making it the perfect choice for high-resolution applications of 1920x1200 and above.

Constructed with durability in mind, this coaxial VGA video cable features HD15 to HD15 connectors, ensuring a clear and stable connection. It effectively eliminates the "ghosting" and fuzzy images often associated with non-coaxial VGA cables, providing you with a crystal-clear display every time.

The cable's triple-coaxial and twisted-pair wire construction ensures a clear display, while the high-quality HD15 connectors provide a secure connection. The cable is impedance matched at 75 Ohms, ensuring full brightness and vibrant picture color from your VGA monitor.

This VGA cable is not just about delivering high-quality visuals; it's also built to last. The high-quality VGA connectors feature molded PVC strain relief, ensuring the cable can withstand regular use without compromising its performance.

Whether you're looking to replace a worn-out VGA monitor cable or connect a high-resolution display to a Desktop PC or video switch, this high-quality, coax VGA cable is up to the task. It supports high-resolution VGA monitors (1920x1200), making it suitable for a wide range of applications.

The cable also features ferrite cores near the connector ends, providing superior EMI interference protection. This ensures your visual experience is free from any interference, delivering a clear and stable image.

Backed by StarTech's lifetime warranty, the MXT101MMHQ10 High Resolution VGA Cable is designed to extend your VGA signal to work with your monitor, splitters, and projectors, supporting high-resolution VGA video (1920x1200 or above). Experience the difference in visual quality and reliability with this premium VGA cable.

StarTech 10' Coax High Resolution Monitor VGA Cable Features

  • High-resolution support for VGA displays up to 1920x1200, ideal for professional and graphic-intensive applications
  • Durable coaxial VGA cable construction with HD15 connectors, ensuring longevity and reliability
  • Triple-coaxial and twisted-pair wire design for a crystal-clear display without ghosting or fuzziness
  • Ferrite cores near connector ends to minimize electromagnetic interference and maintain signal integrity
  • Impedance matched at 75 Ohms for vibrant picture color & optimal brightness from your VGA monitor
  • Molded PVC strain relief on VGA connectors for added cable protection and extended performance

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Experience crystal-clear video with this 10ft VGA cable, perfect for high-resolution monitors.
  • Enjoy a reliable connection with our shielded VGA cable, preventing signal loss and interference.
  • This high-quality VGA cable supports resolutions up to 1920x1200 for crisp, detailed images.
  • Connect your older devices easily using this male to male VGA cable, a versatile solution.
  • Built to last, this durable VGA cable features nickel connectors and a flexible PVC jacket.
  • Upgrade your display setup with this 10-foot VGA cable, providing ample reach and flexibility.

What's in the box:

  • StarTech 10' Coax High Resolution Monitor VGA Cable
  • 2x Nuts
  • StarTech Lifetime Warranty
