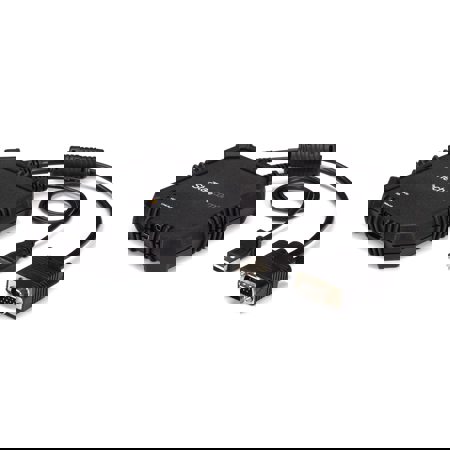

StarTech Laptop to Server KVM Console Rugged USB Crash Cart Adapter

SKU: STTECONS02X MFR: NOTECONS02X
Earn VIP Reward Points

Key Features

  • Quickly access servers with this portable USB crash cart adapter for on-the-go troubleshooting.
  • This KVM console adapter supports VGA for video and USB for keyboard/mouse connections.
  • Simplify server maintenance using this USB KVM adapter, compatible with Windows, Mac & Linux.
  • Enjoy a high resolution of 1920x1200 at 60Hz with this reliable laptop-to-server adapter.
  • This rugged USB crash cart adapter is USB-powered, eliminating the need for external power.
  • Connect to your server via USB and VGA with this portable KVM, featuring a durable design.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-12-23T19:00:00

Rated 1 out of 5

Awful

On Windows 11, this is useless. No video because the keyboard/mouse doesn't work. Can't follow your instructions to change from USB to PS2--greyed out. If you plug in a keyboard, the video will activate with a space bar. I've tried 3 Dell servers and a new Windows 11 Dell laptop and a Windows 10 Lenovo laptop. Same behavior. I think this has to go back to Amazon. Waste of $550.

BlueVaGto

2020-12-08T19:00:00

Rated 4 out of 5

I wish we could use this, but...

I am in the Military and work on a lot of secure systems with secure laptops. We use the NOTECONS01, which is a great tool to KVM into our servers with. The military does not allow USB mass storage drivers or file transfer through USB. The NOTECONS02X allows file transfer between the server it's plugged into and the laptop, which would be a major security violation on our networks. We'd love to upgrade to this device, but cannot due to this feature. We'll be sticking with the NOTECONS01 till a model comes out that does not support the file transfer options. Hope they don't stop making it till that happens.

Joshua H.

2018-11-01T20:00:00

Rated 5 out of 5

Invaluable for working in the field!

We purchased these because we often need to console a system in the field and console using the lights out management interface isn't reliable. With this KVM Console we can use our laptops to access the console on our systems in the field instead of configuring remote console over Ethernet and relying on out of band management to access our system consoles.

richc

2017-10-06T20:00:00

Rated 3 out of 5

Needs improvement.

KVM usually works. Mac Software: Right now I upgraded to High Sierra and the software stopped working. Trying to find a solution. Before that I often have to reset the video to get it to take a change in resolution during POST on some servers rather that automatically. The MAC software could use more keys (del) on the optional key window or user selectable keys to keep handy. Also the keys should be mapped to button in the window title and not in a separate window. It is nice that I can get to F keys which on a Mac is a bit of a pain to use the keyboard since they default to other functions. Could also use a Video reset button. Also could scale the video captured to scale to the current window size. It does to some degree but has grey areas around the video if the resolution is smaller than the window. Hardware: It is fairly rugged. It has 2 wire connections on one side (console side) and a USB plug hole on the other. So I have to fiddle with unplugging the USB and trying to coil up the cords on the other side which includes a giant RFI core on the Video cable and the giant video cable end. Its ends up being messier than it should be to be put in a backpack. Also if and pins get bent on the 15 pin VGA cord you are done with no way to repair. It would be a huge improvement if the console side (VGA / USB) had just connectors so you could 1) use any cable length you want 2) allow you to replace the video cable once they inevitably wear out due to a large number of insertion cycles and normal wear and tear. As it is the video cable is short and after a so many insertion cycles won't stay in the connectors under its own weight. If I could just plug a cable of my choice in, I could rest it on the floor with a longer set of cables. I did purchase VGA and USB extension cables that help but the connections are again a disturbance in ability to coil up when done. Over all this needs improvement. 1 Mac Software needs Video reset button to affect sensed resolution on console window or better detection in the first place 2 Video capture should scale up if window is bigger than the capture. 3 Mac Software needs User define-able keys on for extra keys (lots of keys I don't use and 1 I don't have (del key)). 4 Mac on screen hot keys should be allowed in the title bar as compared to another window. 5 Hardware needs video connectors directly on the unit for all 3 cables. 6 Case could use a design that allows cables to be wrapped around it for storage / transportation. But right now this is probably the best portable console you can get right now. So I am not directing you to anything else. Just hope Star Tech upgrades this thing before someone comes along and makes a better one.

radmanrugg

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech Laptop to Server KVM Console Rugged USB Crash Cart Adapter Specifications

  • Audio

    No

  • Cables Included

    Yes

  • Daisy-Chain

    No

  • KVM Ports

    1

  • Multi-Monitor

    No

  • PC Interface

    USB

  • PC Video Type

    VGA

  • Rack-Mountable

    No

  • Hot-Key Selection

    No

  • IP Control

    No

  • Maximum Analog Resolutions

    1920x1200 at 60Hz

  • Maximum Number of Users

    1

  • Console Interfaces

    1x USB Mini-B (5 pin) Female Input

  • Host Connectors

    1x USB A (4 pin) Male
    1x VGA (15 pin; High Density D-Sub) Male

  • OS Compatibility

    Windows 10 (32/64bit), 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64)
    Windows Server 2012, 2012 R2, 2008 R2
    Mac OS 10.x (Tested up to 10.11)
    Linux 2.6 - 4.4 (32/64bit) stable only

  • LED Indicators

    1x Host/Server Keyboard/Mouse USB Link
    1x Host/Server Video (VGA) Link
    1x User Console/USB Link

  • Power Source

    USB-Powered

  • Enclosure Type

    Plastic

  • Certifications

    RoHS Compliant
    CE
    FC

  • Humidity

    80% RH

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -40 to 70 deg. C / -40 to 158 deg. F

  • Cable Length

    16.4" / 41.66cm
    1 x 15" / 38.10cm USB host cable, 1 x 3" / 7.62cm VGA host cable, 1 x 6' / 1.83m USB Console cable

  • Depth

    4.5 in [115 mm]

  • Dimensions (H x L x W)

    0.9 x 4.9 x 3.5" / 2.29 x 12.45 x 8.89cm

  • Weight

    8.6oz / 243.81g

  • UPC Code

    065030862240

About StarTech Laptop to Server KVM Console Rugged USB Crash Cart Adapter

FEATURED REVIEWS

Invaluable for working in the field!

By richc

We purchased these because we often need to console a system in the field and console using the lights out management interface isn't reliable. With this KVM Console we can use our laptops to access the console on our systems in the field instead of configuring remote console over Ethernet and relying on out of band management to access our system consoles.

What you're looking at is a robust and portable Laptop to Server KVM Console Rugged USB Crash Cart Adapter, designed to transform your laptop into a versatile console for accessing a wide range of computing devices. This includes servers, desktops, laptops, ATMs, kiosks, and any device equipped with VGA and USB ports.

The adapter is not just a connectivity tool, but also a powerful software solution that supports local file transfer and video capturing. Encased in a durable, rubberized housing, this crash cart adapter is built to withstand shocks and drops, ensuring reliable performance even in challenging conditions.

The compact design of this USB crash cart adapter makes it a perfect companion for on-the-go professionals. Its built-in KVM cables and USB power eliminate the need for additional accessories or power adapters, making it a truly plug-and-play solution. The cables are designed with strain relief to prevent wear and tear, further enhancing the adapter's longevity.

This crash cart adapter is optimized for user-friendly operation. It allows you to easily connect to your server using the integrated USB and VGA cables. Once connected, you can transfer files, capture video activity, take screenshots, and adjust the display window size for optimal viewing, all without encountering scroll bars.

The adapter supports high-resolution displays up to 1920x1200 and features LED indicators for USB, video, and console link. It's compatible with both legacy and industrial devices, offering universal connectivity without the need for server-side software installation.

Whether you're traveling to remote server rooms for on-site maintenance, performing routine diagnostics and repairs, or accessing headless servers and other computers that don't support a monitor, keyboard, or mouse, this Laptop to Server KVM Console Rugged USB Crash Cart Adapter is your reliable partner. It's backed by a StarTech 2-year warranty and comes with free lifetime technical support.

StarTech Laptop to Server KVM Console Rugged USB Crash Cart Adapter Features

  • Robust and portable USB Crash Cart Adapter for laptop-to-server console conversion
  • Supports local file transfer, video capturing, and high-resolution displays up to 1920x1200
  • Durable, shock-absorbent rubberized housing for enhanced longevity
  • Compact design with built-in KVM cables and USB power for maximum portability
  • User-friendly operation with adjustable display window size and LED indicators
  • Universal connectivity with VGA and USB port-equipped devices, no server-side software installation required

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Quickly access servers with this portable USB crash cart adapter for on-the-go troubleshooting.
  • This KVM console adapter supports VGA for video and USB for keyboard/mouse connections.
  • Simplify server maintenance using this USB KVM adapter, compatible with Windows, Mac & Linux.
  • Enjoy a high resolution of 1920x1200 at 60Hz with this reliable laptop-to-server adapter.
  • This rugged USB crash cart adapter is USB-powered, eliminating the need for external power.
  • Connect to your server via USB and VGA with this portable KVM, featuring a durable design.

What's in the box:

  • StarTech Laptop to Server KVM Console Rugged USB Crash Cart Adapter
  • USB A to Mini-B Cable
  • USB Software Key
  • Quick Start Guide
  • StarTech 2 Year Warranty
