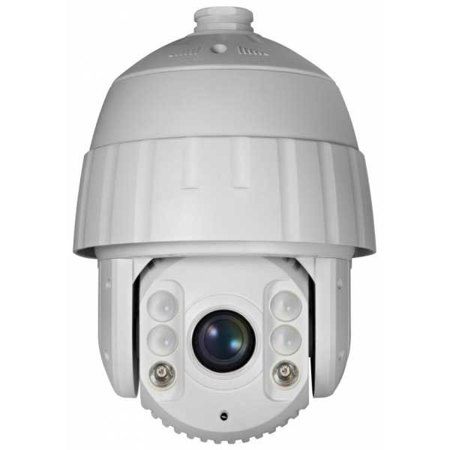

Securitytronix 2MP HD-TVI Outdoor Day & Night IR PTZ Camera
See all Securitytronix items

Securitytronix 2MP HD-TVI Outdoor Day & Night IR PTZ Camera, 23x Optical Zoom, 25/30fps

SKU: STTVIAP312IR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix TVI-AP312-IR Specifications

  • Image Sensor

    1/3" CMOS

  • Max. Image Resolution

    1920x1080

  • Frame Rate

    50Hz:25fps(1920x1080)
    60Hz:30fps(1920x1080)

  • Min. Illumination

    Color: 0.02Lux at (F1.6, AGC ON)
    B/W: 0.002Lux at (F1.6, AGC ON)
    0 lux with IR

  • White Balance

    Auto / Manual / ATW / Indoor / Outdoor

  • AGC

    Auto/Manual

  • S / N Ratio

    >= 50dB

  • 3D DNR

    Supported

  • Backlight Compensation

    Supported

  • WDR

    Digital WDR

  • Shutter Time

    NTSC: 1-1/10, 000s

  • Day & Night

    IR Cut Filter

  • Digital Zoom

    16x

  • Privacy Mask

    8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen

  • Focus Model

    Auto / Semiautomatic / Manual

  • Focal Length

    4 - 120mm, 23X

  • Zoom Speed

    Approx.3.0s (Optical Wide-Tele)

  • Angle of View

    49-2.2 degree (Wide-Tele)

  • Min. Working Distance

    10-1500mm (Wide-Tele)

  • Aperture

    F1.6 - F3.7

  • Pan Range

    360 deg. endless

  • Pan Speed

    Pan Manual Speed: 0.1 deg.-160 deg./s
    Pan Preset Speed: 240 deg./s

  • Tilt Range

    -15 deg. - 90 deg. (Auto Flip )

  • Tilt Speed

    Tilt Manual Speed: 0.1 deg.-120 deg./s
    Tilt Preset Speed: 200 deg./s

  • Proportional Zoom

    Rotation speed can be adjusted automatically according to zoom multiples

  • Number of Preset

    256

  • Patrol

    8 patrols, up to 32 presets per patrol

  • Pattern

    4 patterns, with the total recording time not less than 10 minutes

  • Power-off Memory

    Supported

  • Park Action

    Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan

  • PTZ Position Display

    On / Off

  • Preset Freezing

    Supported

  • Scheduled Task

    Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan

  • RS-485

    Supported

  • IR Distance

    398' (121.31m)

  • IR Intensity

    Automatically adjusted, according to zoom ratio

  • Monitor Output

    1 turbo HD1080p output

  • RS-485 Interface

    Half-duplex mode

  • Menu Language

    English, Chinese

  • Power Supply

    24VAC (Included)
    Max. 30W(IR: 9W, Heater: 6W)

  • Operating Temperature

    -30 to 65 deg. C (-22 to 149 deg. F)

  • Humidity

    90% or less

  • Protection Level

    IP66 standard
    TVS 4, 000V lightning protection, surge protection and voltage transient protection

  • Dimensions

    220 x 353.4mm (8.66 x 13.91")

  • Weight

    9.92 lbs (4.50kg) (approx.)

About Securitytronix TVI-AP312-IR

IR Functions
• 0 Lux minimum illumination
• Up to 398 Foot IR range
• IR light MTBF up to 30,000 hours

System Functions
• 1/3" high performance CMOS, up to 1920x1280 resolution
• +/-0.1deg. Preset Accuracy
• Self-adaptive to Pelco-P/D protocol
• 3D intelligent positioning function
• Power-off memory function: restores PTZ & Lens status after reboot
• Built-in temperature sensor, with internal temperature display
• Lightning protection, surge protection and voltage transient protection
• IP66 Weather rating
• RS-485 communication diagnosis
• Scheduled PTZ movement
• UTC (Up the Coax) function

Camera Functions
• Auto focus
• Auto white balance
• Backlight compensation
• Auto/manual day & night switch
• Programmable privacy masks
• 3D Digital Noise Reduction
• Digital Wide Dynamic Range

PTZ Functions
• 360deg. endless pan range and -15deg. -90deg. tilt range
• 240deg. /s Pan Preset Speed and 200deg. /s Tilt Preset Speed
• 0.1deg. -160deg. /s Manual Pan Speed and 0.1deg. 120deg. /s Manual Tilt Speed
• 256 Programmable presets
• Preset image freezing capability
• 8 patrols, up to 32 presets per patrol
• 4 patterns, with the total recording time not less than 10 minutes
• Proportional zoom function
• Park action: auto call up of PTZ movement, after a defined time of inactivity

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix 2MP HD-TVI Outdoor Day & Night IR PTZ Camera
  • Power Supply
  • Securitytronix 1 Year Limited Warranty
