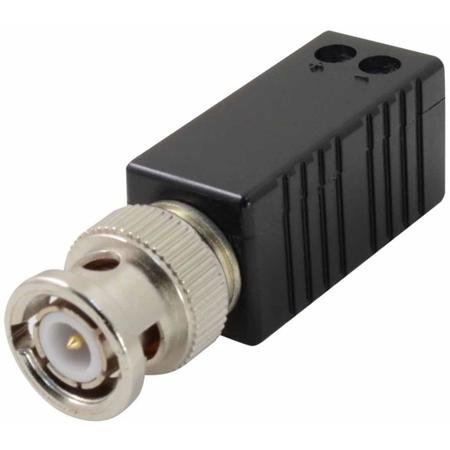

Speco Technologies HD-TVI Video Transceiver over UTP Cable
See all Speco Technologies items

Speco Technologies HD-TVI Video Transceiver over UTP Cable, 656' Transmission Distance

SKU: STTVIUTP
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-07-01T07:05:39

Rated 4 out of 5

I was not familiar with the bayonet fitting so I purchase the wrong ones

they ship me what i order and keep me from of the shipping date I could expect to rec. items.

Alfio I.

Speco Technologies Transceiver Specifications

  • Video Input (BNC Connector)

    1

  • Video Input

    1Vp-p, 75Ohms

  • Cable

    Twisted Pair CAT 5

  • Bandwidth

    50Hz - 60MHz ( -3dB )

  • Transmission Distance

    HD-TVI: 656' / 199.95m

  • RJ-45 Output

    Terminal

  • ESD Protection

    30 KV(Air) I 15 KV (Contact) ; IEC 61000-4-2 compliant

  • EFT Protection

    40A(5/50ns) ; IEC 61000-4-4 compliant

  • Lighting Protection

    2A (8/20Mus) ; IEC 61000-4-5 compliant

  • Surge Protection Attack Time

    < 1 nS

  • Operating Temperature

    32 to 131 deg. F / 0 to 55 deg. C

  • Storage Temperature

    -4 to 185 deg. F / -20 to 85 deg. C

  • Storage Humidity

    Up to 95%

  • Dimensions (W x H x L)

    0.6 x 2 x 0.6" / 15.24 x 50.80 x 15.24mm

  • Weight

    0.64oz / 18.14g

  • UPC Code

    030519017237

About Speco Technologies Transceiver

• Send HD-TVI signal up to 656' (200M) over UTP cable.
• BNC male to screw terminal for easy connection.
• Compact size allows mounting of multiple units behind multiplexers, Quads, DVRs, etc.
• Passive, No power required.
• Ideal for retrofits using existing UTP cable.
• Built in ESD, EFT (impulse noise), lightning (surge) and transient protection.
• Sold individually but used in pairs. Could be used in conjunction with another TVIUTP or with the pigtail model TVIUTPPT.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies HD-TVI Video Transceiver over UTP Cable
  • Speco Technologies 1 Year Limited Warranty
