StarTech USB 3.0 to DVI External Video Card Multi Monitor Adapter
See all StarTech items

StarTech USB 3.0 to DVI External Video Card Multi Monitor Adapter with 1-Port USB Hub

SKU: STUSB32DVIEH

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-06-25T20:00:00

Rated 4 out of 5

Good Quality Product deserved a review.

Have had this specific one for YEARS now, At least 4 years maybe going on 6. On the rare seemingly random occasions it is needed. It proves to come in very handy. Often its because i cant or want to avoid get behind a system to get at the graphics port. Quality is awesome; time as proven that. The extra USB 3.0 port allows for a thumb drive dedicated to this device. Being USB 3.0 it is still fast and relevant for some high speed temp storage. (The driver has not been integrated into Windows 10 so that little drive with the drivers found on this site has been vital many many times over when there is no internet available.) Good product. Expensive but quality and deserved a good review.

Digital D.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

StarTech USB 3.0 to DVI External Video Card Multi Monitor Adapter Specifications

  • Audio

    No

  • USB Pass-Through

    Yes

  • Memory

    16MB DDR II

  • Industry Standards

    SuperSpeed USB 3.0, USB 2.0

  • Chipset ID

    MCT Trigger 5 T5-302

  • Output Signal

    DVI-I (DVI Digital/Analog)

  • Connector A

    1 - USB 3.0 A (9 pin; SuperSpeed) Male

  • Connector B

    1 - DVI-I (29 pin) Female
    1 - USB 3.0 A (9 pin; SuperSpeed) Female

  • Maximum Analog Resolutions

    1920x1200

  • Maximum Digital Resolutions

    1920x1200

  • Supported Resolutions

    Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720
    Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600

  • Wide Screen Supported

    Yes

  • OS Compatibility

    Windows 8/8.1 (32/64)
    Windows 7(32/64)
    Windows Vista (32/64)
    Windows XP (32/64)
    Drivers are WHQL certified

  • Microsoft WHQL Certified

    Yes

  • System and Cable Requirements

    CPU: i3 Dual core 2.8GHz
    RAM: 2GB or higher
    Full HD Video:
    CPU: Quad Core 2.4GHz or Higher (i5 recommended)
    RAM: 4GB or higher

  • Enclosure Type

    Plastic

  • Cable Length

    6.3" / 16.00cm

  • Operating Temperature

    0 deg. C to 50 deg. C (32 deg. F to 122 deg. F)

  • Storage Temperature

    -10 deg. C to 75 deg. C (14 deg. F to 167 deg. F)

  • Humidity

    < 85% non-condensing

  • Dimensions (L x W x H)

    3.3 x 1.9 x 0.7" / 8.38 x 4.82 x 1.77cm

  • Weight

    2.6oz / 73.70g

  • UPC Code

    065030849760

About StarTech USB 3.0 to DVI External Video Card Multi Monitor Adapter

The StarTech USB32DVIEH USB 3.0 to DVI Adapter turns an available USB 3.0 port into a DVI output port with high resolution 1920x1200 video support. The adapter features built-in USB 3.0 pass-through, which offers a connection port in place of the USB port used for connecting the DVI adapter - an ideal workaround for Ultrabook or laptop users where only a limited number of USB ports are available. The USB to DVI adapter functions as an external graphics card, providing a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0). The included DVI to VGA adapter also allows you to use this device with a VGA display.

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your DVI display / projector. The adapter can be used to mirror your primary desktop, showing the same image on each display or to extend your desktop to double your workspace and increase your productivity.

StarTech USB 3.0 to DVI External Video Card Multi Monitor Adapter Features

  • Supports resolutions up to 1920x1200
  • Built in 1-Port USB 3.0 Hub
  • SuperSpeed USB 3.0 (5 Gbps) Interface, backward compatible with USB 2.0
  • Quick, easy installation
  • USB-powered - No external power adapter required
  • Choose between Mirrored, Extended or Primary display configurations
  • Driver software supports display rotation
  • Supports the use of multiple USB32DVIEH adapters on a single system (up to 5)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Supports resolutions up to 1920x1200
  • Built in 1-Port USB 3.0 Hub
  • SuperSpeed USB 3.0 (5 Gbps) Interface, backward compatible with USB 2.0
  • Quick, easy installation
  • USB-powered
  • No external power adapter required

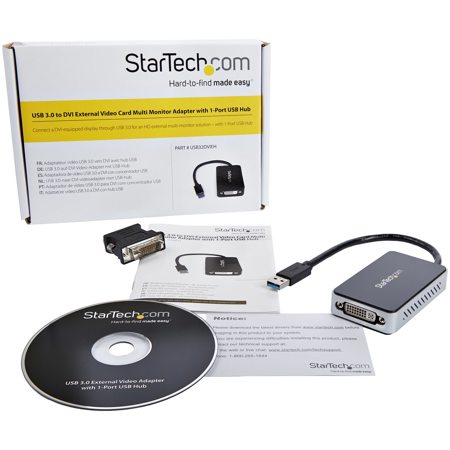

What's in the box:

  • StarTech USB 3.0 to DVI External Video Card Multi Monitor Adapter
  • DVI to VGA Adapter
  • Software CD
  • Manual
  • StarTech 2 Year Warranty
