Yes
Yes
8
No
USB
VGA
Yes
1U
Yes
No
1920 x 1440 at 60Hz (1920 x 1200 at 60Hz - Wide Screen)
64
1
Push Button, Hotkeys andOSD (On Screen Display)
Yes
1x VGA (15 pin; High Density D-Sub) Female
2x 3.5 mm Mini-Jack (3 Position) Female
2x USB A (4 pin) Female
16x 3.5 mm Mini-Jack (3 Position) Female
8x VGA (15 pin; High Density D-Sub) Female
OS independent; No software or drivers required
1x Green - Power
8x Green - Online PC
8x Red - Selected PC
Positive
1.8A
110 to 240 AC
4A
12 DC
M
80% RH
5 to 40 deg. C / 41 to 104 deg. F
-20 to 60 deg. C / -4 to 140 deg. F
Steel
RoHS Complaint
CE
FC
7.1 x 1.8 x 21.3" / 180.34 x 45.72 x 541.02mm
91.8oz / 2602.48g
065030837248

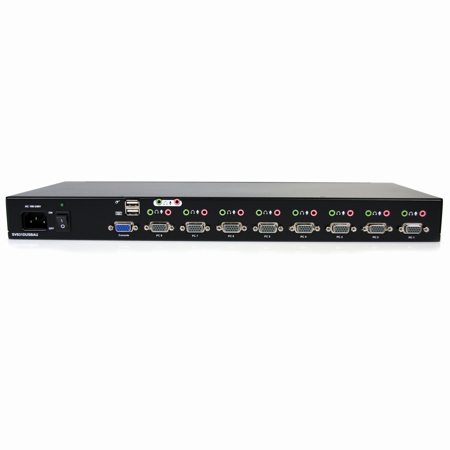

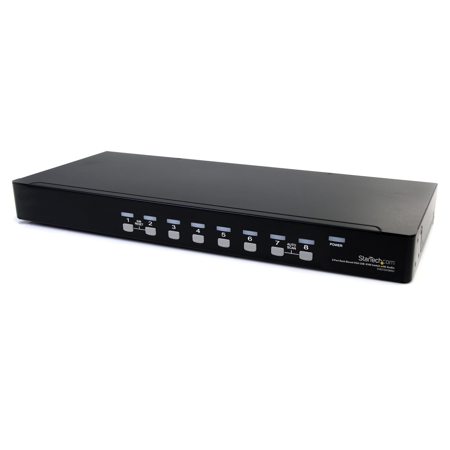

Make the management of multiple USB computers streamlined and efficient with the SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch with Audio. This high-quality, durable KVM switch enables you to control up to eight USB computers with a single keyboard, mouse, and monitor setup, while also offering the convenience of switching between audio and microphone signals. The inclusion of audio cables provides a comprehensive solution for both visual and auditory input and output.
Designed with a slim 1U rack mountable form factor, this reliable KVM switch is built to fit seamlessly into space-saving cabinets and withstand harsh environments, thanks to its rugged, all-metal chassis. User-friendly features such as Hotkey and front panel push-button switching make operation effortless, while the on-screen display (OSD) menu allows for easy naming and selection of connected computers. Security is also a priority, with the OSD offering password protection for each PC.
The SV831DUSBAU supports a wide range of resolutions, including wide screen resolutions up to 1920x1200 and 4:3 resolutions up to 1920x1440, ensuring compatibility with various display types and sizes. The auto-scan function provides a hands-free way to monitor connected computers sequentially, and for larger setups, the cascade configuration can expand system capability, allowing control of up to 64 computers.
This efficient KVM switch is plug-and-play, requiring no additional software for system configuration, and supports USB keyboard and mouse combos through a single USB connection. For added versatility, multiple KVM units can be connected for control of numerous systems, making it an ideal solution for data centers, server farms, manufacturing lines, security and DVR control systems, and software QA labs.
Experience the advantage of a user-friendly, streamlined access solution with the SV831DUSBAU 8 Port USB VGA KVM Switch. Its robust 1U metal chassis ensures longevity and adaptability to any professional setting, while the intuitive OSD interface minimizes configuration time and enhances user experience. This KVM switch is not only efficient but also supports hot-key functionality for wireless keyboard and mouse combos, making it a versatile choice for modern, multi-device environments.
