StarTech High Resolution VGA to Composite/S-Video Converter
See all StarTech items

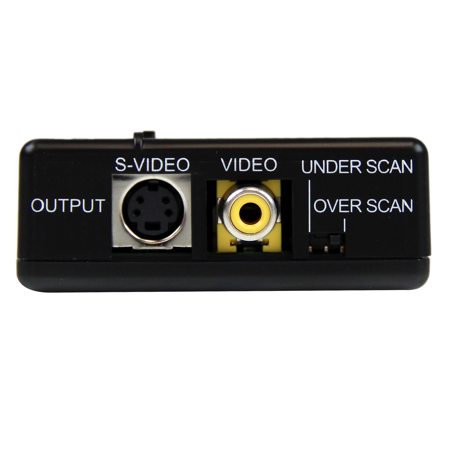

StarTech High Resolution VGA to Composite/S-Video Converter

SKU: STVGA2VID

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2016-08-19T08:41:27

Rated 4 out of 5

We have tested this unit and with less than 20 hours of testing and operation have found none of the usual faults common with these converters

We have tested this unit and with less than 20 hours of testing and operation have found none of the usual faults common with these converters

JOHN F.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

StarTech High Resolution VGA to Composite/S-Video Converter Specifications

  • Converter Type

    Format Converter

  • Connector A

    1 - VGA (15 pin; High Density D-Sub) Female

  • Connector B

    1 - Composite Video (1 x RCA) Female
    1 - S-Video (4 pin; Mini-DIN) Female

  • Supported Resolutions

    PC Input - Up to 1600x1200 at 60Hz Output - 640x480

  • MTBF

    10,000 Hours

  • Input Voltage

    5 DC

  • Center Tip Polarity

    Positive

  • Operating Temperature

    0 deg. C to 70 deg. C (32 deg. F to 158 deg. F)

  • Dimensions (L x W x H)

    3.9 x 2.5 x 0.7" / 99.06 x 63.5 x 17.78mm

  • Weight

    3.5oz / 99.22g

  • UPC Code

    065030830591

About StarTech High Resolution VGA to Composite/S-Video Converter

This StarTech High Resolution VGA to Composite or S-Video Converter is a simple hardware solution that allows you to convert a VGA/PC video signal into a Composite or S-Video signal for use with a CRT or flat panel display. The ideal solution for synchronizing monitors with television displays etc., the VGA to Composite/S-Video Converter offers selectable NTSC or PAL format operating modes to ensure compatibility with virtually any configuration.

StarTech High Resolution VGA to Composite/S-Video Converter Features

  • High resolution inputs from your PC up to 1600x1200
  • Provides output in both composite and S-Video formats
  • Supports NTSC and PAL compatible displays
  • Image under scan and over scan selectable switch
  • Pure hardware design provides an easy to use and install solution
  • Automatic detection the scan rate and resolution of the incoming graphic signals without the use of software saves time and hassle
  • With support for high resolutions and automatic scaling there is no need to lower resolution settings on your PC
  • An inexpensive way to increase the size of a computer display
  • Displays computer screen images on your TV
  • Great for boardroom meetings, tradeshows, lectures and CRT digital signage solutions
  • Use your TV to display computer presentations, surfing the Internet, playing video games and more

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High resolution inputs from your PC up to 1600x1200
  • Provides output in both composite & S-Video formats
  • Supports NTSC & PAL compatible displays
  • Image under scan & over scan selectable switch
  • Pure hardware design provides an easy to use & install solution
  • Includes support for high resolutions & automatic scaling there is no need to lower resolution settings on your PC

What's in the box:

  • StarTech High Resolution VGA to Composite/S-Video Converter
  • Universal Power Adapter (US/UK/EU/AUS)
  • User Manual
  • StarTech 2 Year Warranty
