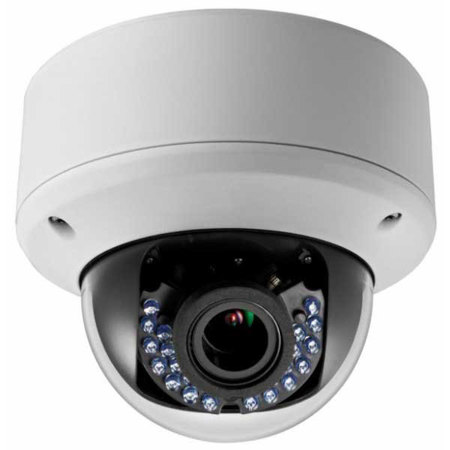

Securitytronix TVI-AC314D Outdoor Day & Night 2MP HD-TVI IR Dome Camera, White
See all Securitytronix items

Securitytronix TVI-AC314D Outdoor Day & Night 2MP HD-TVI IR Dome Camera, 2.8-12mm Motorized Lens, 30fps, Up to 131' IR Distance, Vandal Resistant, White

SKU: STVIA314DOD4

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix TVI-AC314D Specifications

  • Image sensor

    1/2.8" Progressive Scan CMOS

  • Effective Pixels

    1930(H) x 1088(V)

  • Min. Illumination

    0.01 Lux at (F1.2,AGC ON),0 Lux with IR on

  • Shutter Time

    1/25(1/30) s to 1/50,000 s

  • Lens

    Motorized VF lens; 2.8 - 12 mm at F1.4
    Angle of view: 105.2 deg. - 32.8 deg.

  • Angle Adjustment

    Pan: 0 - 355 deg., Tilt: 0 - 90 deg., Rotation: 0-355 deg.

  • Day & Night

    ICR

  • Synchronization

    Internal synchronization

  • Video Frame Rate

    1080p at 25fps/1080p at 30fps

  • HD Video Output

    1 turbo HD output

  • S/N Ratio

    More than 52dB

  • Camera ID

    On/off (0-255)

  • AGC

    Supported

  • D/N Mode

    Color/BW/Auto/EXT

  • White Balance

    Auto/User/Push/8000K/6000K/4200K/3000K

  • Privacy Mask

    On/Off, maximum 2 zones

  • Motion Detection

    On/Off, maximum 4 zones

  • BLC

    Supported

  • Anti-flicker

    On/Off

  • Language

    English/Chinese

  • Functions

    Digital noise reduction, Mirror

  • Working Temperature

    -40 to 60 deg. C (-40 to 140 deg. F)

  • Humidity

    90% or less (non-condensing)

  • Power Supply

    12 VDC / 24 VAC (not included)

  • Power Consumption

    Max. 5W

  • Weather Proof Ratings

    IP66

  • IR Range

    Up to 131' (39.93m)

  • Impact Protection

    IK10

  • Communication

    Up the coax

  • Dimensions

    5.72 x 4.9" (14.53 x 12.45cm)

  • Weight

    2.03 lbs (0.92kg) (approximate)

About Securitytronix TVI-AC314D

• 2MP High Resolution
• Incorporates HD-TVI to provide HD 1080p video over coaxial cable
• Motorized 2.8mm - 12.0mm vari-focal lens
• True Day/Night, Smart IR
• IR Distance up to 131 Feet
• On Screen Display menu
• IP66 Weather rating
• IK10 Vandal rating
• 12VDC/24VAC Dual voltage powering capability

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Securitytronix TVI-AC314D Outdoor Day & Night 2MP HD-TVI IR Dome Camera
  • Securitytronix 2 Year Limited Warranty
