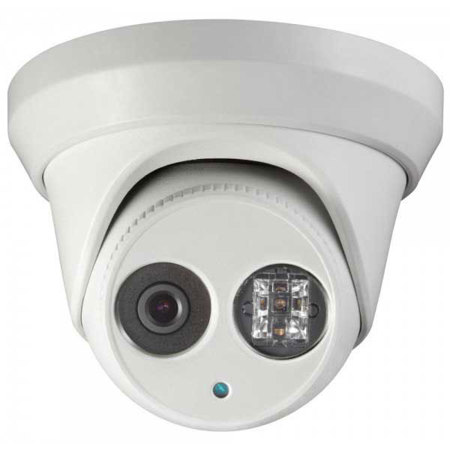

Securitytronix TVI-AC314-FD4 Outdoor Day & Night 2MP HD-TVI IR Turret Dome Camera, 3.6mm Fixed Lens, 25/30fps

SKU: STVIAC314FD4

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Securitytronix TVI-AC314-FD4 Specifications

  • Image Sensor

    2MP CMOS Image Sensor

  • Effective Pixels

    HxV: 1984x1105

  • Min. Illumination

    0.01 Lux at (F1.2, AGC ON), 0 Lux with IR on

  • Shutter Speed

    1/25(1/30)s to 1/50, 000s

  • Lens

    3.6mm Fixed Lens

  • Lens Mount

    M12

  • Angle Adjustment

    Pan: 0 - 360 deg., Tilt: 0 - 75 deg., Rotation: 0-360 deg.

  • Day & Night

    ICR

  • Synchronization

    Internal synchronization

  • Video Frame Rate

    1080p at 25fps/1080p at 30fps

  • HD Video Output

    1 turbo HD output

  • S/N Ratio

    More than 62dB

  • AGC

    High/Medium/Low/Off

  • D/N Mode

    Smart IR/Color/BW

  • White Balance

    Auto/Manual

  • BLC

    Supported

  • Language

    English

  • Functions

    Digital noise reduction, Mirror

  • Working Temperature

    -40 to 60 deg. C (-40 to 140 deg. F)

  • Humidity

    90% or less (non-condensing)

  • Power Supply

    12 VDC (not included)

  • Power Consumption

    Max. 4.5W

  • Weather Proof Ratings

    IP66

  • IR Range

    Up to 131' (39.93m)

  • Communication

    Up the coax

  • Dimensions

    110 x 93.2mm (4.33 x 3.67")

  • Weight

    0.78 lbs (0.35kg) (approximate)

About Securitytronix TVI-AC314-FD4

• 2MP High Resolution
• Incorporates HD-TVI to provide HD 1080p video over coaxial cable
• 3.6mm Fixed lens
• True Day/Night, Smart IR
• IR Distance up to 131 Feet
• On Screen Display menu
• IP66 Weather rating

What's in the box:

  • Securitytronix TVI-AC314-FD4 Outdoor Day & Night 2MP HD-TVI IR Turret Dome Camera
  • Securitytronix 2 Year Limited Warranty
