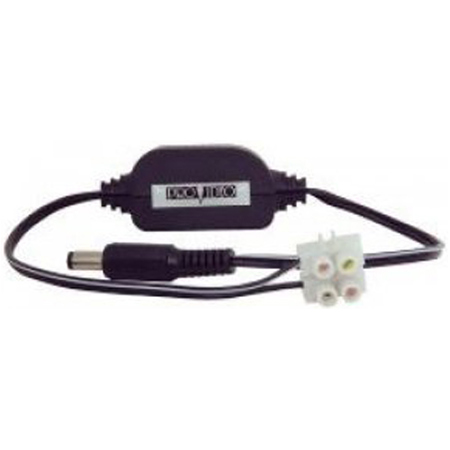

Speco Technologies 24VAC to 12VDC CCTV Power Converter with DC Plug Cable
See all Speco Technologies items

Speco Technologies 24VAC to 12VDC CCTV Power Converter with DC Plug Cable, 500mA

SKU: STVID2412CNV

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?David R : Installing small indicator requiring 10ma of 5-90VDC power at furnace thermostat which has 24VAC power available. A diode-1k resistor-capacitor would probably be fine but space is limited and I prefer to buy buy a single unit rather than several components. I have to hope this unit functions correctly on the small 10ma current, doesn’t require larger current to operate, though that is possible.

Reviews about this item

Review Summary

Speco Technologies Power Converter Specifications

  • Power Input

    20 to 28 VDC; 16 to 30 VDC

  • Power Output

    12 VDC regulated

  • Output Current

    500mA

  • Cable

    Input Side: 5.9", 22 AWG, 2-pin terminal block
    Output Side: 5.9", 22 AWG, DC plug

  • Dimensions

    Excluding cable and connector: 63 x 29 x 25mm / 2.48 x 1.14 x 0.98"

  • UPC Code

    030519416184

About Speco Technologies Power Converter

• AC to DC 12V Power Converter with DC plug cable 500mA max.
• AC14-AC24 to DC12V, DC15-DC30 to DC12V (Regulated).
• For DC type camera or video power sources convert using AC 24V for professional CCTV Industry installation.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies 24VAC to 12VDC CCTV Power Converter with DC Plug Cable
  • Speco Technologies 1 Year Limited Warranty
