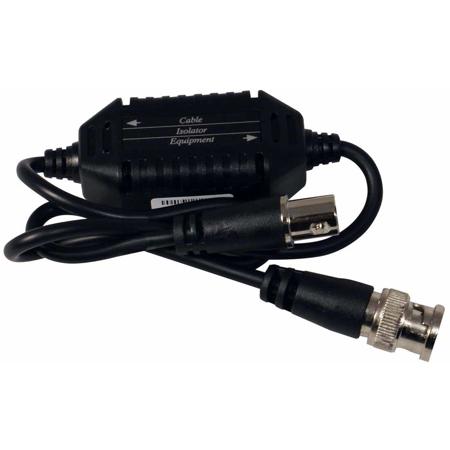

Speco Technologies Video Balun with Built-in Ground Loop Isolator
See all Speco Technologies items

Speco Technologies Video Balun with Built-in Ground Loop Isolator

SKU: STVIDGL
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies Video Balun with Built-in Ground Loop Isolator Specifications

  • Insertion Loss

    0.5dB

  • Frequency Response

    20Hz-10MHz (0-3dB)

  • Coaxial Input/Output Resistance

    75Ohms

  • Ground Isolation

    >90dB at >50Hz

  • Isolation Voltage

    DC 600V (Min)

  • Insulation Resistance

    100MOhms

  • Transient Voltage Suppressors

    12 Vrms

  • Dimensions (L x W x H)

    2.9 x 1.1 x 0.8" / 7.37 x 2.79 x 2.03cm with 6" x 2 Cable

  • Weight

    0.2lbs / 0.09kg

  • UPC Code

    030519404242

About Speco Technologies Video Balun with Built-in Ground Loop Isolator

The VIDGL Video Ground Loop Isolator is a passive device which reduces ground loop interference within CCTV signals. The VIDGL is useful where a video signal is transmitted via cable between points with different ground potentials(typically caused by unbalanced power line loads.)

Speco Technologies Video Balun with Built-in Ground Loop Isolator Features

  • BNC male to BNC male with 6 " (15cm) mini cable on both sides
  • Package includes a BNC female to BNC female connector
  • Prevents video distortion caused by ground loops , as well as picture tearing, cross - talk and rolling
  • Prevents power cables from interfering with the CCTV installation
  • Built in TVS (Transient Voltage Suppressors) for surge protection

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • BNC male to BNC male

What's in the box:

  • Speco Technologies Video Balun with Built-in Ground Loop Isolator
  • BNC Female to BNC Female Connector
  • Speco Technologies 1 Year Limited Warranty
