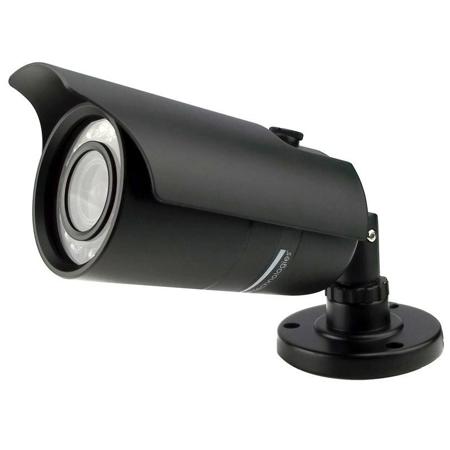

Speco Technologies VL66 960H Color Dual Voltage IR Bullet Camera, Black
See all Speco Technologies items

Speco Technologies VL66 960H Indoor/Outdoor Analog Color Dual Voltage IR Bullet Camera, 700 TVL, 2.8-12mm Auto Iris Varifocal Lens, Weather Resistant, Black

SKU: STVL66
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies VL66 Specifications

  • Image Sensor

    1/3" Sony Super HAD II 960H CCD

  • Resolution

    700 TV lines

  • Minimum Illumination

    0 lux with IR on / 0.001 lux IR off

  • Effective Pixels

    976 (H) x 494 (V)

  • Number of IR LEDs

    18

  • IR Range

    60 - 90' / 18.29 - 27.43m (depending on scene reflection)

  • IR LED Wavelength

    850nm

  • Iris

    Auto

  • Electronic Shutter Speed

    1/60 sec. - 1/100,000 sec.

  • Video S/N Ratio

    More than 52dB

  • Gamma

    0.45 typ.

  • Video Signal Output

    1.0Vp-p / 75Ohms

  • Scanning System

    2:1 interlace

  • Synchronization

    Internal

  • Backlight Compensation

    Yes

  • AGC

    Yes

  • Operating Temperature/Humidity

    -4 to 122 deg. F / -20 to 50 deg. C
    20% - 90% RH

  • Storage Temperature

    -14 to 158 deg. F / -26 to 70 deg. C

  • Power Consumption

    LED off: 120mA (12V), 90mA (24V)
    LED on: 280mA (12V), 220mA (24V)

  • Power Supply

    12VDC / 24VDC dual voltage operation (12VDC power supply included)

  • Housing

    Metal

  • Dimensions (L x H x Dia.)

    7.6 x 3.64 x 2.87" / 193.04 x 92.46 x 72.90mm

  • Weight

    15oz / 425.24g

  • UPC Code

    030519408813

About Speco Technologies VL66

• 2.8-12mm auto iris varifocal lens
• 1/3" Sony Super HAD II 960H CCD
• 700 TV lines of resolution
• Extreme weather resistant design is perfect for indoor or outdoor use (IP67)
• 90' IR range (depending on scene reflection), with CDS control for great pictures in low light conditions
• Color by day, BW by night - always get the best possible picture
• Mounting bracket included for wall, ceiling or pedestal use
• Weather resistant operation
• IP67 compliant
• Removable and adjustable sunshield
• 5 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies VL66 960H Indoor/Outdoor Analog Color Dual Voltage IR Bullet Camera
  • 12VDC Power Supply
  • Mounting Bracket
  • Sunshield
  • Speco Technologies 5 Year Limited Warranty
