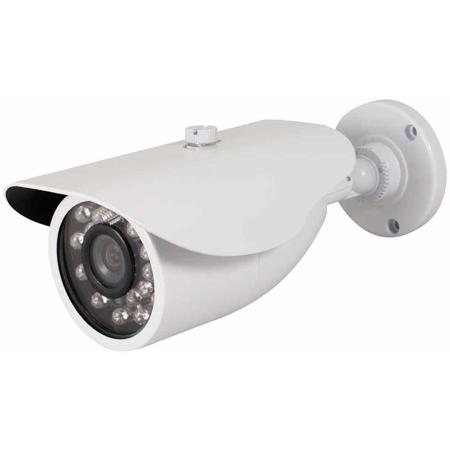

Speco Technologies VLEDB2H 960H Analog IR Bullet Camera, 3.6mm Lens, White
See all Speco Technologies items

Speco Technologies VLEDB2H 960H Indoor/Outdoor Analog IR Bullet Camera with 3.6mm Fixed Lens, 700 TVL, 65' IR Range, White

SKU: STVLEDB2HW
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies VLEDB2H Specifications

  • Image Sensor

    1/3" 960H CCD

  • Resolution

    700 TVL

  • Minimum Illumination

    0.01 lux
    0 lux with IR on

  • Signal Format

    NTSC

  • Effective Pixels

    976 (H) x 494 (V)

  • Number of LEDs

    24

  • IR Range

    Up to 65' / 19.81m (depending on scene reflection)

  • IR LED Wavelength

    850 nm

  • IR Status

    IR On: under 10 lux, by CDS auto control

  • Electronic Shutter

    Auto (1/60 to 1/100,000 sec)

  • S/N Ratio

    More than 52 dB

  • Backlight Compensation

    Auto

  • White Balance

    Auto

  • AGC (Automatic Gain Control)

    Auto

  • Gamma

    0.45 typical

  • Scanning System

    2:1 interlace

  • Synchronization

    Internal

  • Video Signal Output

    1.0 Vpp / 75Ohms

  • Operating Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Water Resistance

    IP66

  • Maximum Power Consumption

    80 mA (IR off)
    300 mA (IR on)

  • Power Supply

    12 VDC (power supply not included)

  • Dimensions (W x H x L)

    2.75 x 2.5 x 6.7" / 69.85 x 63.50 x 170.18mm

  • Weight

    14oz / 396.89g

  • UPC Code

    030519015288

About Speco Technologies VLEDB2H

• 3.6mm fixed lens
• 1/3" 960H CCD
• 0 lux with 24 IR LEDs built-in
• 65' IR range (depending on scene reflection)
• IP66 compliant

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies VLEDB2H 960H Indoor/Outdoor Analog IR Bullet Camera with 3.6mm Fixed Lens
  • Speco Technologies 2 Year Limited Warranty
