StarTech 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall

SKU: STVS424HDPIP MFR: VS424HDPIP
Earn VIP Reward Points

Key Features

  • Create a video wall with this 4x4 HDMI matrix switcher, perfect for digital signage.
  • Enjoy wide compatibility with HDMI devices and resolutions up to 1920x1200 for crisp video.
  • Easily switch between four HDMI sources on four displays with reliable connections.
  • This HDMI video switcher supports 7.1 surround sound for an immersive audio experience.
  • Control your video distribution with the included remote, offering easy setup and operation.
  • Use the picture-in-picture multiviewer to monitor multiple HDMI inputs simultaneously.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech Matrix Switch Specifications

  • Audio

    Yes
    7.1 Surround Sound

  • Cabling

    HDMI

  • Output Signal

    HDMI

  • Ports

    4

  • Maximum Digital Resolutions

    1920x1200

  • Supported Resolutions

    1920x1200
    1920x1080
    1280x720
    640x480

  • Wide Screen Supported

    Yes

  • Connector A

    4x HDMI (19 pin) Female

  • Connector B

    4x HDMI (19 pin) Female

  • Connector Type

    1x DB-9 (9 pin; D-Sub) Male
    1x RJ-45 Female
    1x IrDA (Infrared; SIR/FIR)

  • LED Indicators

    1x Power LED
    1x Menu LED (OSD)
    2x Menu Operation LED (+ / -)
    4x Output Selection LED (A / B / C / D)
    4x Input Selection LED (1 / 2 / 3 / 4)
    1x Mode Selection LED (Matrix / Dual / Wall)
    1x Save LED
    1x Lock LED

  • Input Current

    1 A

  • Input Voltage

    100 to 240 AC

  • Output Current

    3 A

  • Output Voltage

    12 DC

  • Humidity

    20% - 90 % RH (non-condensing)

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Enclosure Type

    Aluminum

  • Certifications

    RoHS Compliant
    CE
    FC

  • Dimensions (H x L x W)

    1.9 x 17.2 x 9.8" (48.26 x 436.88 x 248.92mm)

  • Weight

    99.1 oz (2809.4g)

  • UPC Code

    065030858403

About StarTech Matrix Switch

While the VS424HDPIP 4X4 HDMI Matrix Switch with Picture-and-Picture (PAP) may appear to be a simple device, it is a powerful tool that allows you to seamlessly integrate and distribute four HDMI audio/video sources across four distinct HDMI displays. This device offers the unique capability to combine multiple images on a single display, enhancing your visual communication and presentation capabilities.

This HDMI Matrix Switch is designed to link four HDMI audio/video sources with four HDMI displays, providing a comprehensive visual experience. It allows you to output multiple inputs on the same display or mix-and-match inputs across multiple displays, offering a versatile and customizable viewing experience.

One of the key features of this device is its Full Matrix Picture-and-Picture support. This feature enables you to combine multiple inputs per individual display, saving cost and screen real estate. It supports video resolutions up to 1920x1200 / 1080p, ensuring high-quality visuals for your presentations or broadcasts.

The device offers a full matrix configuration supporting three different picture-and-picture modes per display: Matrix Mode (1x1), Dual Mode (2x1), and TV Wall Mode (4x1). This flexibility allows you to tailor your visual output to your specific needs and preferences.

The VS424HDPIP 4X4 HDMI Matrix Switch also includes remote control capabilities using RS232 (serial), Telnet (TCIP/IP Network), or IR (remote control included). This feature allows you to choose which audio source is outputted with your combined video sources, providing a seamless audio-visual experience.

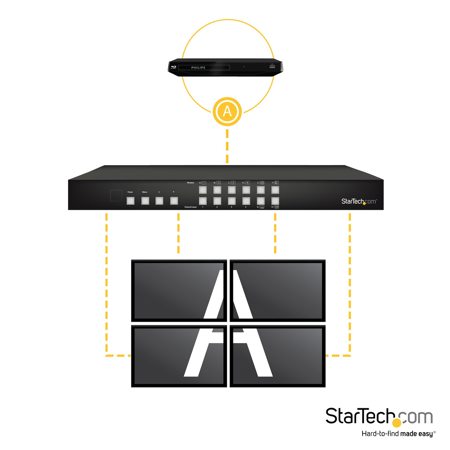

The device's split-screen multiplexing switch combines the flexibility of a matrix switch with the scalability of a video wall. This feature gives you the freedom to combine video sources on a single display or distribute different video combinations independently across four individual displays.

The VS424HDPIP is not just a video switch; it's a versatile tool that can enhance any video display application. Its picture-and-picture technology allows you to share up to four distinct images on the same screen, reducing the need for additional displays in your digital signage applications. This feature is particularly useful for security monitoring, where you can combine four video sources onto a single display for efficient viewing and broadcasting.

For easy and professional installation, mounting hardware is included with the device. Whether you're looking to improve collaboration in your boardroom, enhance your digital signage applications, or monitor multiple security sources simultaneously, the VS424HDPIP 4X4 HDMI Matrix Switch with Picture-and-Picture is a versatile and cost-effective solution.

StarTech Matrix Switch Features

  • Seamlessly integrates and distributes four HDMI audio/video sources across four HDMI displays
  • Offers full matrix configuration with three picture-and-picture modes: Matrix Mode (1x1), Dual Mode (2x1), and TV Wall Mode (4x1)
  • Supports high-quality video resolutions up to 1920x1200 / 1080p
  • Includes remote control capabilities using RS232 (serial), Telnet (TCIP/IP Network), or IR (remote control included)
  • Features split-screen multiplexing switch for combining video sources on a single display or distributing different video combinations across multiple displays
  • Comes with mounting hardware for professional and easy installation

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Create a video wall with this 4x4 HDMI matrix switcher, perfect for digital signage.
  • Enjoy wide compatibility with HDMI devices and resolutions up to 1920x1200 for crisp video.
  • Easily switch between four HDMI sources on four displays with reliable connections.
  • This HDMI video switcher supports 7.1 surround sound for an immersive audio experience.
  • Control your video distribution with the included remote, offering easy setup and operation.
  • Use the picture-in-picture multiviewer to monitor multiple HDMI inputs simultaneously.

What's in the box:

  • StarTech 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall
  • Remote Control
  • 2x Mounting Bracket
  • Universal Power Adapter (NA/UK/EU/AUS)
  • Instruction Manual
  • StarTech 2 Year Warranty
