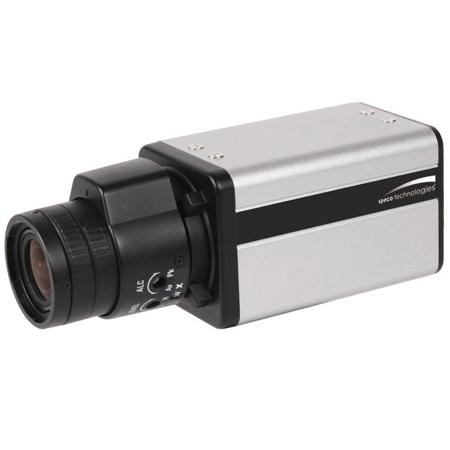

Speco Technologies WDRT6 690 TVL WDR Traditional Color Camera
See all Speco Technologies items

Speco Technologies WDRT6 690 TVL Wide Dynamic Range Day & Night Analog Traditional Color Camera, Accepts C & CS Type Lenses (Lens Not Included)

SKU: STWDRT6
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies WDRT6 Specifications

  • Image Sensor

    1/3" Pixim Seawolf DPS

  • Resolution

    690 TV lines

  • Minimum Illumination

    0.1 lux (sense-up 64x)

  • Effective Pixels

    758 (H) x 540 (V)

  • Electronic Shutter

    Max x64 (x2, x4, x8, x16, x32, x64)

  • Color Balance

    Multiple selectable factory presets for most common situations
    Full manual override for special applications

  • Video Output

    1.0Vp-p (sync.negative) termination 75Ohms + 10%

  • TV System

    NTSC

  • Scanning System

    Progressive

  • Synchronization

    Internal / External

  • S/N Ratio

    More than 52dB

  • Dynamic Range

    120dB (max.)

  • AGC Control

    0-50dB

  • Gamma

    0.45 typ.

  • Power Supply

    12VDC / 24VAC dual voltage operation
    (power supply not included)

  • Power Consumption

    190mA max.

  • Operating Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Dimensions (H x L x D)

    2.2 x 3.5 x 2" / 55.88 x 88.90 x 50.80mm

  • Weight

    10.6oz / 300.50g

  • UPC Code

    030519992640

About Speco Technologies WDRT6

• Accepts C & CS type lenses
• Newest WDR technology allows for improved image quality in scenes consisting of both bright and dark areas
• Each pixel processed independently for improved image
• High quality image even in low light conditions
• Sharpest quality analog image
• 12VDC / 24VAC dual voltage operation
• 5 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies WDRT6 690 TVL Wide Dynamic Range Day & Night Analog Traditional Color Camera
  • Speco Technologies 5 Year Limited Warranty
