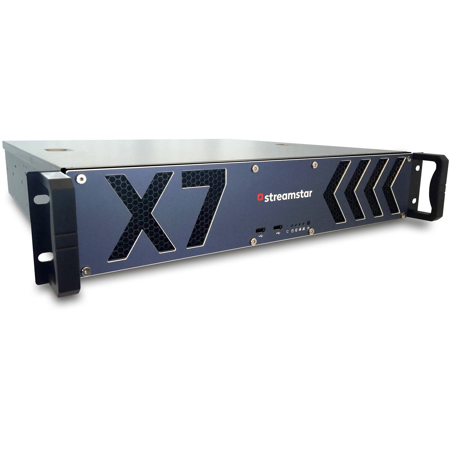

StreamStar X7 2U Rack 6 Camera Live Production Streaming Studio

SKU: STX7

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

StreamStar X7 Server Specifications

  • HD-SDI Input

    6

  • IP Video Stream Input

    6

  • NDI Input

    6

  • Ingest Input with Transparency

    NDI/IP

  • HD-SDI Output

    Yes

  • GPU Based HDMI Output

    Yes (Multiview grid/PGM)

  • HDMI Output (PGM)

    Yes

  • SDI/HDMI Embedded Audio

    Yes

  • Audio Monitor

    Yes

  • USB Audio Card Support

    Yes

  • All Channel Replays

    Yes

  • Slow Motion Replay Playback

    Yes

  • Media - Unlimited Playback

    Yes

  • Playlists Media Management System

    Yes

  • Realtime Camera Preview, Media, Graphics

    Yes

  • Switching/Mixing/PIP/Split Layouts

    Yes

  • External Multi-Screen

    Extended screen output using HDMI configurable to: Full PGM/4 Inputs grid/All 4 Inputs + PGM grid

  • Graphics DSK - Unlimited

    4 layers of DSK with full transparency support
    CG - Character generator output
    OVERLAYS - animations in .flv or images in .png format
    LOGO (BUG) - animations in .flv or images in .png format
    INGEST - HDMI/DVI/NDI input with keying

  • Internal Character Generator

    Yes (With Templates)

  • Recording

    ISO recording of all cameras in MPGEG2 Intraframe
    HD: MPEG2 at 18Mpbs or SD: MPEG2 at 8Mbps
    Simultaneous Stream Recording H.264 / MP4 at streaming settings

  • Live Streaming

    Up to 1080p at up to 10Mbps / RTMP (H.264 + AAC)

  • RTMP & MPEG-TS Simultaneous Output

    Yes

  • Audio Mixer

    Integrated, full featured audio mixer with monitoring, audio follow video, muting, peaking

  • Supported Video Input Formats

    720p25
    720p29.97
    720p30
    720p50
    720p59.94
    720p60
    1080p25
    1080p29.97
    1080p30
    SD

  • Video Processing

    Full 4:4:4:4 / ARGB / progressive video processing

  • Form Factor

    2RU rack-mount system

  • UPC Code

    8588005845250

About StreamStar X7 Server

Streamstar X7
6 channel, extreme performance, live production and streaming studio that delivers professional results at an affordable price. Packaged in a 2RU chassis, the system supports a variety of inputs and offers a full range of professional features including Streamstar's renowned replays and slomo on all channels, media playlists, a host of graphics capabilities, an internal character generator and of course the brilliant, intuitive, touch screen user interface.

• Intuitive and easy-to-use touch screen user interface
• 6x HD-SDI input
• 6x IP Stream input
• 6x NDI input
• 1x Ingest input for NDI with transparency
• IP Video Stream inputs from JVC streaming camcorders
• IP/NDI input for SCOREPLUS - scores, timers and titles app
• Integrated JVC camcorder remote control
• External signal ingest with keying (for PowerPoint, Keynote, Facebook, GoPro or even a smart phone camera)
• 1x HD-SDI video out
• 1x HDMI video out - PGM
• 1x HDMI/Display port video out - multiview or PGM
• Up to 1080p streaming at 10Mbps max
• RTMP & MPEG-TS simultaneous Output
• Cut/Crossfade/Transitions automated switching modes
• Instant replays with slow motion playback on all cameras
• Replay matrix playout system with playlists
• Dynamic replay camera switching
• AutoCut - automatic camera switching after replays or media
• Replay lead in/out animations
• Monetizing system with advertising statistics
• Ingest on/off Automation in replays
• Internal character generator with templates
• 4 layers of DSK - CG/images/animations with transparency
• Instant, unlimited video clips playback - No transcoding!
• Unlimited playlists - Media management/playout system
• PIP and Split screen layouts
• HD recording (PGM)
• ISO recording (all cameras)
• PGM stream recording (simultaneous)
• 2nd display multiview grid
• Multi framerate 50fps / 60fps operation
• True 4:4:4:4 ARGB video processing
• Full featured audio mixer
• Built-in Streamstar encoder
• Popular streaming platforms integration
• Facebook Live direct streaming integration

Note

Monitors and keyboard not included.
