Speco Technologies 8CH HD-TVI 1080p DVR System with 2TB HDD, 4x Bullet Camera
See all Speco Technologies items

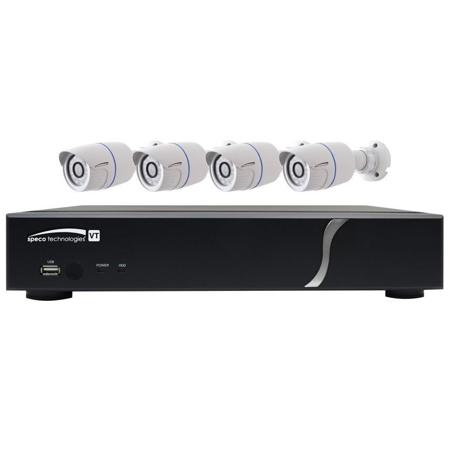

Speco Technologies 8CH HD-TVI H.264 1080p DVR System with 2TB HDD, Includes 4x Bullet Camera

SKU: STZIPT84B2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Speco Technologies DVR System Specifications

  • DVR Video: Input Channel

    8

  • DVR Video: Input Signal Distance

    Up to 1600' / 487.69m (depending on coax quality)

  • DVR Video: Input Level

    Composite 1.0Vp-p / 75Ohms

  • DVR Video: Input Signal Format

    NTSC / PAL

  • DVR Video: Input Loss Check

    Yes

  • DVR Video: HDMI Output

    1x HDMI (1024x768, 1280x720, 1280x1024, 1920x1080)

  • DVR Video: VGA Output

    1x VGA (1024x768, 1280x720, 1280x1024, 1920x1080)

  • DVR Video: CVBS / Spot

    1 main or 1 spot

  • DVR Audio: Input

    4 line

  • DVR Audio: Output

    1 line

  • DVR Audio: Codec

    G.711

  • DVR Alarm: Serial Input

    4 (NC/NO Selectable)

  • DVR Alarm Output

    1x alarm out by sensor, motion, video loss, HDD temperature and HDD failure

  • DVR Serial

    1x RS-485
    1x PTZ

  • DVR Recording Compression

    H.264

  • DVR Recording Multi-Operation

    QUADPLEX (play, record, network, backup)

  • DVR Recording Resolution

    1080p TVI(120 fps)
    720p TVI(240 fps)
    Analog: 960H(240fps)

  • DVR Recording Mode

    Continuous / Schedule / Motion / Sensor / Manual / Continuous + Motion / Continuous + Sensor

  • DVR Motion Detection

    Motion detection setup by grid

  • DVR Recording by Channel's Resolution

    Yes

  • DVR Pre-Recording

    Max. 20 seconds

  • DVR Post Recording

    Max. 60 seconds

  • DVR Playback: Multi-Decoding

    1, 4, 8

  • DVR Playback: Search Mode

    EZ Search, Smart (Museum) Search, Timeline, Event, Archive, Log

  • DVR Capacity of 1 HDD

    4TB

  • DVR Internal HDD Number

    2

  • DVR Interface Type

    Serial ATA

  • DVR Backup: USB Flash Drive

    Video & Still Image

  • DVR Backup: USB External HDD

    Video & Still Image

  • DVR Backup: Network

    Video & Still Image

  • DVR USB Port

    1x front, 1x rear

  • DVR Interface

    10/100Base-T

  • DVR Streaming

    CIF 15fps / channel max.

  • DVR Mobile Viewer

    Live, Search, PTZ, 2-Way Audio

  • DVR PC Web Viewer

    Internet Explorer, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup)

  • DVR PC Client

    SpecoTech Multi-Client Viewer and SecureGuard Plus CMS (Live, Search, Backup, PTZ, Remote Setup)

  • DVR MAC Client

    Speco Client for MAC and SecureGuard CMS (Live, Search, Backup, PTZ, Remote Setup)

  • DVR Digital Deterrent

    Default + up to 8 custom audio files

  • DVR Digital Zoom

    Yes

  • DVR DLS (Daylight Savings)

    Yes

  • DVR EZ Record

    Yes

  • DVR S.M.A.R.T

    Yes

  • DVR Internal Beep

    By video loss, HDD error

  • DVR Multi-Language

    English, French, Spanish

  • DVR Dynamic DNS

    Yes (free Speco DDNS)

  • DVR SW Upgrade

    USB and remote software upgrade

  • DVR Email Notification

    Yes

  • DVR NTP (Network Time Protocol)

    Yes

  • DVR Power Supply Voltage

    12VDC, 5A

  • DVR Allowable Operating Temperature

    41 to 104 deg. F / 5 to 40 deg. C

  • DVR Allowable Storage Temperature

    14 to 122 deg. F / -10 to 50 deg. C

  • Camera: Image Sensor

    1/3" 2MP CMOS

  • Camera: Resolution

    1080p/720p

  • Camera: Lens Diameter

    3.6mm fixed lens

  • Camera: Minimum Illumination

    0 lux at F2.0 (IR on) / 0.1 lux at F2.0 (IR off)

  • Camera: S/N Ratio

    50dB

  • Camera: Motion Detection

    Yes

  • Camera: Day/Night

    IR-cut filter

  • Camera: DNR

    2D/3D Automatic

  • Camera: Number of IR LEDs

    28

  • Camera: IR Range

    60' / 18.29m (depending on scene reflection)

  • Camera: Power Supply

    12VDC (power supply not included)

  • Camera: Power Consumption

    400mA (IR on)

  • Camera: Operating Temperature

    -4 to 104 deg. F / -20 to 40 deg. C

  • Dimensions

    DVR (W x H x D): 17 x 3.5 x 15.7" / 431.80 x 88.90 x 398.78mm
    Camera (Dia. x L): 2.5 x 7.2" / 63.50 x 182.88mm

  • Weight

    DVR: 3.3lbs / 1.50kg
    Camera: 9.6oz / 272.16g

About Speco Technologies DVR System

DVR

EZ Wizards
• Setup for quick system setup
• Network network setup and portforwarding
• Record quickly setup recording resolutions and recording type

EZ Search
Quickly search events from thumbnails

EZ Copy
Auto copy what you are playing onto a USB flash drive

• 1080p at 15fps / 720p at 30fps over coax (HD-TVI)
• Backwards compatible with all analog cameras
• Signal distance up to 1600 feet
• Video Out: 1 HDMI, 1 VGA, 1 CVBS
• H.264 video compression
• Networkable DVR with free Speco DDNS server
• Digital Deterrent supports up to 8 audio files for triggering during sensor or motion detection
• 2-way audio communication
• Built-in S.M.A.R.T. Technology (Self-Monitoring, Analysis and Reporting Technology for HDD)
• 8 channel audio recording
• Covert camera operation provides enhanced security and administrator control
• Password to secure installation authorization
• Switch between low and high quality stream during simultaneous Continuous +
• Motion or Continuous + Sensor recording modes for storage optimization
• Smart (Museum) Search - Quickly search for a specific video event without the need for motion setup.
• Instant and convenient backup via USB flash drive or network
• Supports multiple PC based browsers such as Internet Explorer, Google Chrome, Firefox and Safari
• Simultaneous playback/record while continuing to network transfer or backup
• User Access: up to 4 concurrent users for live viewing, 1 user for playback
• Remote monitoring / recording / playback / configuration / software upgrades and PTZ control via internet
• Network accessible via SpecoTech Multi-Client Software, Secure Guard,
• Web-Viewer and Speco Player Mobile Viewer
• Mass alert notification via Twitter
• Cloud upload for events via Google Drive
• PC and MAC compatible
• IR remote control and mouse included
• 3 year warranty

Camera
• HD-TVI 1080p @ 30fps
• 3.6mm fixed lens
• Weather resistant
• IP66 compliant
• 2 year warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Speco Technologies 8CH HD-TVI H.264 1080p DVR
  • 4x Bullet Camera
  • IR Remote Control
  • Mouse
  • Speco Technologies 3 Year Warranty for DVR
  • Speco Technologies 2 year Warranty for Camera
