SunwayFoto CR-3015A 360 Degree VR Panoramic Tripod Head Kit

SKU: SUCR3015A MFR: CR-3015A
Earn VIP Reward Points

Key Features

  • Capture stunning 360° panoramas with this SunwayFoto panoramic tripod head kit.
  • Achieve precise alignment for seamless VR photography using the indexing rotator.
  • Enjoy smooth panning for video and photography with this solid build tripod head.
  • Supports up to 17.6 lbs, making it ideal for various camera and lens combinations.
  • Compact design (2.6 lbs) ensures easy portability for on-location photography shoots.
  • Quickly mount cameras with the Arca-compatible QR clamp for efficient workflow.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$19.99

2 Year

$29.99

3 Year

$39.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SunwayFoto CR-3015A Specifications

Tripod Head

Tripod Head

Jump to...
  • Material

    Aluminum

  • Camera Mounting Screw Thread

    UNC 1/4" - 20

  • Base Screw Thread

    UNC 3/8"-16

  • Load Capacity

    17.6 lbs (8kg)

  • Base Diameter

    2.5" (64mm)

  • Dimensions (L x H)

    7 x 10.4" (180 x 266mm)

  • Weight

    2.6 lbs (1.18kg)

Rotator Panning Clamp

Jump to...
  • Bottom-thread

    UNC 3/8"-16

  • Max-load

    44 lbs (20kg)

  • Top Base Diameter

    2.5" (64mm)

  • Height

    1" (27mm)

  • UPC Code

    6952512509837

Models
SunwayFoto CR-3015A 360 Degree VR Panoramic Tripod Head Kit
$240.00

Special Order

Generally ships in 7-14 days, subject to availability

SunwayFoto CR-3015 720 Degree Panorama Matrix Splicing Aluminum Ball Head
$240.00

Special Order

Generally ships in 7-14 days, subject to availability

SunwayFoto Geared Panning Clamp with Pro Geared Head for Photographers
$434.95

Special Order

Generally ships in 7-14 days, subject to availability

Maximum Load Capacity11 to 20 lbs11 to 20 lbs11 to 20 lbs
FunctionPan / TiltPan / TiltPan / Tilt
OperationManualManualManual

About SunwayFoto CR-3015A

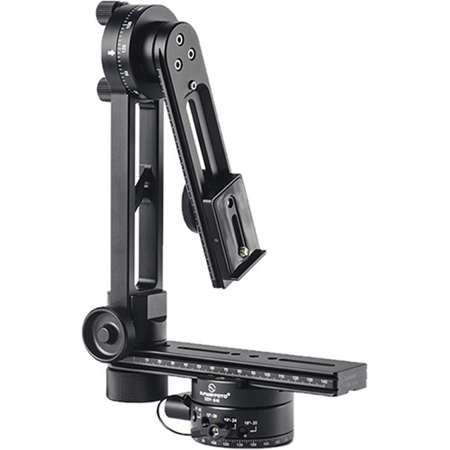

Because capturing the perfect panoramic shot requires precision and flexibility, the Sunwayfoto CR-3015A 360 Degree VR Panoramic Tripod Head Kit is expertly designed to meet these needs. This versatile and sturdy tripod head is dedicated to 360-degree VR panoramic photography, making it an ideal choice for multi-row panoramas.

Crafted from durable aluminum alloy, this compact tripod head is both lightweight and robust. It features both horizontal and vertical rotators, each offering four detent stop options for optimal accuracy and convenience in panoramic shooting. This allows for easy rotation of the head, providing seamless panorama shooting.

The Sunwayfoto CR-3015A 360 Degree VR Panoramic Tripod Head Kit weighs just over 1kg, making it portable and easy to handle. Despite its light weight, it boasts a maximum load capacity of 8kg, accommodating a wide range of camera and lens combinations.

The vertical indexing rotator offers adjustable stops at intervals of 5, 15, 30, and 45 degrees, or can be set for free non-stop vertical tilting. Similarly, the horizontal indexing rotator provides stops at intervals of 8, 12, 15, and 18 degrees, or can be set for free non-stop panning.

Included in the kit is the Sunwayfoto IRC-64 Panoramic Indexing Rotator Panning Clamp. This Arca-type compatible panning clamp can be attached directly to your tripod or on top of your ball head. The clamp rotates a full 360 degrees, with laser-engraved index marks for precise panning between shots.

The IRC-64 features safety stop relief grooves to secure your camera plate and prevent unwanted movement, as well as a bulls-eye bubble level for visual confirmation of camera leveling. With its all-metal construction and glossy black anodized finish, this tripod head kit is not only functional but also aesthetically pleasing.

In conclusion, the Sunwayfoto CR-3015A 360 Degree VR Panoramic Tripod Head Kit offers the durability, versatility, and precision needed for professional panoramic photography.

SunwayFoto CR-3015A Features

  • 360 Degree VR Panoramic Tripod Head Features
  • Indexing rotators on both horizontal and vertical planes for quick and precise positioning
  • Camera quick-release plate equipped with backstop ridge to avoid twisting of camera
  • Easy rotation of the vertical rail by 180 Degree for clear Nadir shooting
  • The vertical rail and the horizontal rail are tightened together by the vertical lock-knob
  • Light weight design, simple structure and easy transport
  • IRC-64 Panoramic Indexing Rotator Panning Clamp Features
  • Grooves in the clamp act as a safety stop so that your plate will not slide out of the clamp while you adjust your camera fore and aft
  • A long-stemmed clamp locking-knob allows you to use wide plates or cameras and still be able to access the knob
  • The aligned scale on the jaw is for accurately controlling the nodal point during panoramic photography for different focal lengths
  • Rotating built-in degree dial with 5-degree detent click-stop increments of 0, 4, 8, 12, & 24, and degrees of 0, 15, 30, 45, & 90
  • The panning base lock knob allows you to lock the base for each exposure
  • A bulls-eye bubble level allows you to level your camera on both the horizontal and vertical axes

Warranty Information

This product has a limited warranty of 72 months.

Key Features

  • Capture stunning 360° panoramas with this SunwayFoto panoramic tripod head kit.
  • Achieve precise alignment for seamless VR photography using the indexing rotator.
  • Enjoy smooth panning for video and photography with this solid build tripod head.
  • Supports up to 17.6 lbs, making it ideal for various camera and lens combinations.
  • Compact design (2.6 lbs) ensures easy portability for on-location photography shoots.
  • Quickly mount cameras with the Arca-compatible QR clamp for efficient workflow.

What's in the box:

  • SunwayFoto CR-3015A 360 Degree VR Panoramic Tripod Head
  • IRC-64 Indexing Rotator with QR Clamp
  • Horizontal Rail Lock-Knob
  • Horizontal Rail
  • 1/4" Bushing TN-2
  • 2x Safety Stop Screw
  • 2.5mm Wrench
  • 4mm Wrench
  • Cleaning Cloth
  • User Manual
  • SunwayFoto 6 Year Limited Warranty
