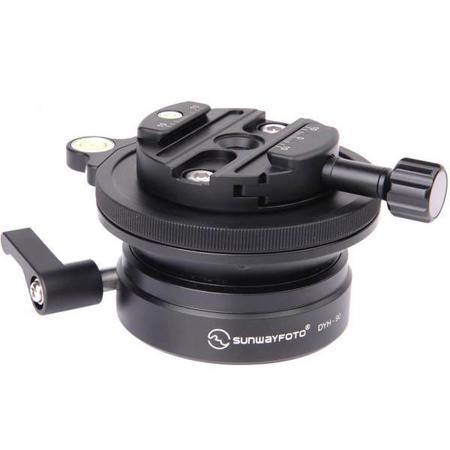

SunwayFoto DYH-90i Leveling Base with DDY-64iL Discal Clamp

DYH-90I
SUNWAYFOTO DYH-90i Leveling Base adopt CNC cutting machine from light weight aircraft-grade aluminum, stain anodized surface finish for better abrasion and corrosion resistant. Come with 90mm diameter platform, sturdy construction, up to 15kg max load capacity and super smooth fluid of adjust movement to +/-16 degree. It is ideal for medium/large format camera.

• Offset bubble level
• CNC machined from light weight aircraft grade aluminum
• Satin anodized surface - provides improved abrasion and corrosion resistance
• Built-in circular spirit level
• Super smooth fluid movement. Adjust to +/- 16deg
• 90mm diameter platform, sturdy construction, up to 15kg max load
• Perfect for 45, 57 and 810 cameras
• Four mounting holes on the top of the levelling base for mounting clamps, Left: DYH-90i & DDY-64iL
• Four mounting holes on the top of the levelling base for mounting clamps, Left: DYH-90i & DLC-60L

Note:

The base lockingCaptive Knob can be adjusted at different positions. If the Captive Locking Knob Lever interferes with other equipment when turned, you may pull out the knob and relocate it in a more convenient position.

DDY-64IL
SUNWAYFOTO DDY-64iL Discal Clamp, CNC cutting machine from light weight aircraft-grade aluminum, stain anodized surface finish for better abrasion and corrosion resistant. Compatible with all Arca-Swiss style plates.

• Hollow out design, lighter
• Safety stop relief grooves for protecting your camera from accident drops
• UNC3/8" mounting thread, can mount on tripod or monopod directly
• Using two 1/4 camera screws, can be installed onto the top of indexing rotator DDP-64M/DDP-64S and leveling base DYH-90/DYH-90R for mounting camera quickly and conveniently
• Ideal for ARCA-SWISS PO head
• With the elongated knob, wide plates or cameras wont prevent you from manipulating the screw knob, because the knob wont be hidden under the plate/camera to hit the knob
• Very versatile Jaw opening range of 37.25mm to 41.5mm will be compatible with Arca Swiss, Really right stuff, Wimberley, Jobu Design, Kirk Enterprises, Markins, Giottos, Benro, Feisol, Novo flex etc
• 3/8" Mouting Thread and a 3/8" to 1/4" Bushing Reducer included
• Mounted on ball head
• Can be mounted on DDP-64M
