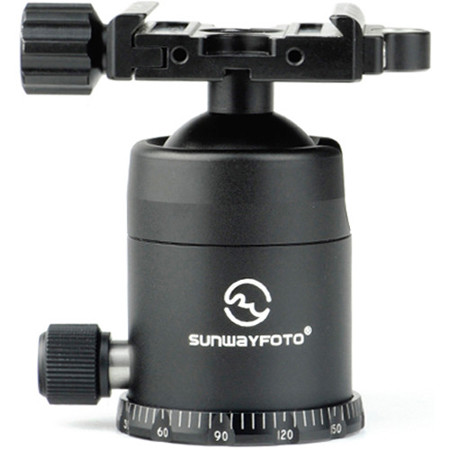

SunwayFoto FB Series Classic Ballhead with Screw Knob Clamp, 39.68lbs Capacity

• CNC machined from light weight aircraft grade aluminum
• Stain anodized surface - provides improved abrasion and corrosion resistance
• Equipped with a DDC-42i, perfect for wide cameras or plates
• Single Notch design. Easily moves from landscape mode to portrait mode
• The improved closer spherical form makes the resistance increased while the ball is sliding to the side and also avoids accidental slide down of the ball
• The bottom thread is 3/8"-16. If your threaded stud on the top of the tripod is 1/4"-20, please install a bushing reducer 3/8" - 1/4"
• Optimized design effectively reduces weight and at the same time guarantees its stability; Min height of the ball head is only 66mm
• FB-36III assembled on the T1C40T Tripod
• Folding back to be carried in bag conveniently

Friction Adjustment
To set the friction, either remove your camera or hold it in place.
1. Loosen the main locking knob(using your thumb or friction tool FT-01 by turning anti-clockwise
2. Tighten the main locking knob to your preferred amount of resistance
3. Turn the friction knob with your thumb or friction tool FT-01 clockwise until it stops

Caution
When there is a camera loaded on the ballhead and the main knob is loosened up, DO NOT loosen the friction knob at the same time, otherwise the ballhead will drop all of a sudden and may cause damage to the camera.
