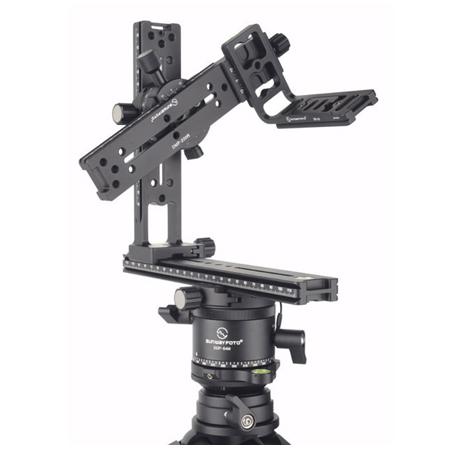

SunwayFoto PANO-1 Panoramic Head Kit, DYH-66i Base, DDP-64M Rotator, 64mm/58mm Clamp, DPG-2416 Rail, DMP-200L Slide, DDH-03 Clamp, DMC-200L Rail, DPL-01 Plate

SKU: SUNPANO1 MFR: PANO-1
Earn VIP Reward Points

Key Features

  • Create stunning panoramas with the SunwayFoto panoramic head kit, designed for precise alignment.
  • Achieve perfectly level horizons using the DYH-66i leveling base for landscape photography.
  • Enjoy smooth panning for video or photography with the included indexing rotator & discal clamp.
  • The Arca-Swiss compatible clamps and plates offer versatile mounting for your camera setup.
  • Capture multi-row panoramas using the nodal slide and multi-purpose rails for complete scenes.
  • Built tough, this solid build tripod head supports up to 22 lbs, ideal for heavy camera gear.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-10-04T18:02:34

Rated 5 out of 5

Well made and stable.

Well machined appears very stable and is capable of securing a D850 and sigma 14 - 24 Art. Assembly instructions could have been better. Almost infinitive adjustments and angles. Have not seen nor purchased this brand before but with adorama’s great return policy I took a calculated risk and I am glad that I did. I would buy this again.

ALAN H.

2016-09-02T13:24:07

Rated 4 out of 5

Great solution at this price point

Comparing the SunwayFoto Pano1 to products in the same capacity/rigidity range, it compares well. It has two big advantages over other products: It comes in at a favorable price compared to other players in the field, and it includes a leveling head component at that price. The East/West (horizontal) capacity is greater than most of the others, so if you are trying to use this for a 6x7 or other wide medium format it might be your first choice. I see the tilt axis as being maybe a bit fussy - users need to make sure that the single mounting screw stays tight, and the vertical rail may not be quite as rigid to the rig as competitors so it may require gentle use to avoid slippage, but at this price point I think it is a good compromise for a hobbyist or professional to get involved in equirectangular panoramic photography at a bearable price point and not have to buy a more expensive rig later. I can't speak to mfr product support - this is manufactured off-shore. If I were solidly in the pro panoramic market i would go with the Nodal Ninja which is a bit more rigid and has superb customer support in Arizona, but these are also not complicated devices - your tolerance and ingenuity at working around potential problems could save you some money over the more polished US-made product.

Mark W.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SunwayFoto PANO-1 Specifications

  • DYH-66i: Load Capacity

    22 lb (10 kg)

  • DYH-66i: Quick Release

    No, 1/4"-20 thread

  • DYH-66i: Spirit Level

    Yes

  • DYH-66i: Tension Control

    No

  • DYH-66i: Separate Panning Lock

    No

  • DYH-66i: Tripod Mount Thread Size

    3/8"-16

  • DYH-66i: Height

    1.65" (4.2 cm)

  • DYH-66i: Maximum Diameter

    Platform: 2.59" (6.6 cm)
    Base: 2.36" (6 cm)

  • DDP-64M: Load Capacity

    22.04 lbs / 10 kg

  • DDP-64M: Thread Size

    3/8"-16 (1/4"-20 adapter bushing is included)

  • DDY-64I: Clamp

    Screw-knob

  • DDY-64I: Thread

    UNC3/8"

  • DPG-2416: Screw

    1/4"-20

  • DPG-2416: Mounting Thread

    UNC 1/4"

  • DPG-2416: Length

    9.44" (240 mm)
    Groove length: 2.5"/3" (64 mm/76.5 mm)

  • DMP-200L: Mounting hole

    UNC1/4"-20

  • DMP-200L: Clamp Style

    Lever-release

  • DDH-03: Diameter

    Top Base Diameter: 2.3" (58 mm)
    Pan Base Diameter: 2.2" (57 mm)

  • DDH-03: Load Capacity

    44.1lbs (20 kg)

  • DDH-03: Mounting Thread

    3/8"-16

  • DDH-03: Plate Type

    Bottom AM-02 arca-swiss plate

  • DDH-03: Height

    1.0" (26 mm)

  • DDY-58: Thickness

    0.61" (15.5 mm)

  • DDY-58: Clamp

    Screw-knob

  • DDY-58: Thread

    UNC3/8"-16

  • DMC-200L: Screw

    1/4"-20

  • DMC-200L: Clamp

    Lever Release

  • DPL-01: Mounting Hole

    1/4"-20

  • DPL-01: Length

    Horizontal: 4.33" / 110mm
    Vertical: 3.14" / 80mm

  • DPL-01: Width

    39mm / 1.53"

  • Kit: Maximum Load

    22.04 lbs / 10 kg

  • Dimensions

    DMC-200L: 200 x 68 x 39mm / 7.87 x 2.67 x 1.53"
    DDY-58 (Dia. x L): 58 x 75mm / 2.28 x 2.95"
    DMP-200: 39 x 215mm / 1.53 x 8.46"
    DPG-2416 (W x H): 39 x 16mm / 1.53 x 0.62"
    DDY-64I (Dia. x L x H): 64 x 81 x 15.5mm / 2.51 x 3.18 x 0.61"
    DDP-64M (H x Dia.): 46 x 64mm / 1.81 x 2.51"

  • Weight

    Kit: 3.31lbs / 1.50kg
    DDY-58: 2.29oz / 64.92g
    DDH-03: 4.4oz / 124.7g
    DMP-200L: 190g / 6.70oz
    DPG-2416: 6.84oz / 193.91g
    DDY-64I: 2.82oz/ 80g
    DDP-64M: 11.64oz / 330g
    DYH-66i: 10.22oz / 289.73g
    DMC-200L: 200g / 7.05oz
    DPL-01: 75g / 2.64oz

  • UPC Code

    6952512502142

About SunwayFoto PANO-1

FEATURED REVIEWS

Well made and stable.

By ALAN H.

Well machined appears very stable and is capable of securing a D850 and sigma 14 - 24 Art. Assembly instructions could have been better. Almost infinitive adjustments and angles. Have not seen nor purchased this brand before but with adorama’s great return policy I took a calculated risk and I am glad that I did. I would buy this again.

The SunwayFoto PANO-1 Panoramic Head Kit is a meticulously engineered collection of eight high-quality components, designed to facilitate the creation of stunning panoramic photographs with professional precision. This comprehensive kit includes the DYH-66i Leveling Base, DDP-64S Indexing Rotator, DDY-64i Discal Clamp, DPG-2416 Multi-Purpose Rails, DMP-200L Nodal Slide, DDH-03 Panning Clamp, DDY-58 Discal Clamp, and DMC-200L Vertical Clamp, all crafted to work seamlessly together for an exceptional panoramic experience.

The robust DYH-66i Leveling Base is capable of supporting up to 66 lb, showcasing a sturdy construction that ensures stability for your equipment. It features a convenient offset bubble level for precise alignment and is CNC-machined from high-grade aluminum alloy, finished with an anodizing process for a durable, low-maintenance surface.

The DDP-64S Indexing Rotator stands out with its four selectable click-stop options (18, 30, 45, and 90 degrees), making it versatile for various panoramic requirements, including full 360 x 180-degree spherical or HDR panoramas. Its 64mm diameter footprint is optimized for ultra-wide fisheye lenses. The rotator's fluid motion and the ability to change click stops on-the-fly cater to the needs of professional photographers who demand quick and precise adjustments during time-sensitive shoots.

Both the DDY-64i and DDY-58 Discal Clamps are precision CNC machined and compatible with all Arca-Swiss standard quick-release plates. Their secure mounting options, either via a Metric 6 flat head screw or a 3/8" threaded post, provide versatility for attaching to various ballheads.

The DPG-2416 Multi-Purpose Rail, with its 240mm length, is ideal for medium-format cameras, offering extensive back/front shifting adjustments. This rail is equipped with a high-contrast bubble level and a laser-engraved reference scale with 1mm increments on both sides, allowing for meticulous and geared fine-tuning.

The DMP-200L Nodal Slide and DMC-200L Vertical Clamp further enhance the kit's functionality, offering additional adjustment capabilities and secure camera positioning. The DDH-03 Panning Clamp adds another layer of control with its smooth panning mechanism.

Together, these components form the SunwayFoto PANO-1 Panoramic Head Kit, a durable, sturdy, and versatile solution for both hobbyists and professionals looking to capture expansive, high-quality panoramic images with ease and precision. Whether you're venturing into equirectangular panoramic photography or seeking a reliable panoramic head kit for your next project, the SunwayFoto PANO-1 is a comprehensive choice that delivers exceptional performance.

SunwayFoto PANO-1 Features

  • Professional-grade panoramic head kit with 8 precision components for advanced photography
  • DYH-66i Leveling Base supports up to 66 lb for stable, precise camera alignment
  • DDP-64S Indexing Rotator with selectable click-stops for versatile panoramic captures
  • Multi-Purpose DPG-2416 Rail with laser-engraved scale for accurate adjustments
  • Compatible with Arca-Swiss standard quick-release plates for seamless camera mounting
  • CNC-machined aluminum alloy construction for durability and long-lasting use

Warranty Information

This product has a limited warranty of 72 months.

Key Features

  • Create stunning panoramas with the SunwayFoto panoramic head kit, designed for precise alignment.
  • Achieve perfectly level horizons using the DYH-66i leveling base for landscape photography.
  • Enjoy smooth panning for video or photography with the included indexing rotator & discal clamp.
  • The Arca-Swiss compatible clamps and plates offer versatile mounting for your camera setup.
  • Capture multi-row panoramas using the nodal slide and multi-purpose rails for complete scenes.
  • Built tough, this solid build tripod head supports up to 22 lbs, ideal for heavy camera gear.

What's in the box:

  • SunwayFoto DYH-66i Leveling Base
  • DDP-64M Indexing Rotator
  • DDY-64i Discal Clamp
  • DPG-2416 Multi-Purpose Rails
  • DMP-200L Nodal Slide
  • DDH-03 Panning Clamp
  • DDY-58 Discal Clamp
  • DMC-200 Vertical Clamp
  • DPL-01 L Bracket
  • SunwayFoto 6 Year Limited Warranty
